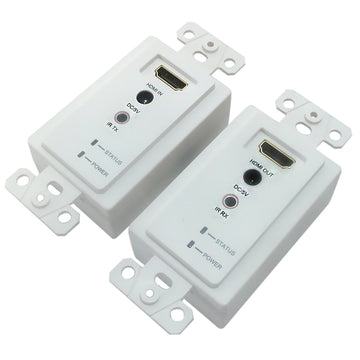

This HDMI single Cat5e/6 wall plate video extender allows you to extend your HD display up to 190ft (60 meters) and keeps your cables hidden behind walls. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices. Power is required at both the transmitter and receiver units.
| Physical Characteristics | |
|---|---|
| Color | White |
| Wall Plate Size | Single Gang |
| Dimensions (LxWxH) | 115x70x35mm |
| Operating Temperature Range | -5℃ ~ 35℃ |
| Power | |
| Power Supply | DC 5 volts p-p(TTL) |
| Power Consumption | 3 Watts (maximum) |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | No |
| DVD to TV | Yes |
| Connector(s) | |
| Transmitter | HDMI Female (Input), RJ45 Ethernet interface, IR (3.5 mm) in/out, 5V DC in |
| Receiver | HDMI Female (Output), RJ45 Ethernet interface, IR (3.5 mm) in/out, 5V DC in |
| Performance | |
| Video Format | DTV/HDTV: 480i/ 567i/ 480p/ 567P/ 720p/ 1080i/ 1080p@60Hz 3D video format |
| Video Bandwidth | Maximum TMDS clock frequency 165Mhz (4.95Gbps) |
| Transmission Range | 1080p 8-bit 30m (maximum); 1080p 12-bit 25m (maximum) over CAT5E/CAT6 / 24AWG/ Solid (recommended to use 23AWG Cat6 cable) |
| Audio | 8-channel, supports Dolby True HD and DTS Master |
| HDCP Compliant | Yes |
| Bi-direction remote | Yes |
| CEC pass through | Yes |
| EDID Call Back | Yes |
| Indicator Light | Power Green, video link yellow |
| Remote IR | Wavelength: 940nm, Frequency: 38KHz |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 1 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 Transmitter |
| 1 Receiver | |
| 2 - 5V DC 1A Power Adapter 2 IR Blaster (with 3m cable) 2 IR Receiver Cables (with 3m cable) 2 Single Gang Decora Wall Plates White with hardware |
|
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VE-HDMI-011 | 1.0 lb |
