Description

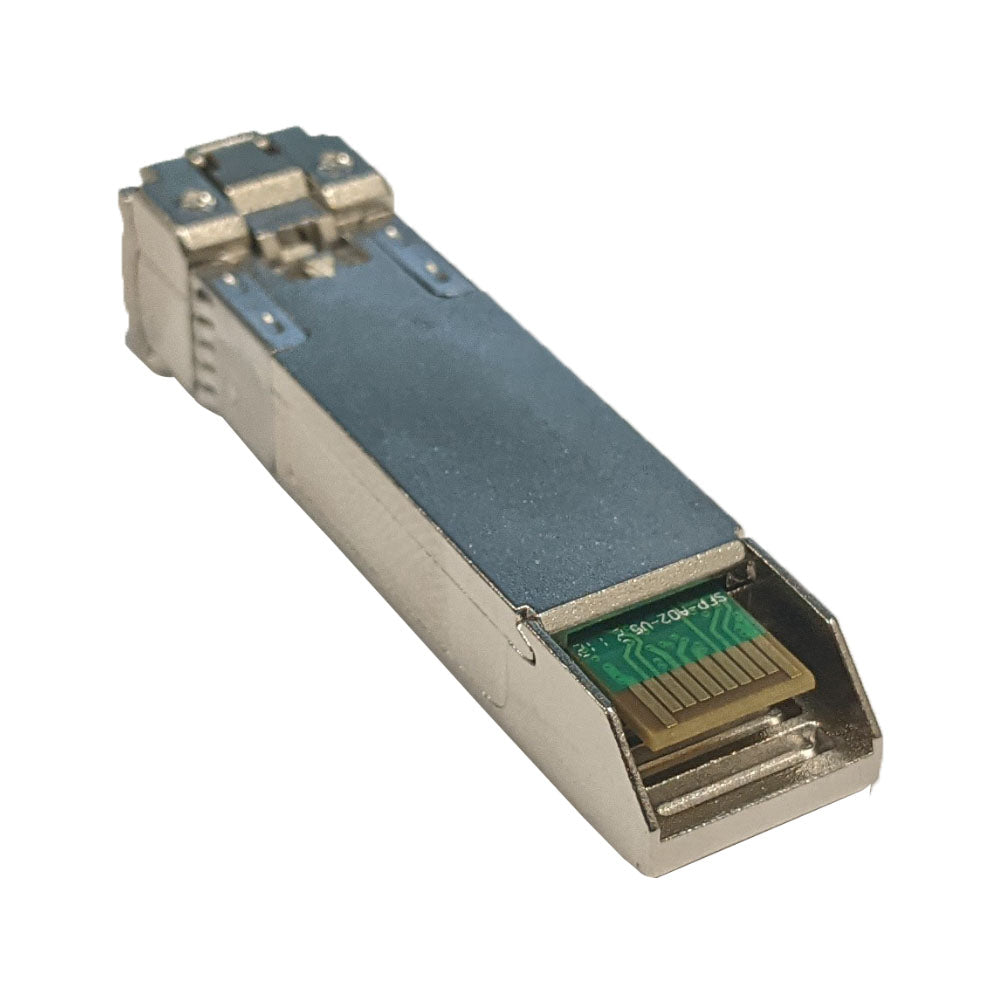

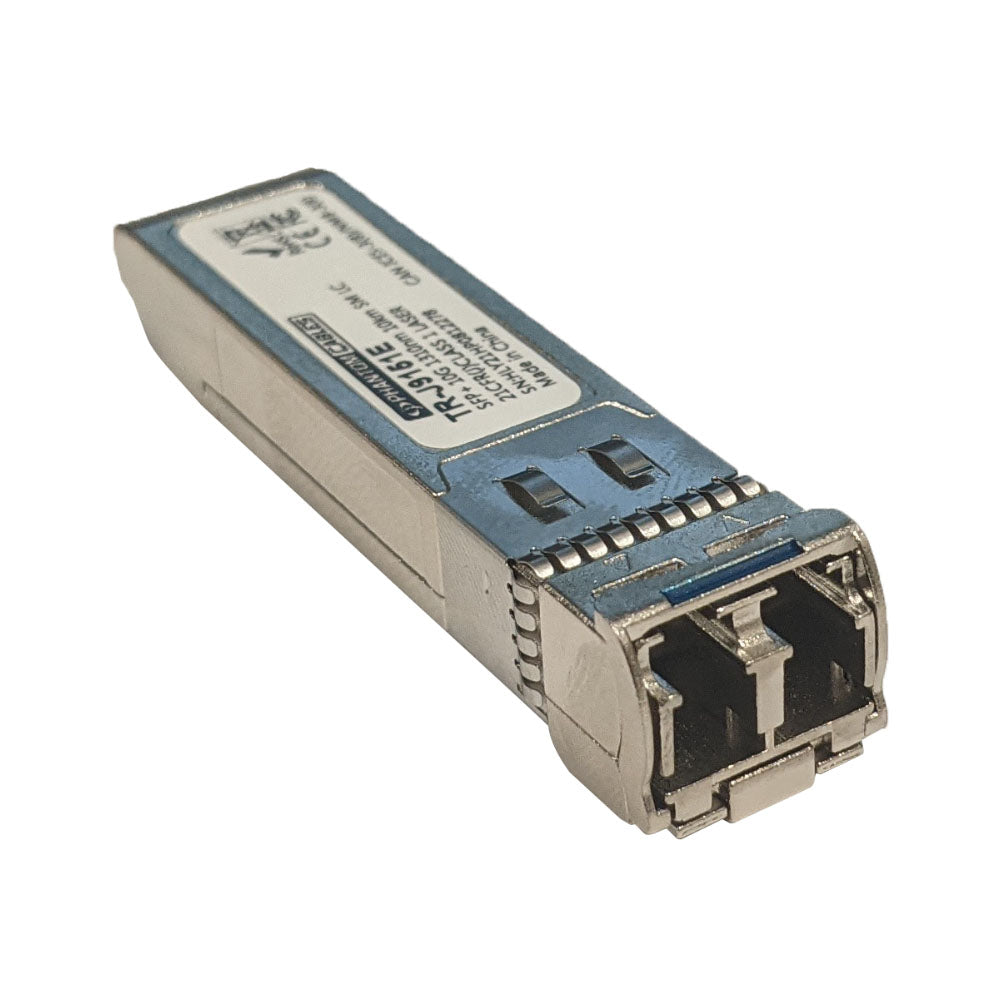

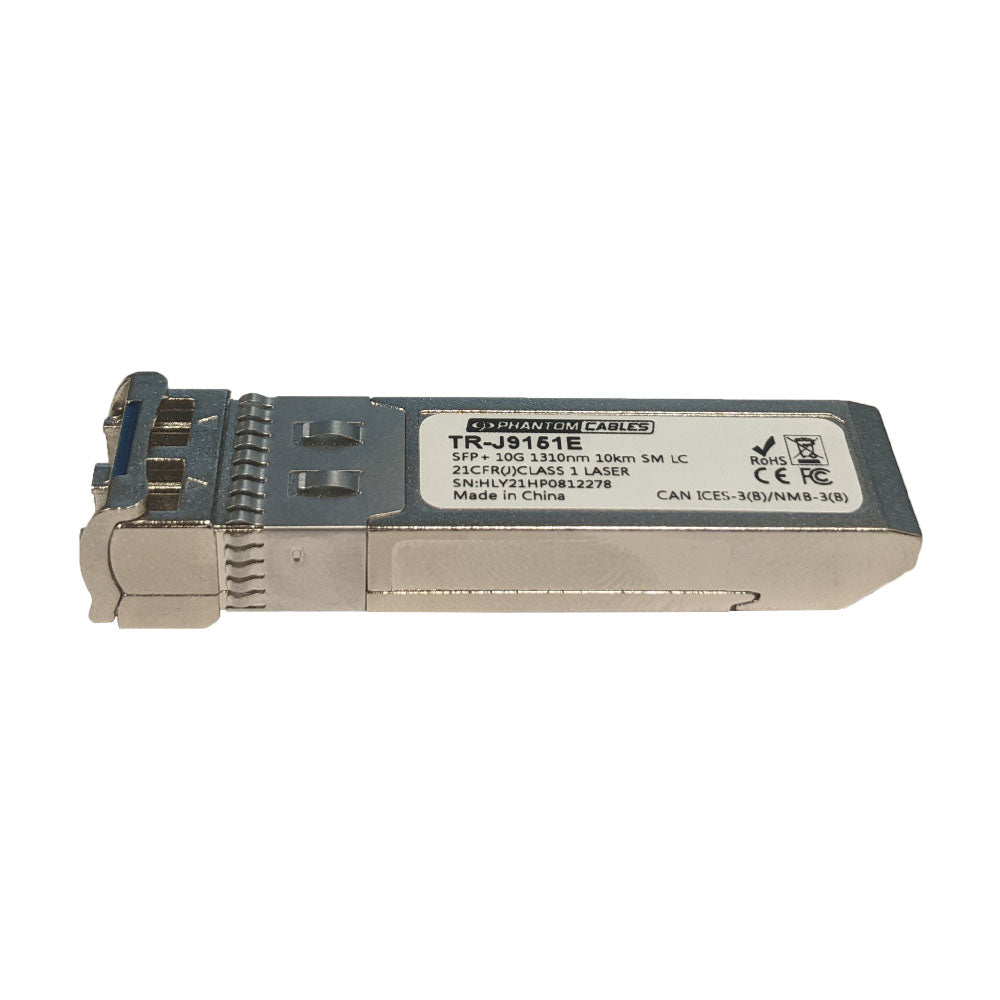

This is a Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
HP and the HP logo are trademarks or registered trademarks of Hewlett-Packard Development Company, L.P.. This product is not certified or endorsed by Hewlett-Packard.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 100°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 10GBase-LR Singlemode Fiber | |
| Maximum Transmission Distance | 10km |
|
| Wave Length | 1310nm | |
| DDM Support | Yes | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-J9151E | 0.08 lb |
