Description

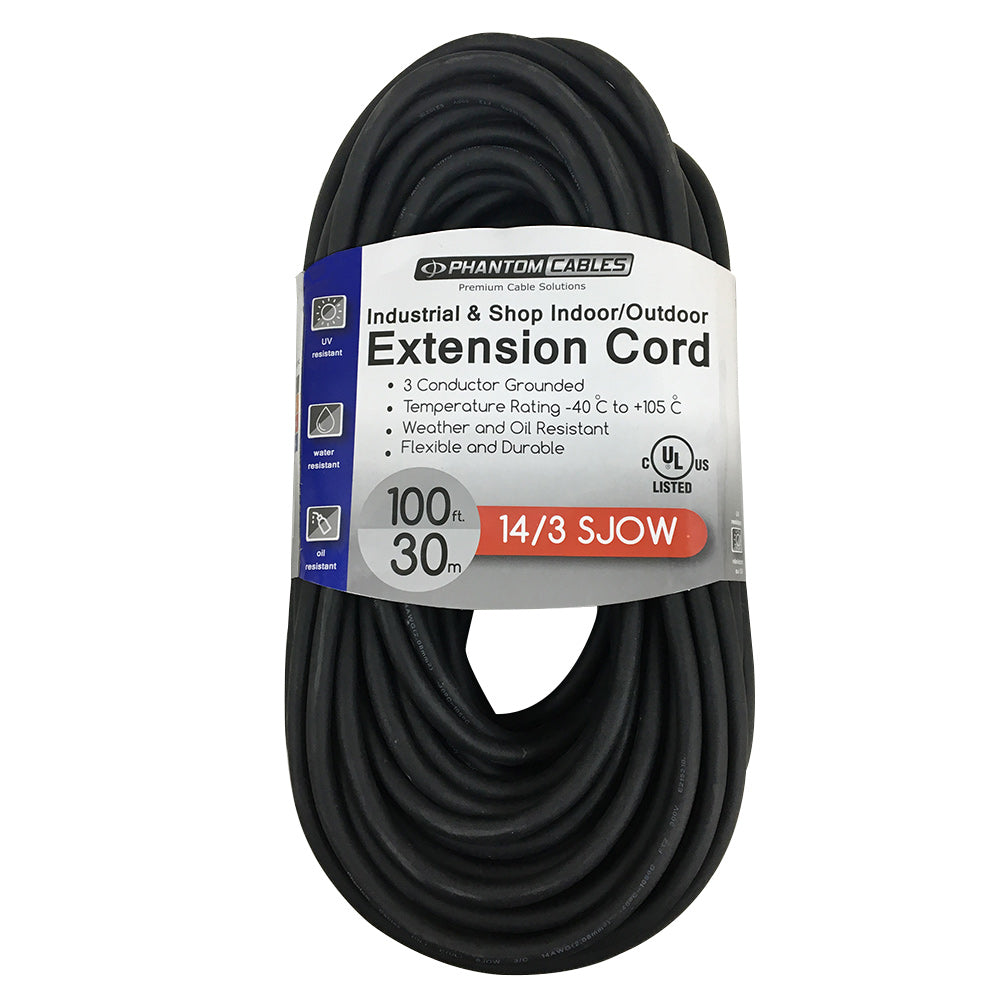

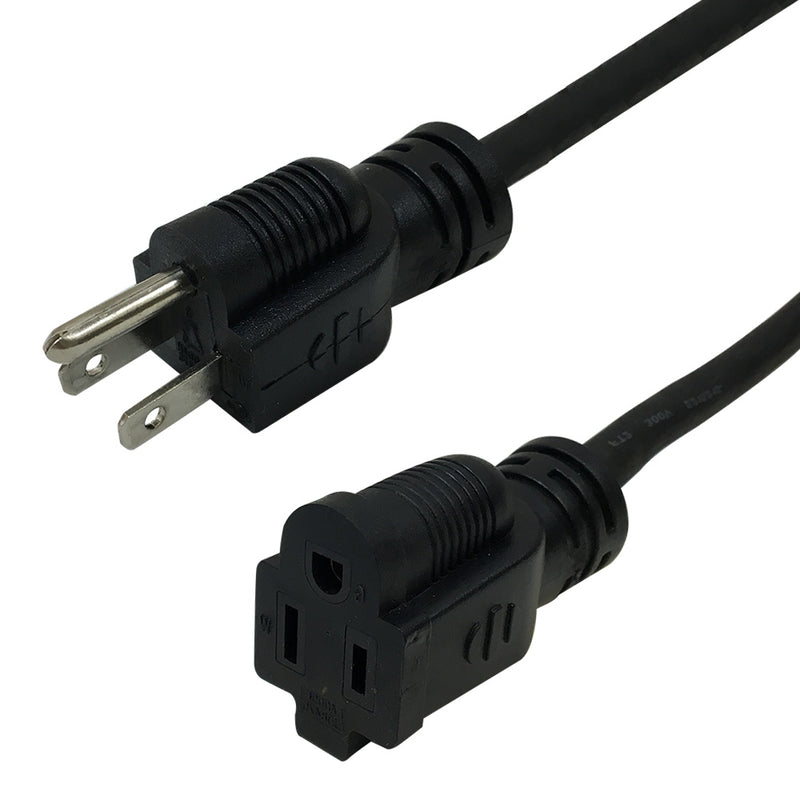

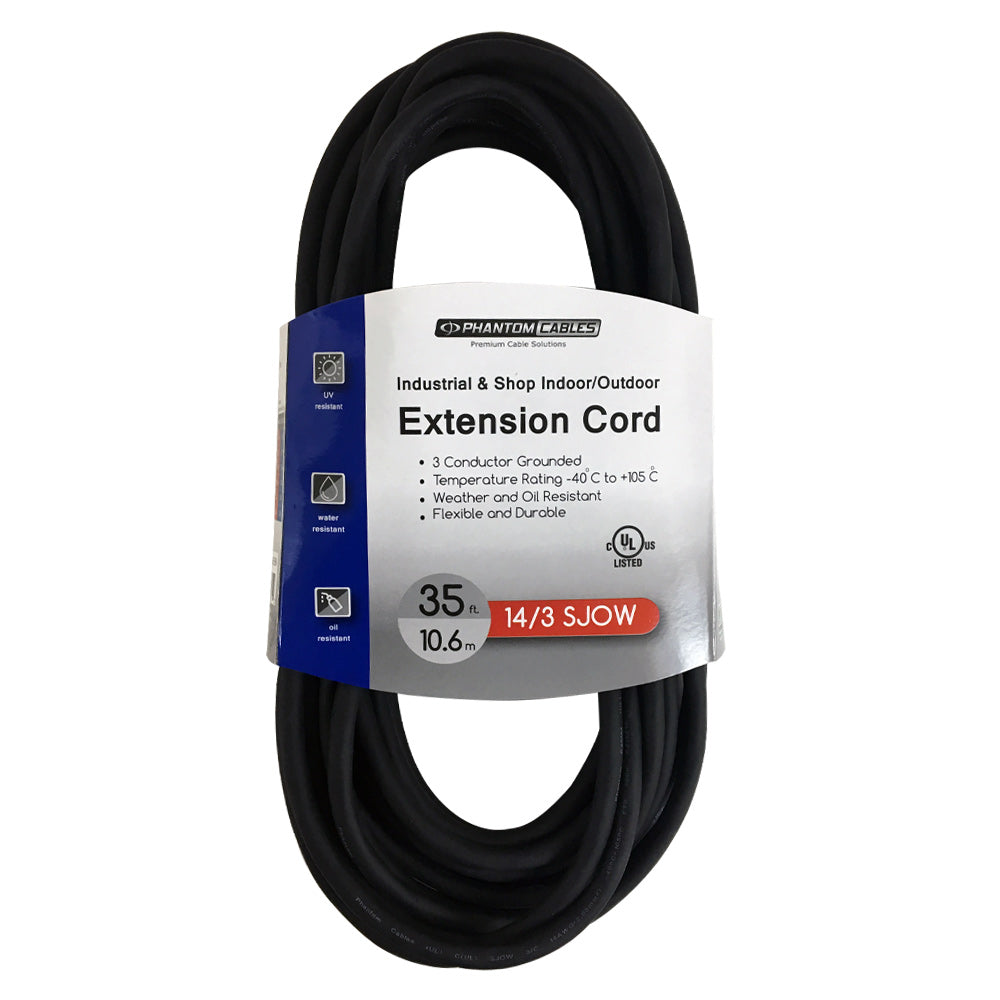

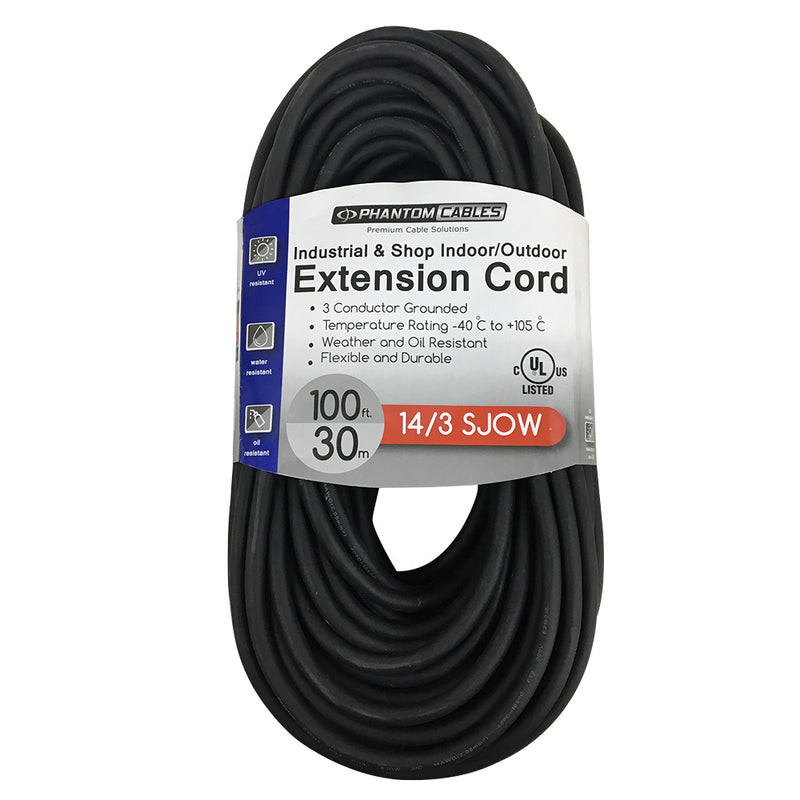

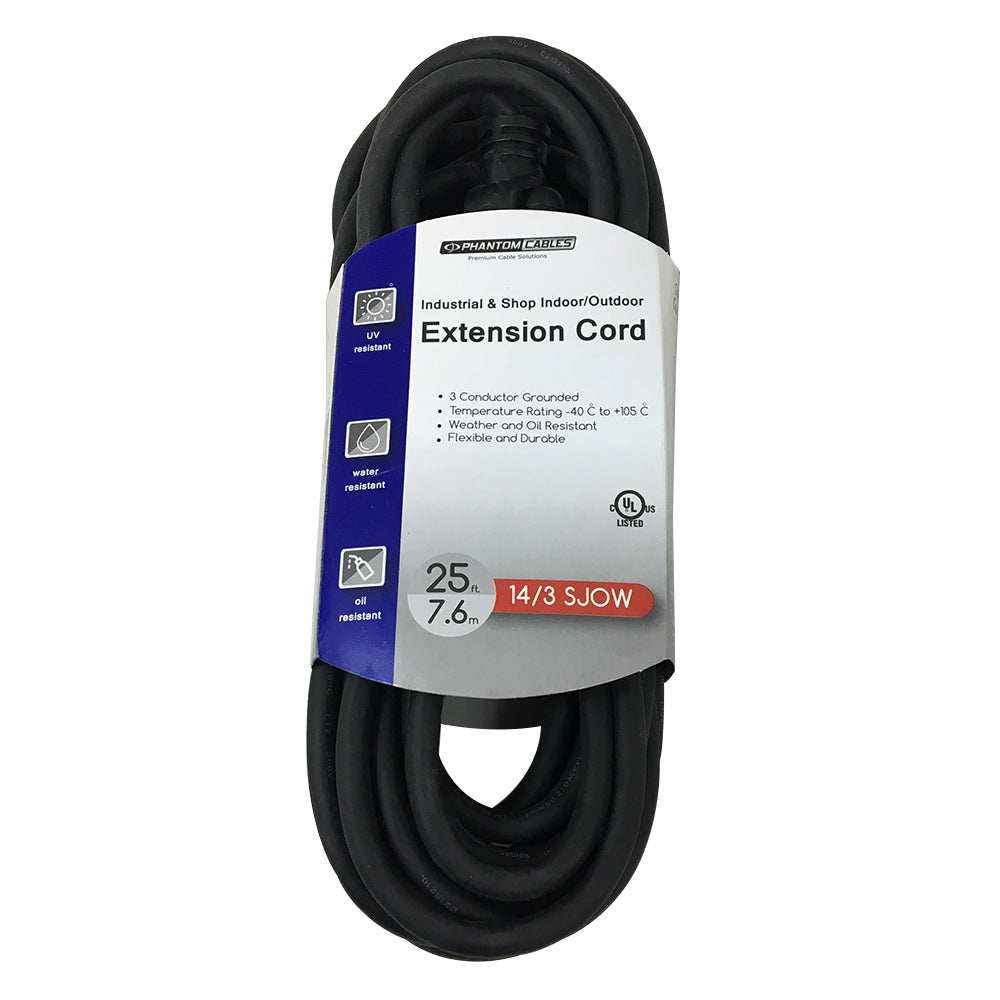

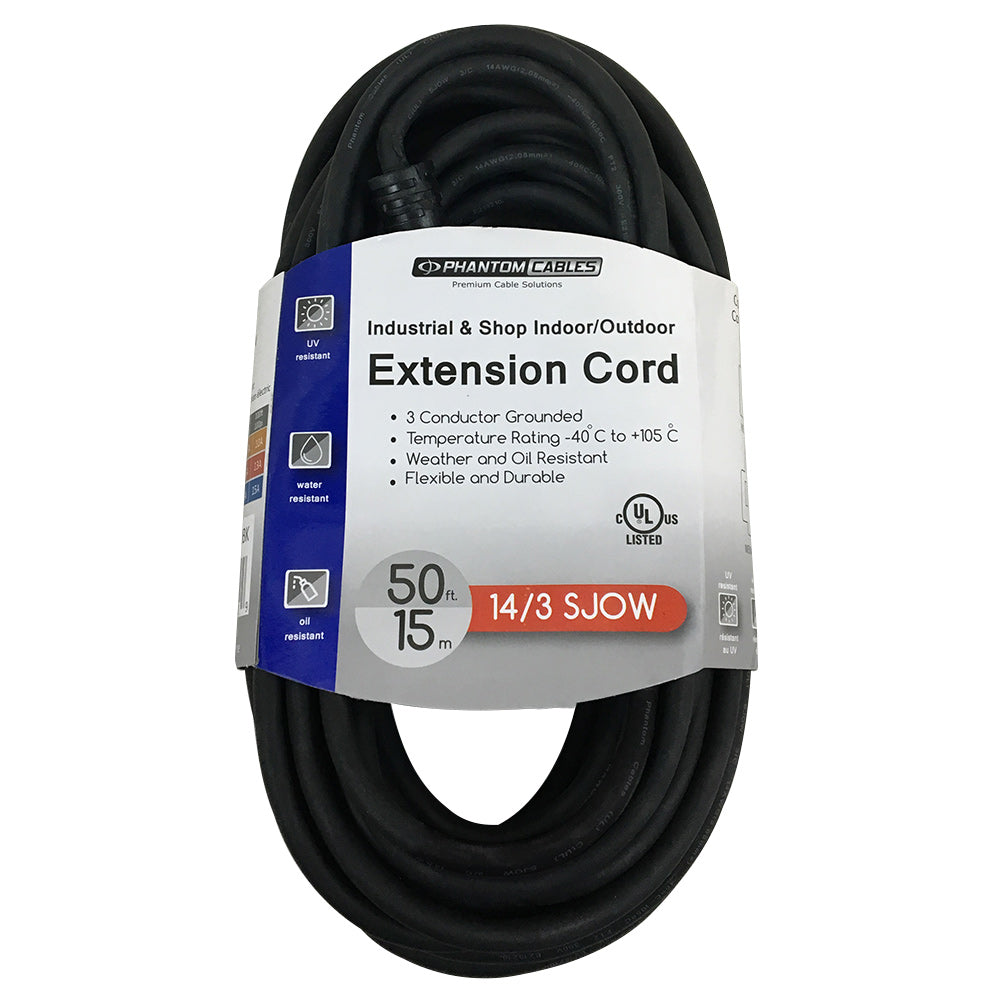

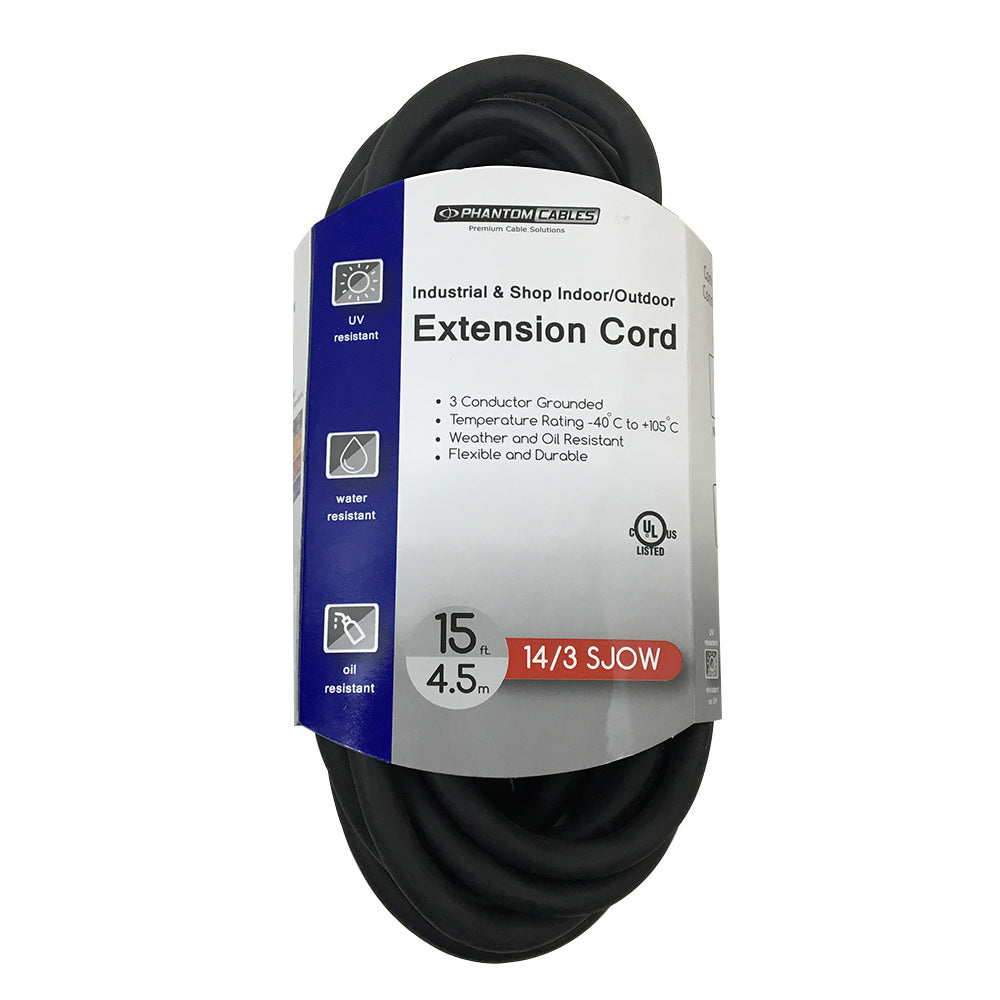

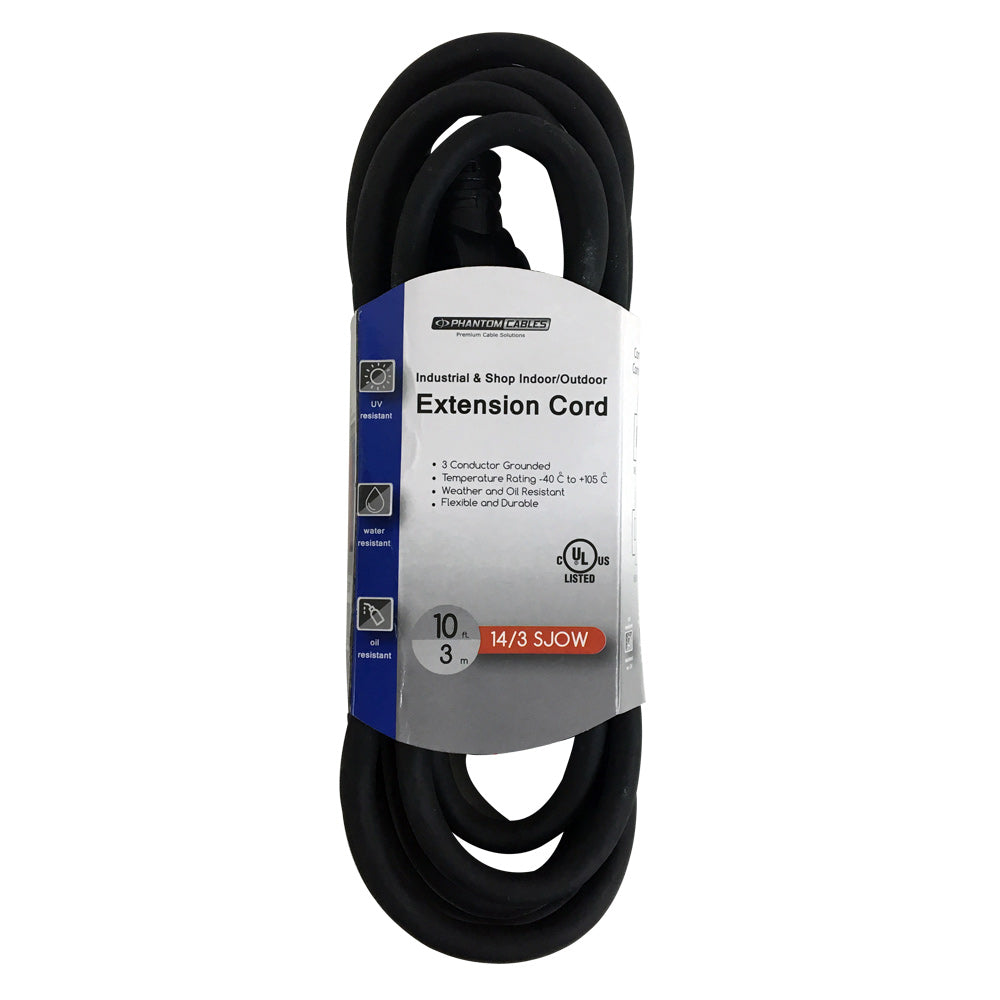

This indoor/outdoor power extension cord consists of a 5-15P male on one end and a 5-15R female on the other end. It is constructed of SJOW jacket material which is extremely flexible and durable, as well as water and UV resistant. The cord is made with 3 conductors of 14 gauge wire.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Connector Plating | Nickel-Coated | |
| Number of Conductors | 3 Conductor | |
| Wire Gauge | 14AWG | |
| Jacket | SJOW | |
| Strain Relief | Molded | |
| Temperature Rating | -40 deg C to 105 deg C | |
| Connector(s) | ||
| Connector A | NEMA 5-15P | |
| Connector B | NEMA 5-15R | |
| Performance | ||
| Cable Length | 10, 15, 25, 35, 50 foot | 100 foot |
| Power Rating | 15 Amp / 125 Volt | 13 Amp / 125 Volt |
| Maximum Watts | 1875W | 1625W |
| UV Resistant Jacket | Yes | |
| Water Resistant Jacket | Yes | |
| Approvals | ||
| c(UL)us | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| 10ft | 15ft | 25ft | 35ft | 50ft | 100ft |
|---|---|---|---|---|---|
| 1.10 lbs | 1.70 lbs | 2.50 lbs | 3.90 lbs | 4.70 lbs | 9.50 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| PX-120C-010BK | 10ft | 1.03 lb |
| PX-120C-015BK | 15ft | 1.5 lb |
| PX-120C-025BK | 25ft | 2.51 lb |
| PX-120C-035BK | 35ft | 3.54 lb |
| PX-120C-050BK | 50ft | 5.02 lb |
| PX-120C-100BK | 100ft | 10.0 lb |
