Overview

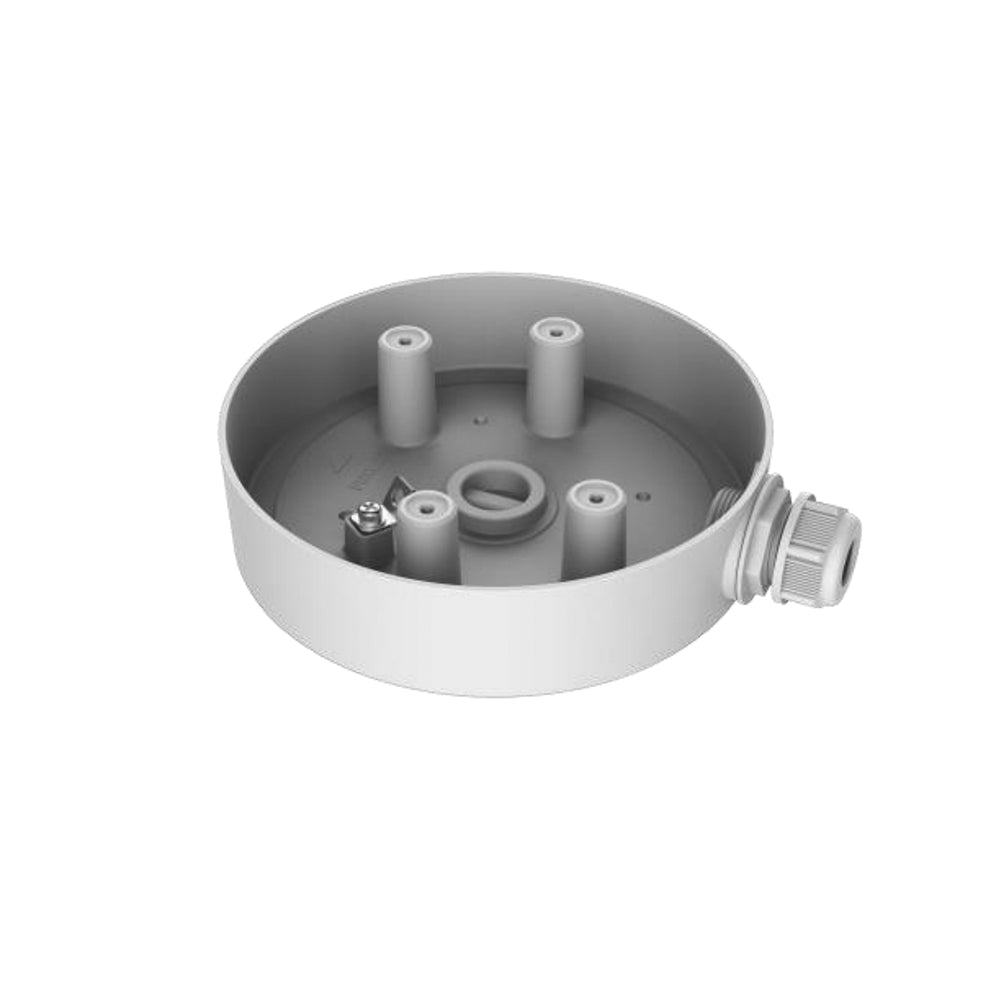

This wall mounting bracket is designed to hold specific PTZ dome cameras. It is typically used for security solutions in indoor or outdoor settings.
Note:
- The junction box should be installed on a flat surface.
- The waterproof rubber is necessary for the outdoor application.
- The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
- The maximum load capacity of the bracket is 5.0 kg.
Specifications
|
Physical Characteristics
|
| Color |
White |
| Material |
Aluminum Alloy |

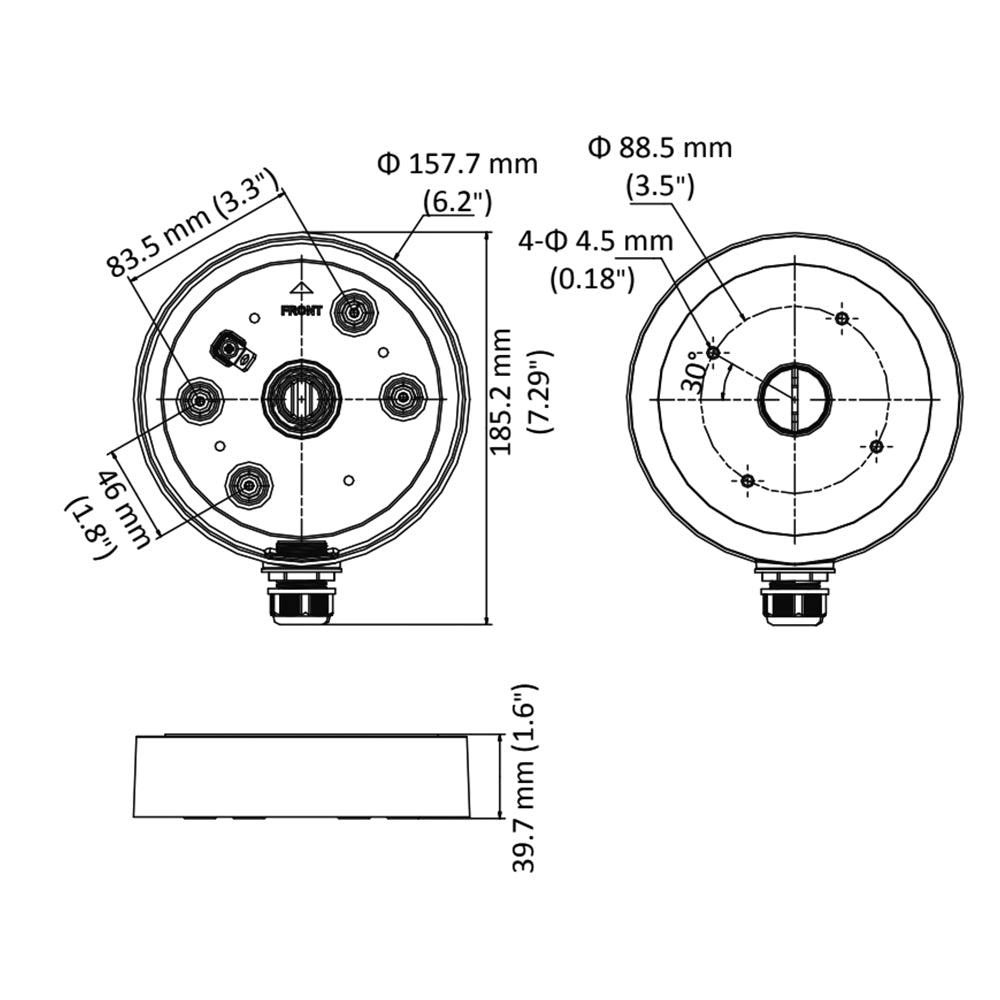

| Dimension |
157.7x39.7 mm (6.2x1.6 inch)
|
| Maximum Load Capacity |
11 lb [5 kg] |
|
Compatible Cameras
|
| CA-NP1A14-IR/25X |
4MP Dome IP Camera PTZ - 4.8-120mm Lens - 25x Optical Zoom - 16x Digital Zoom - IP66 Rated - White
|
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.99 lb [0.5 kg]
|
