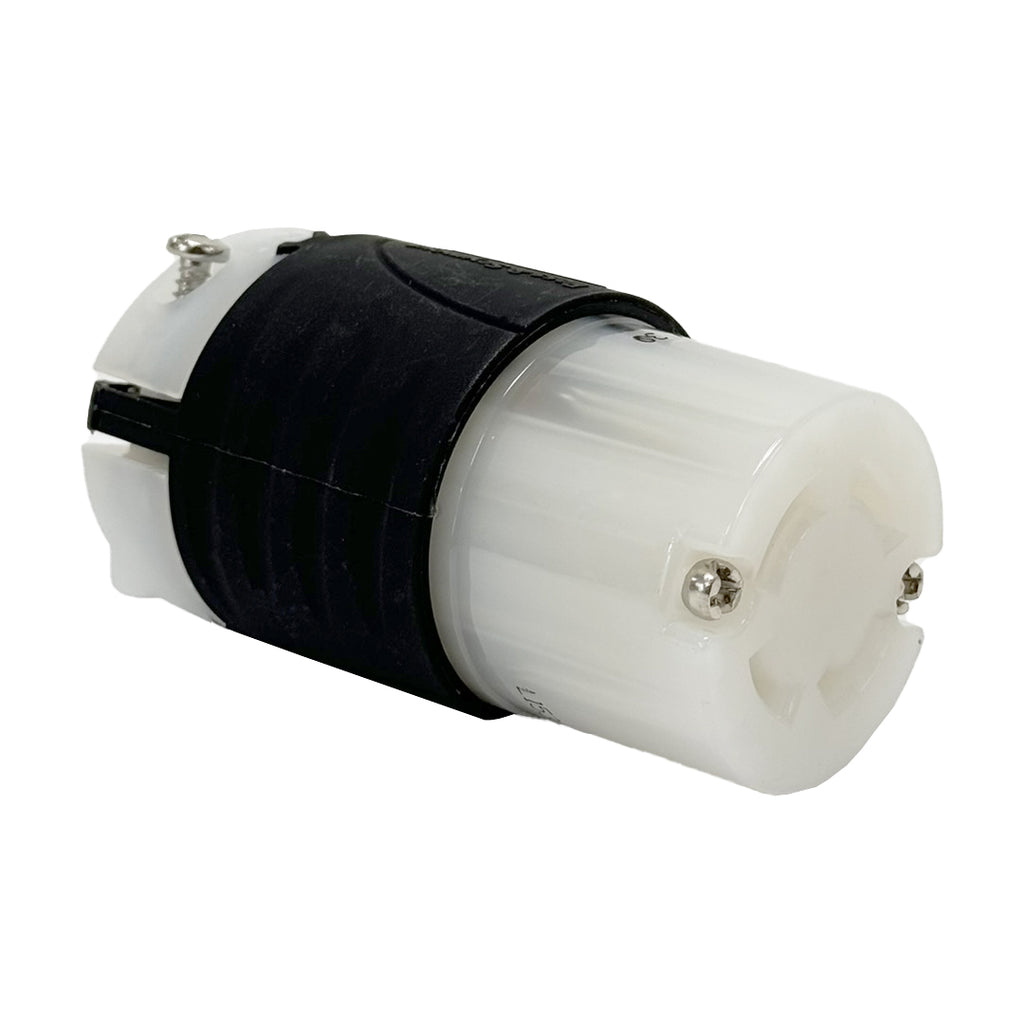

This L15-30R power cord connector is a 4-pole 3-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
Features:
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating.
- New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
| Physical Characteristics |
| No. of Wires |
3 |
| No. Of Poles |
4-Poles
|
| Connectivity |
Screw Terminals |
| Material |
Brass Alloy |
| Cable Diameter Range |
0.225 - 1.150 inch |
| Wire Gauge Compatibility |
8-18AWG |
| Power Rating |
30A 250V |
| Manufacturing Information |
| Pass & Seymour - Legrand Part No. |
L1530C |
| Approvals |
| UL |
Yes |
| Environmental |
| RoHS |
Yes |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.38 lbs |
