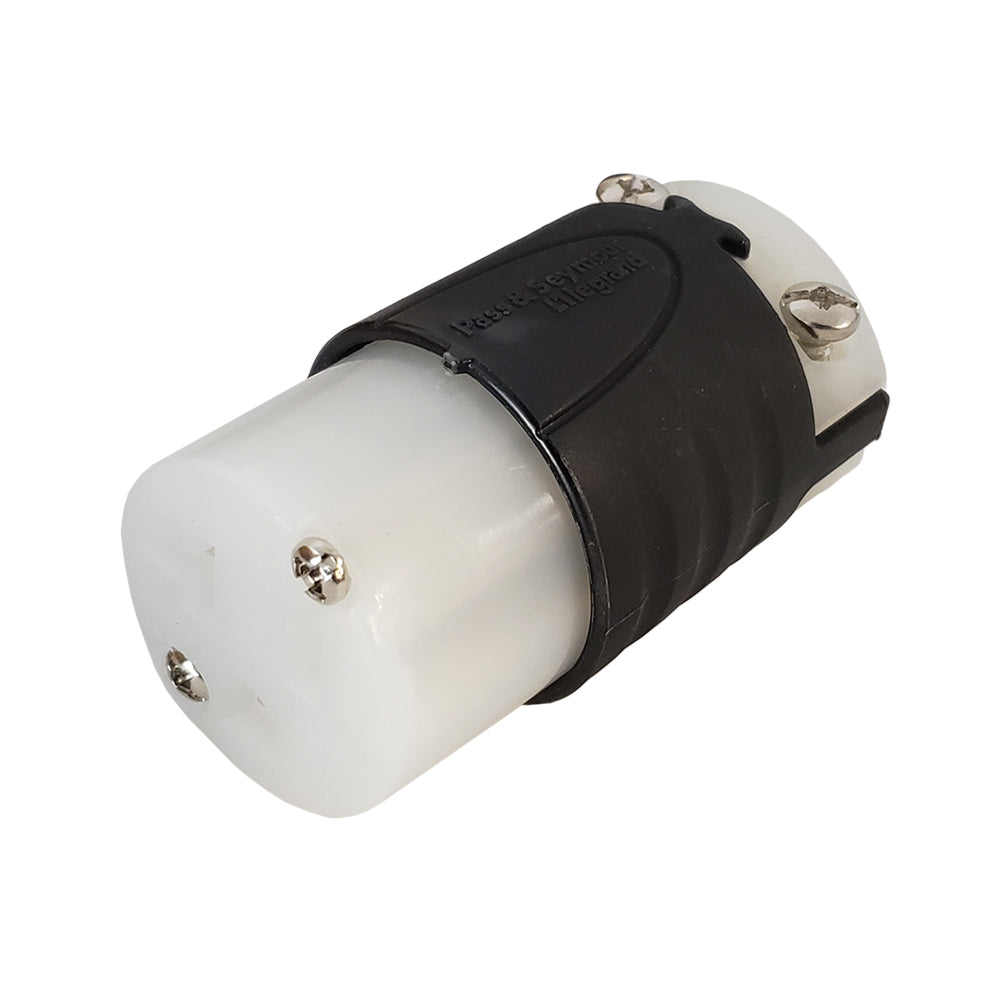

This L21-30R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
|
Physical Characteristics
|
| No. of Poles |
4-Pole |
| No. Of Conductor |
5 Conductor |
| Connectivity |
Screw Terminals |
| Material |
Polycarbonate |
| Operating Temperature |
Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range |
3-wire device:
0.325 inch (16/3 SJ Type) to 0.750 inch (10/3 S Type)
4 and 5-wire devices:
0.325 inch (16/4 S Type) to 0.750 inch (10/4 S Type) with inserts
0.700 inch (12/5 S Type) to 1.15 inch (8/5 S Type) without inserts
|
| Wire Gauge Compatibility
|
Pass & Seymour - Legrand
Part No. |
L2130C
|
|
Connectors
|
| L21-30R |
Female |
|
Approvals
|
| c(UL)us |
Yes |
|
Environmental
|
| RoHS |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.15 lbs [0.06kg] |
