Overview

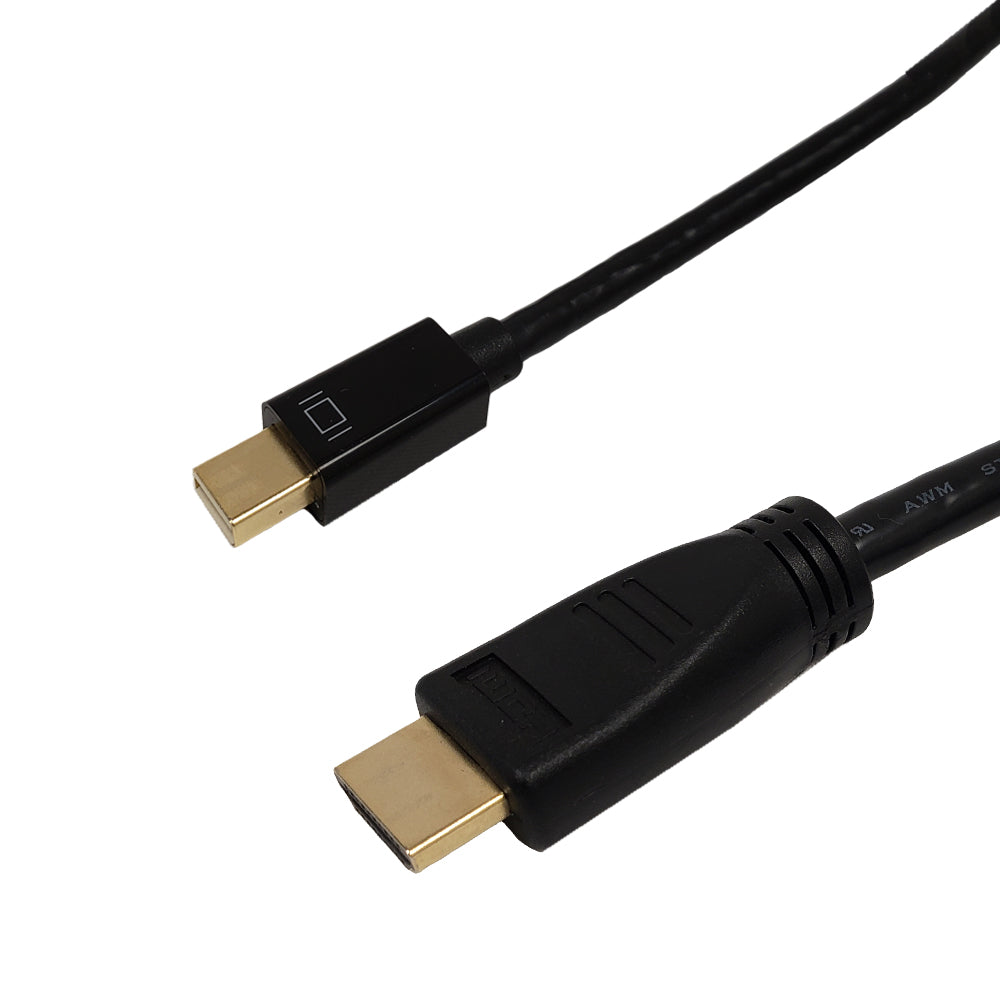

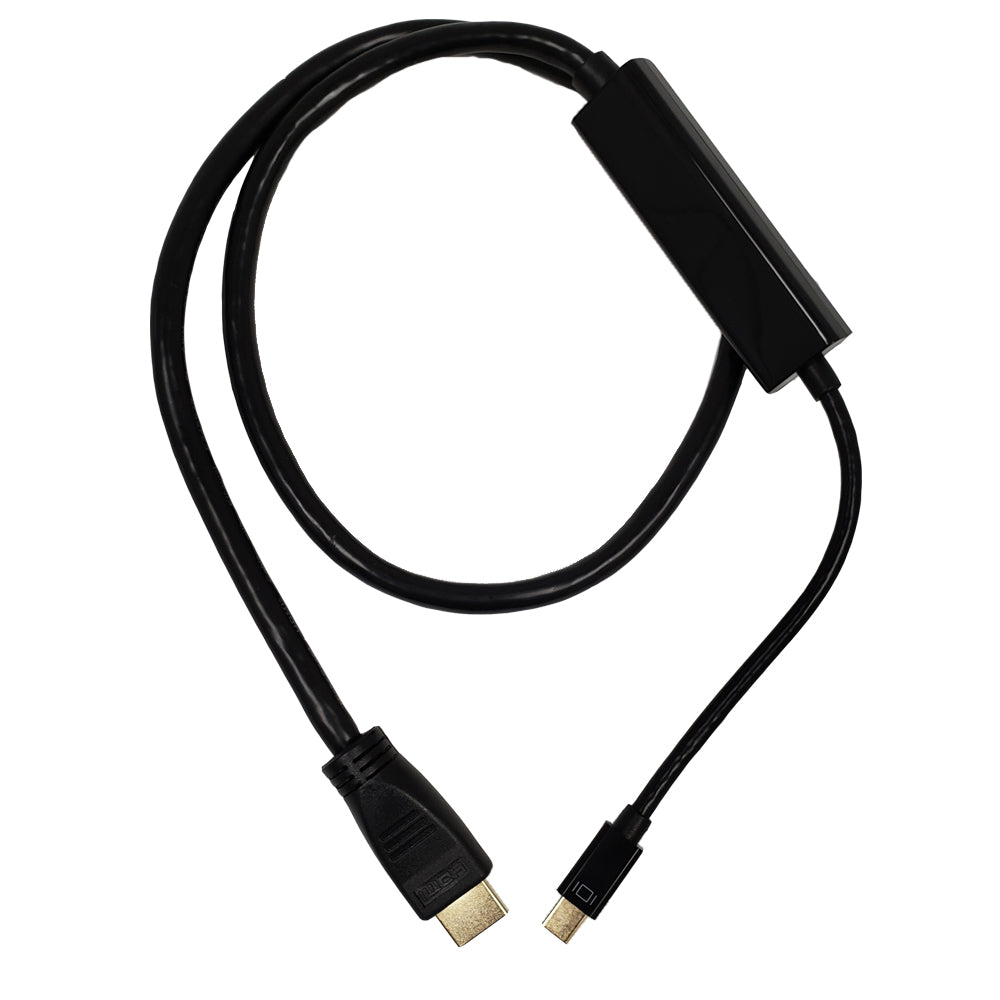

This Mini DisplayPort male to HDMI male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Mini DisplayPort source (MacBook Pro, MacBook Air, etc.) to a HDMI display ( 4K HD TVs, Projectors, etc.). This cable in uni-directional, therefore it will only work from a DisplayPort source to a HDMI display and not in the reverse direction.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Used in Common InstancesThis cable can be used in common instances - for example, connecting a MacBook to a TV, at the highest possible resolution available.
|
Application
Specifications
| Physical Characteristics | |||
|---|---|---|---|
| Color | Black | ||
| Connector Plating | Gold | ||
| Wire Gauge | 28 AWG | ||
| Jacket Fire Rating | CL3/FT4 | ||
| Cable Type | Active | ||
| Temperature Rating |
80ºC |
||
| Connectors | |||
| Connector A | HDMI Male | ||
| Connector B | Mini DisplayPort Male | ||
| Performance | |||
| Bandwidth | 18 Gbps | ||
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz 1080p@75-144hz 1440p @75-144hz |
||
| 3D Support | Yes | ||
| DP Version | v1.2 | ||
| HDMI Version | v2.0 | ||
| Content Protection | HDCP2.2 Compliant |
||
| Built in Ethernet Channel |
Yes | ||
| Approvals | |||
| c(UL)us | Approved Cable | ||
| Environmental | |||
| RoHS | Yes | ||
| Reach | Yes | ||
| Conflict Minerals | Yes | ||
| Packaging Information | |||
| Packaging Quantity | 1 | ||
| Warranty | |||
| Warranty | Lifetime Limited | ||
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.19 lbs | 0.3 lbs | 0.48 lbs | 0.72 lbs |
| SKU | Options | Weight |
| MDP-HDMI2-03 | 3ft | 0.15 lb |
| MDP-HDMI2-06 | 6ft | 0.21 lb |
| MDP-HDMI2-10 | 10ft | 0.33 lb |
| MDP-HDMI2-15 | 15ft | 0.5 lb |
