NEMA 5-15P to IEC C13 Power Cable - SJT Jacket

AC Power CordsSKU: PWC-105-01
Length: 1ft
Color: Black
Wire Gauge: 18AWG
Price:
$2.15 CAD
Stock:
In stock


Description

Overview

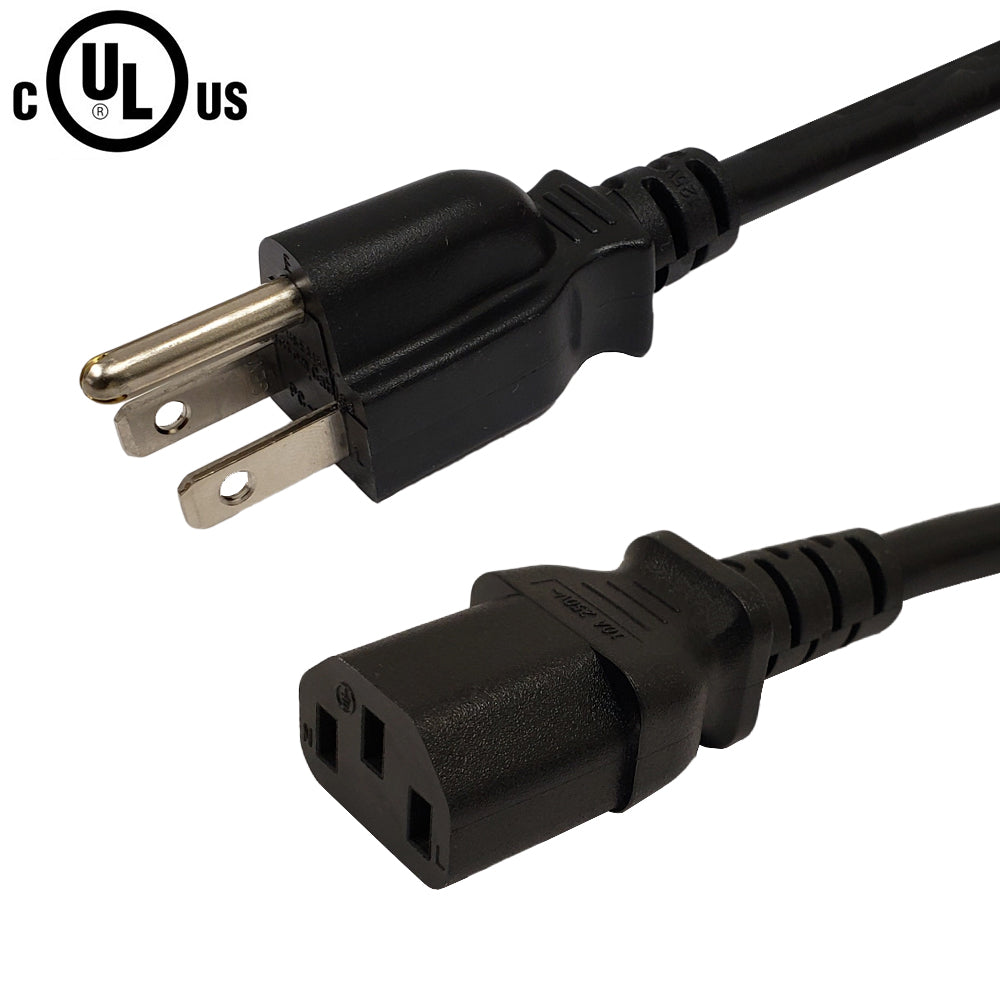

This power cord consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a networking equipment such as a server to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14AWG / 18 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C13
Connector B NEMA 5-15P
Performance
Power Rating 15 Amp / 125 Volt (14AWG)
10 Amp / 125 Volt (18AWG)
Approvals
C13 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 1.5ft 2ft 3ft 4ft 5ft 6ft 8ft 10ft 12ft 15ft 25ft
0.12 lbs 0.19 lbs 0.22 lbs 0.29 lbs 0.35 lbs 0.44 lbs 0.50 lbs 0.59 lbs 0.70 lbs 0.80 lbs 1.00 lbs 1.57 lbs

Download attachment - PWC-105C-xx Spec Sheet

Download attachment - PWC-105-xx Spec Sheet

REACH Certificate

RoHS Certificate

SKU Options Weight
PWC-105-01 1ft / Black / 18AWG 0.17 lb
PWC-105C-01 1ft / Black / 14AWG 0.17 lb
PWC-105-01.5 1.5ft / Black / 18AWG 0.22 lb
PWC-105C-01.5 1.5ft / Black / 14AWG 0.22 lb
PWC-105-02 2ft / Black / 18AWG 0.29 lb
PWC-105C-02 2ft / Black / 14AWG 0.29 lb
PWC-105-03 3ft / Black / 18AWG 0.36 lb
PWC-105C-03 3ft / Black / 14AWG 0.36 lb
PWC-105-04 4ft / Black / 18AWG 0.47 lb
PWC-105C-04 4ft / Black / 14AWG 0.47 lb
PWC-105-05 5ft / Black / 18AWG 0.56 lb
PWC-105-06 6ft / Black / 18AWG 0.65 lb
PWC-105C-06 6ft / Black / 14AWG 0.65 lb
PWC-105-08 8ft / Black / 18AWG 0.85 lb
PWC-105C-08 8ft / Black / 14AWG 0.85 lb
PWC-105-10 10ft / Black / 18AWG 1.03 lb
PWC-105C-10 10ft / Black / 14AWG 1.03 lb
PWC-105-12 12ft / Black / 18AWG 1.23 lb
PWC-105C-12 12ft / Black / 14AWG 1.23 lb
PWC-105-15 15ft / Black / 18AWG 1.5 lb
PWC-105C-15 15ft / Black / 14AWG 1.5 lb
PWC-105-25 25ft / Black / 18AWG 2.51 lb
PWC-105C-25 25ft / Black / 14AWG 2.51 lb
PWC-105C-35 35ft / Black / 14AWG 3.54 lb
PWC-105C-50 50ft / Black / 14AWG 5.02 lb
PWC-105-01BL 1ft / Blue / 18AWG 0.17 lb
PWC-105C-01BL 1ft / Blue / 14AWG 0.17 lb
PWC-105-02BL 2ft / Blue / 18AWG 0.29 lb
PWC-105C-02BL 2ft / Blue / 14AWG 0.29 lb
PWC-105-03BL 3ft / Blue / 18AWG 0.36 lb
PWC-105C-03BL 3ft / Blue / 14AWG 0.36 lb
PWC-105-04BL 4ft / Blue / 18AWG 0.47 lb
PWC-105C-04BL 4ft / Blue / 14AWG 0.47 lb

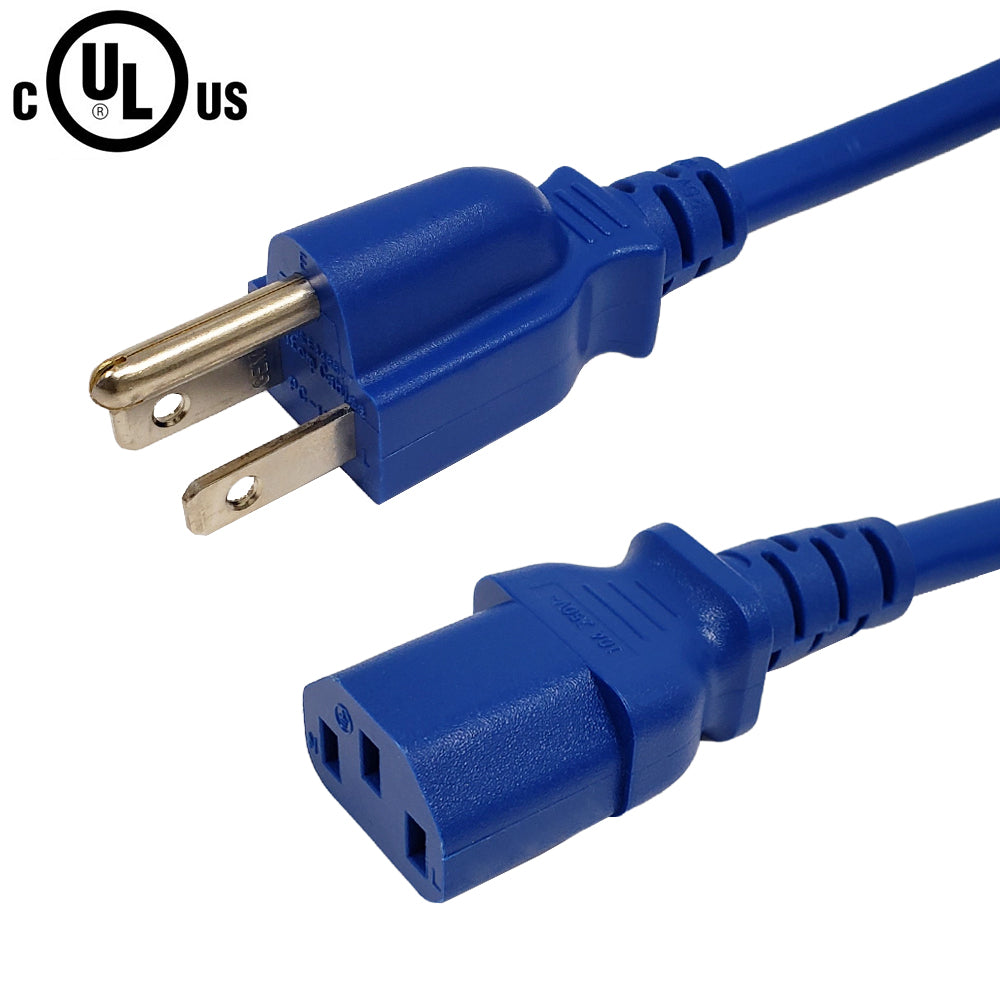

PWC-105-06BL 6ft / Blue / 18AWG 0.65 lb
PWC-105C-06BL 6ft / Blue / 14AWG 0.65 lb
PWC-105-08BL 8ft / Blue / 18AWG 0.85 lb
PWC-105-10BL 10ft / Blue / 18AWG 1.03 lb
PWC-105C-10BL 10ft / Blue / 14AWG 1.03 lb
PWC-105-12BL 12ft / Blue / 18AWG 1.23 lb
PWC-105-15BL 15ft / Blue / 18AWG 1.5 lb
PWC-105-01GN 1ft / Green / 18AWG 0.17 lb
PWC-105C-01GN 1ft / Green / 14AWG 0.17 lb
PWC-105-02GN 2ft / Green / 18AWG 0.29 lb
PWC-105C-02GN 2ft / Green / 14AWG 0.29 lb
PWC-105-03GN 3ft / Green / 18AWG 0.36 lb
PWC-105C-03GN 3ft / Green / 14AWG 0.36 lb
PWC-105-04GN 4ft / Green / 18AWG 0.47 lb
PWC-105C-04GN 4ft / Green / 14AWG 0.47 lb

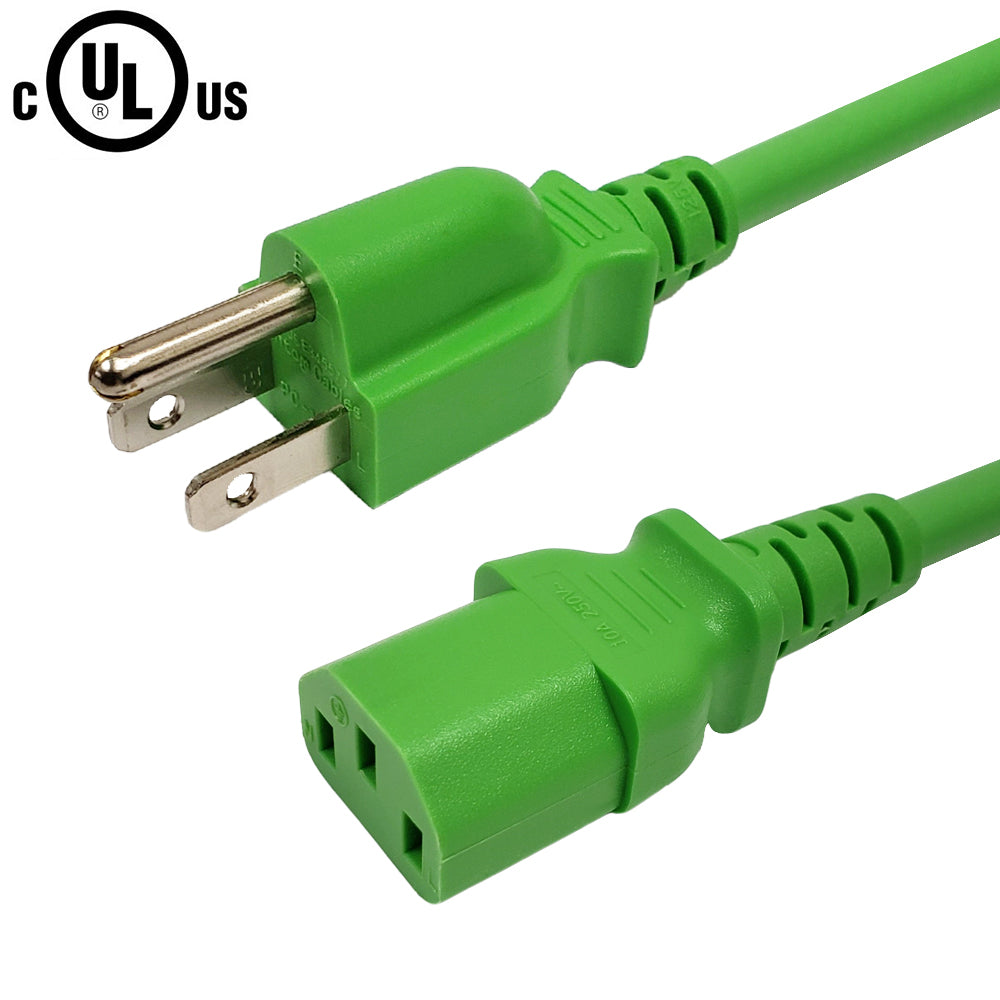

PWC-105-06GN 6ft / Green / 18AWG 0.65 lb
PWC-105C-06GN 6ft / Green / 14AWG 0.65 lb
PWC-105-08GN 8ft / Green / 18AWG 0.85 lb
PWC-105-10GN 10ft / Green / 18AWG 1.03 lb
PWC-105C-10GN 10ft / Green / 14AWG 1.03 lb
PWC-105-12GN 12ft / Green / 18AWG 1.23 lb
PWC-105-15GN 15ft / Green / 18AWG 1.5 lb
PWC-105-01RD 1ft / Red / 18AWG 0.17 lb
PWC-105C-01RD 1ft / Red / 14AWG 0.17 lb
PWC-105-02RD 2ft / Red / 18AWG 0.29 lb
PWC-105C-02RD 2ft / Red / 14AWG 0.29 lb
PWC-105-03RD 3ft / Red / 18AWG 0.36 lb
PWC-105C-03RD 3ft / Red / 14AWG 0.36 lb
PWC-105-04RD 4ft / Red / 18AWG 0.47 lb
PWC-105C-04RD 4ft / Red / 14AWG 0.47 lb

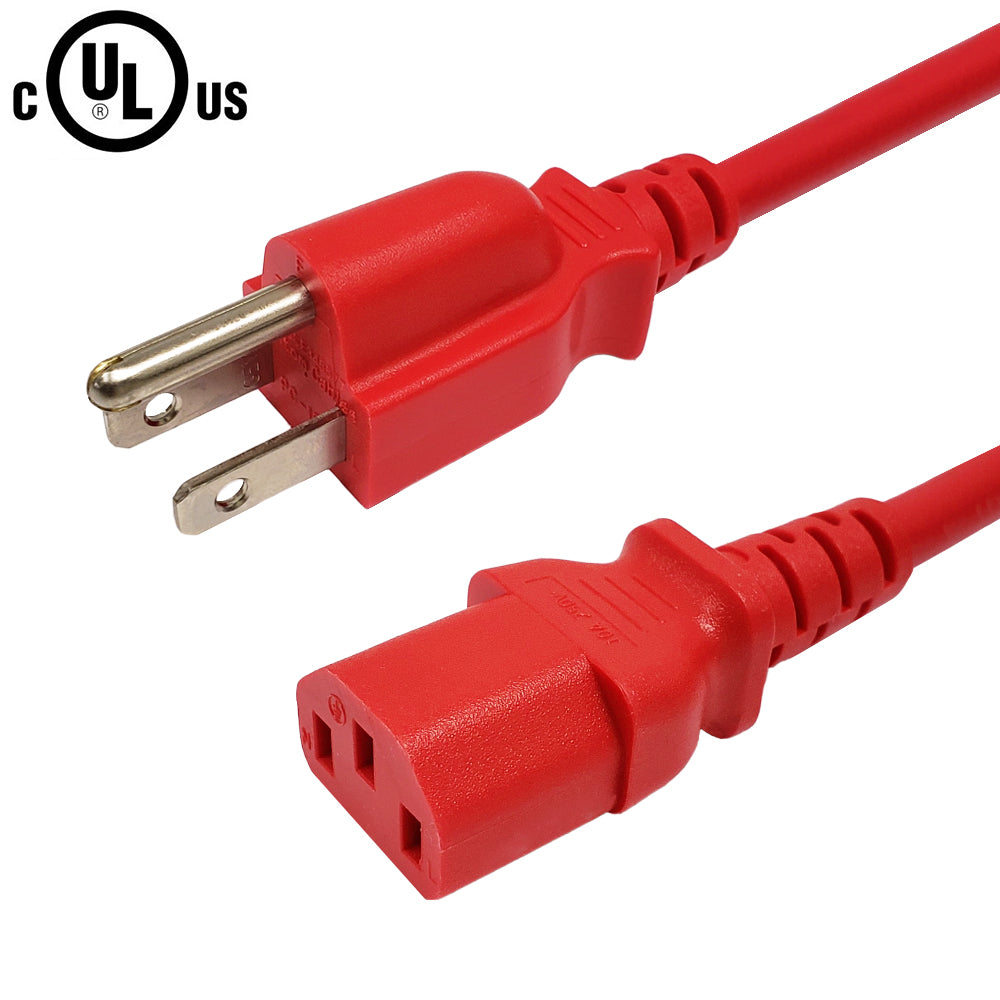

PWC-105-06RD 6ft / Red / 18AWG 0.65 lb
PWC-105C-06RD 6ft / Red / 14AWG 0.65 lb
PWC-105-08RD 8ft / Red / 18AWG 0.85 lb
PWC-105-10RD 10ft / Red / 18AWG 1.03 lb
PWC-105C-10RD 10ft / Red / 14AWG 1.03 lb
PWC-105-12RD 12ft / Red / 18AWG 1.23 lb
PWC-105-15RD 15ft / Red / 18AWG 1.5 lb
PWC-105-01WH 1ft / White / 18AWG 0.17 lb
PWC-105C-01WH 1ft / White / 14AWG 0.17 lb
PWC-105-02WH 2ft / White / 18AWG 0.29 lb
PWC-105C-02WH 2ft / White / 14AWG 0.29 lb
PWC-105-03WH 3ft / White / 18AWG 0.36 lb
PWC-105C-03WH 3ft / White / 14AWG 0.36 lb
PWC-105-04WH 4ft / White / 18AWG 0.47 lb
PWC-105C-04WH 4ft / White / 14AWG 0.47 lb

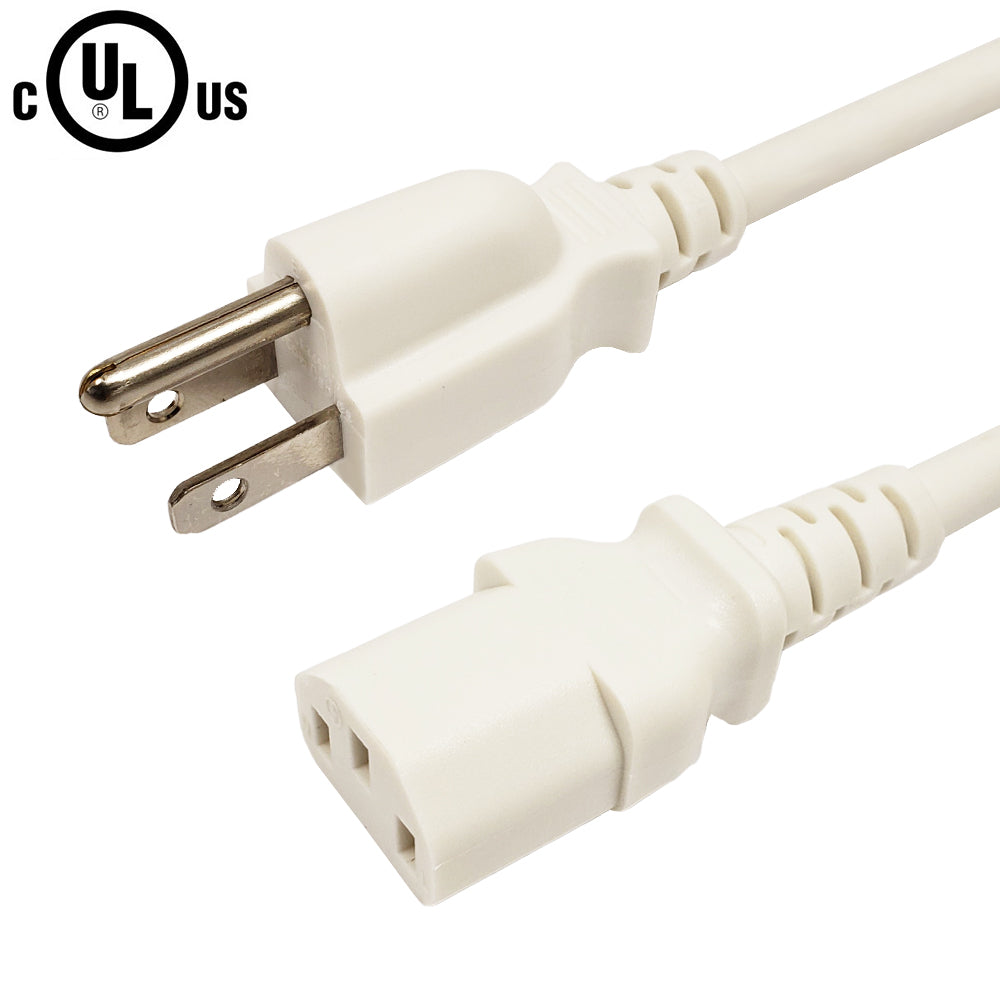

PWC-105-06WH 6ft / White / 18AWG 0.65 lb
PWC-105C-06WH 6ft / White / 14AWG 0.65 lb
PWC-105-08WH 8ft / White / 18AWG 0.85 lb
PWC-105-10WH 10ft / White / 18AWG 1.03 lb
PWC-105C-10WH 10ft / White / 14AWG 1.03 lb
PWC-105-12WH 12ft / White / 18AWG 1.23 lb
PWC-105-15WH 15ft / White / 18AWG 1.5 lb
PWC-105-01YL 1ft / Yellow / 18AWG 0.17 lb
PWC-105C-01YL 1ft / Yellow / 14AWG 0.17 lb
PWC-105-02YL 2ft / Yellow / 18AWG 0.29 lb
PWC-105C-02YL 2ft / Yellow / 14AWG 0.29 lb
PWC-105-03YL 3ft / Yellow / 18AWG 0.36 lb
PWC-105C-03YL 3ft / Yellow / 14AWG 0.36 lb
PWC-105-04YL 4ft / Yellow / 18AWG 0.47 lb
PWC-105C-04YL 4ft / Yellow / 14AWG 0.47 lb

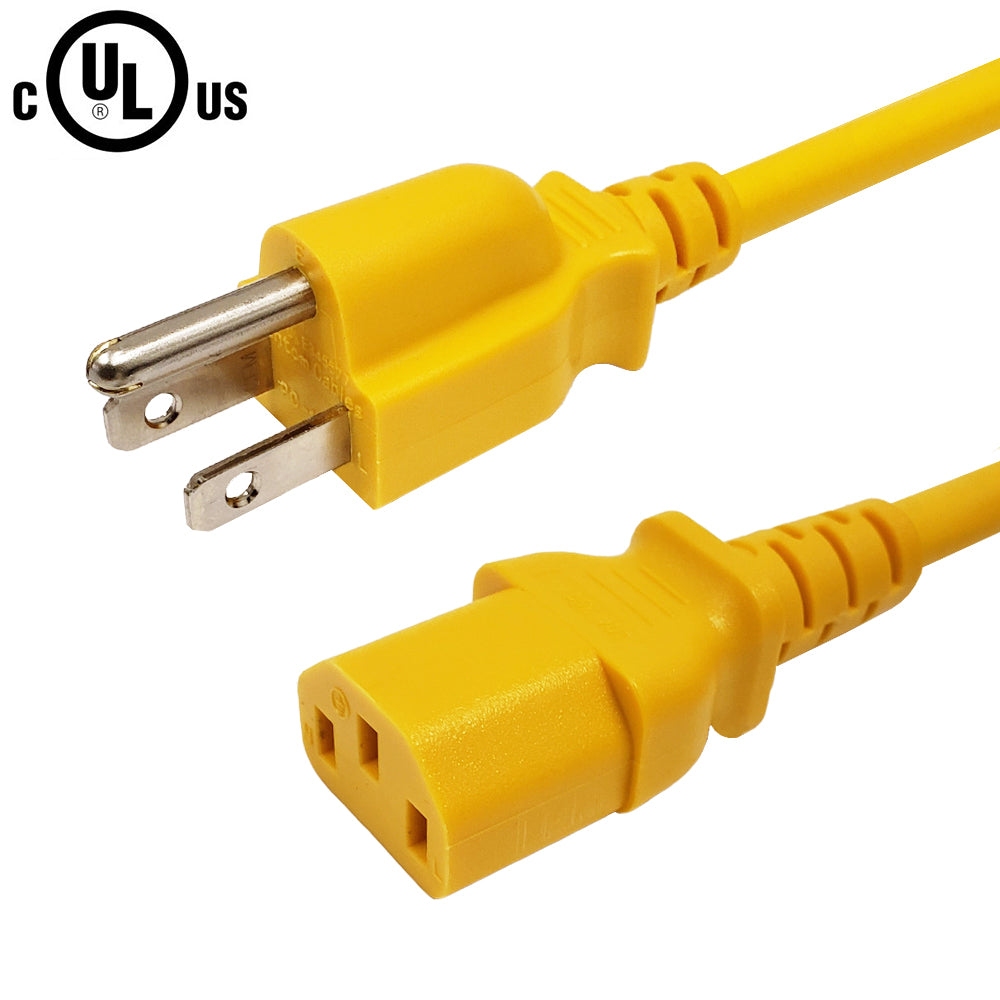

PWC-105-06YL 6ft / Yellow / 18AWG 0.65 lb
PWC-105C-06YL 6ft / Yellow / 14AWG 0.65 lb
PWC-105-08YL 8ft / Yellow / 18AWG 0.85 lb
PWC-105-10YL 10ft / Yellow / 18AWG 1.03 lb
PWC-105C-10YL 10ft / Yellow / 14AWG 1.03 lb
PWC-105-12YL 12ft / Yellow / 18AWG 1.23 lb
PWC-105-15YL 15ft / Yellow / 18AWG 1.5 lb
