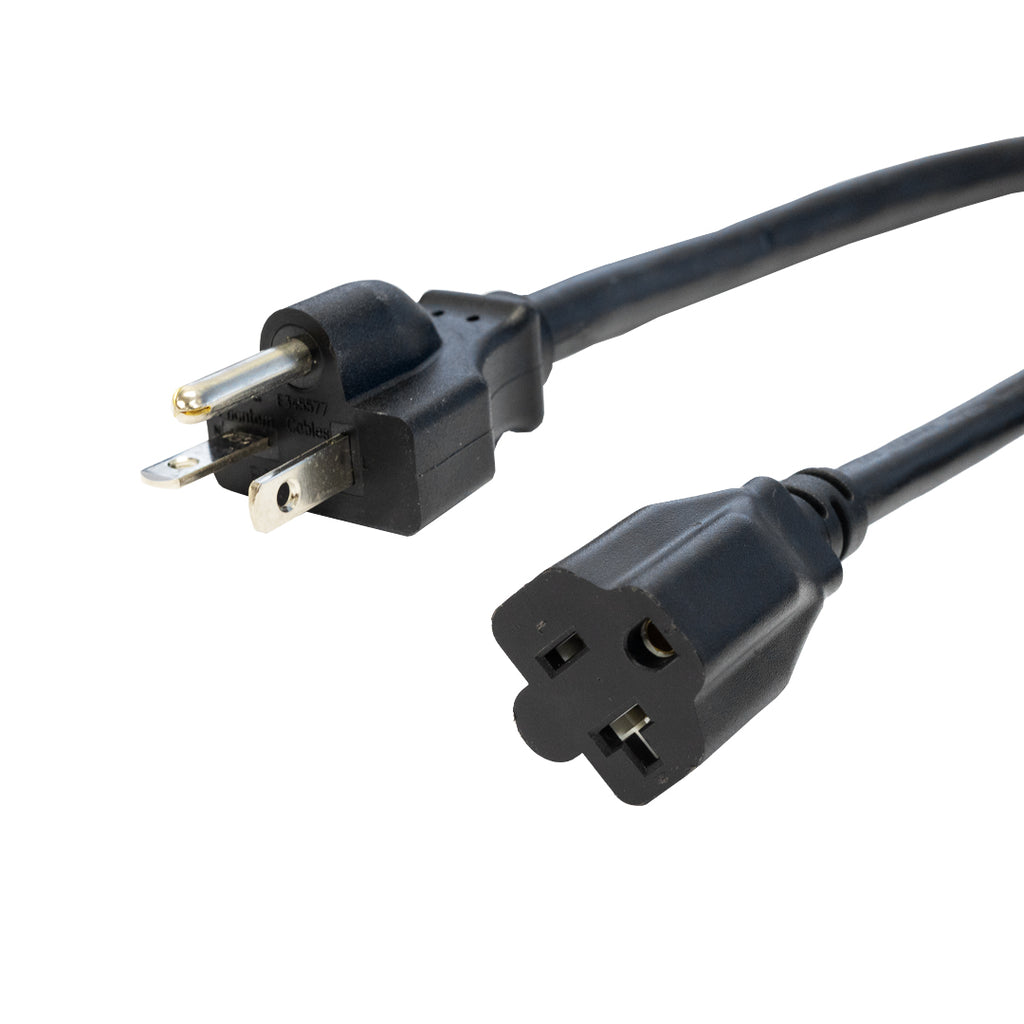

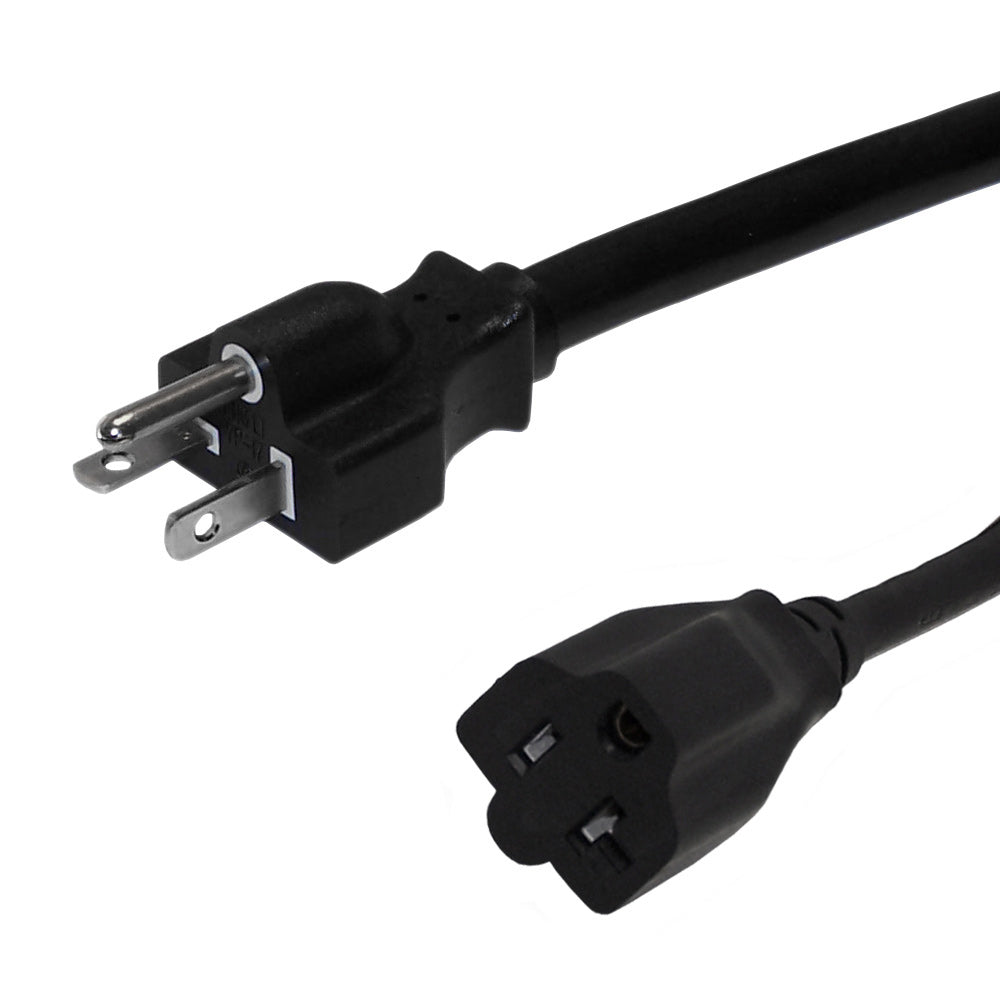

This power cord consists of a 5-20P male on one end and a 5-20R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |

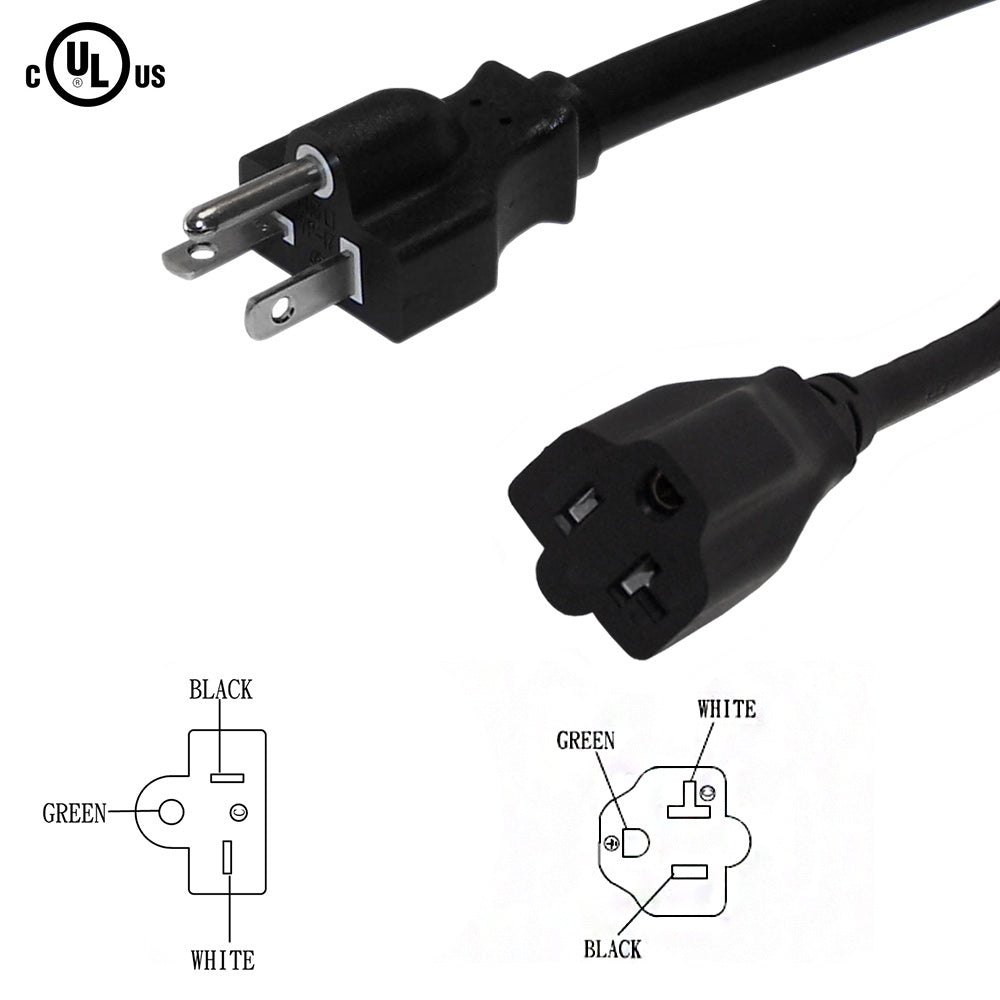

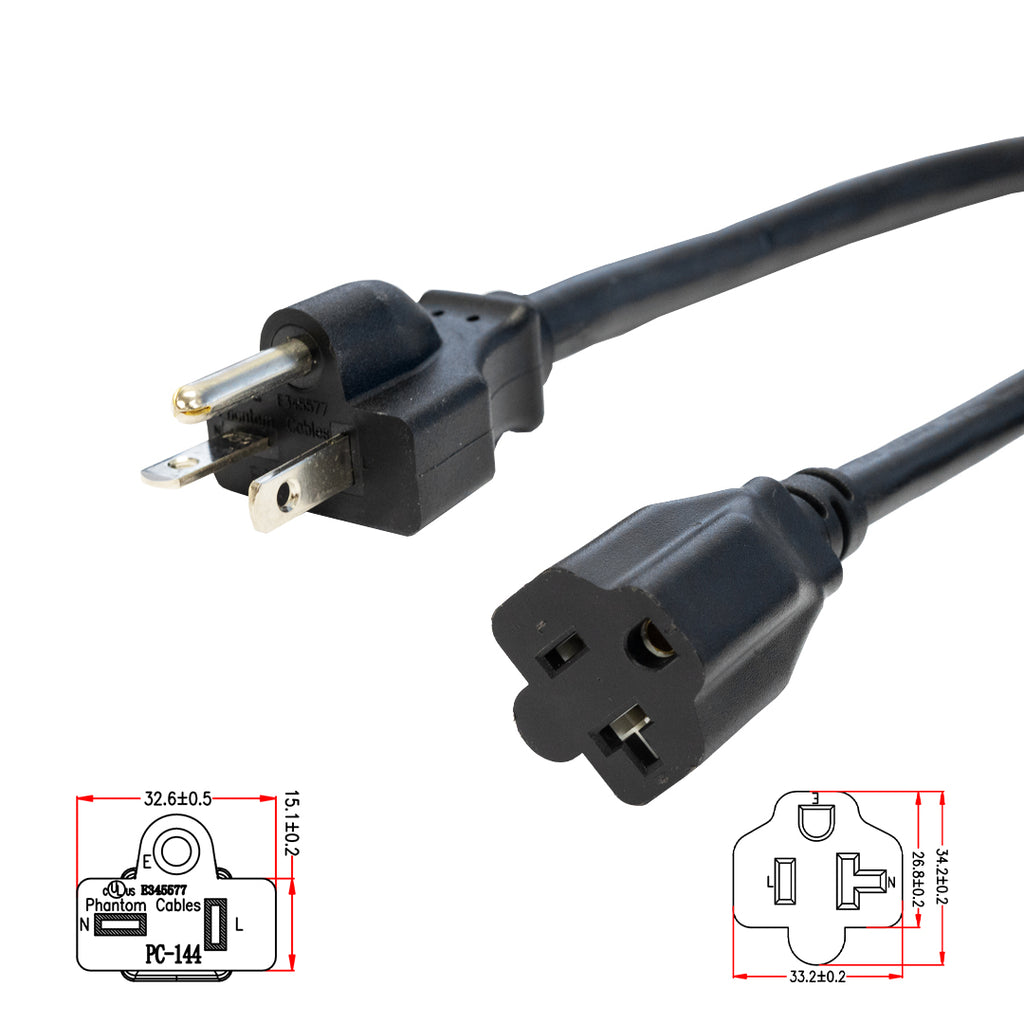

| Connector A | NEMA 5-20P |
| Connector B | NEMA 5-15R/5-20R T-Slot |
| Performance | |
| Power Rating | 20 Amp / 125 Volt |
| Approvals | |
| 5-20P | c(UL)us |
| 5-20R | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.25 lbs | 0.51 lbs | 0.71 lbs | 1.12 lbs | 1.53 lbs |
