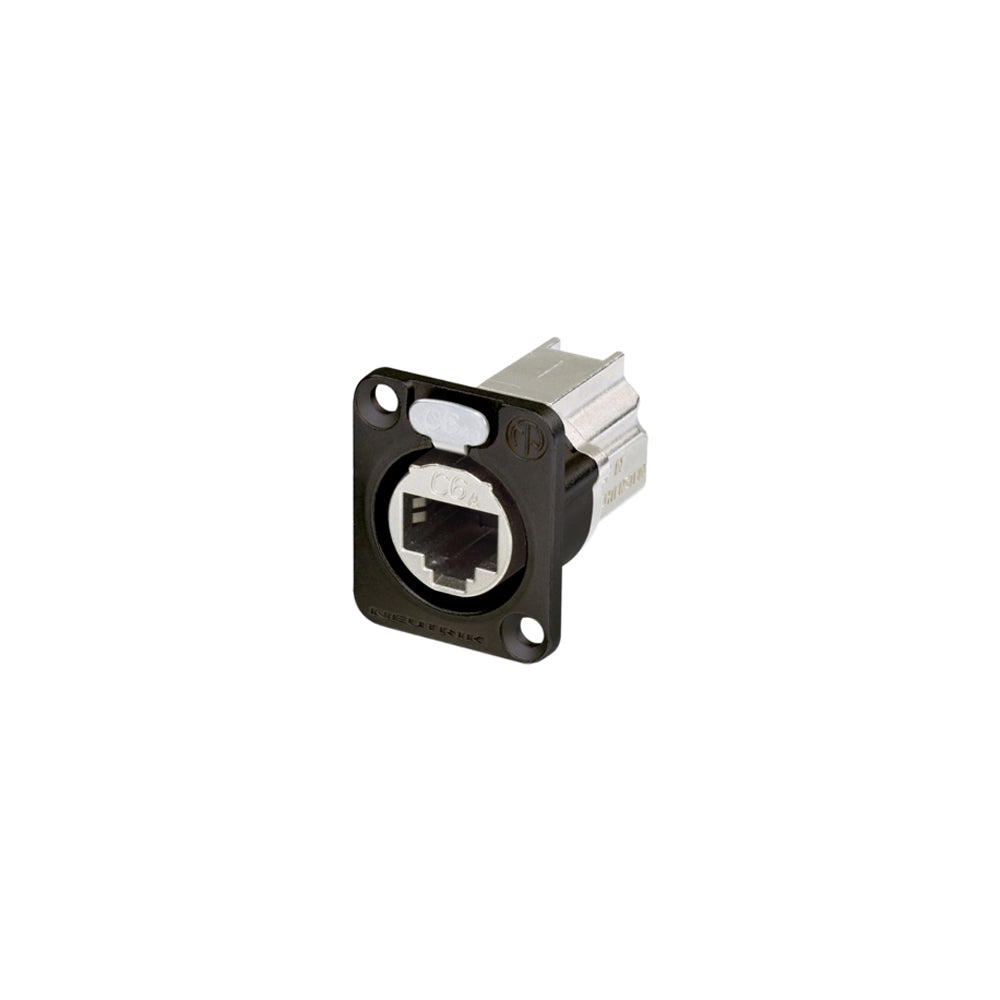

This D-shape CAT6a panel connector is shielded and feedthrough with a rugged latch lock system.
| Physical Characteristics |
|---|
| Color |
Black |
| Housing |
Nickel |
| Temperature Range |
-40℃ to +70℃
|
| Contact Plating |
Au |
| Shell |
Zinc Diecast
|
| Shell Plating |
Black |
| Gender |
Female |
| Electrical Characteristics |
|---|
| Dielectric Strength |
1 kVdc |
| Insulation Resistance |
> 0.5 GΩ |
| Rated Current Per Contact |
1,5 A |
| Transmission Performance |
CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
|
| Power Over Ethernet |
PoE+ acc. IEEE 802.3at |
| Mechanical Characteristics |
|---|
| Lifetime |
> 1000 mating cycles |
| Wiring |
Feedthrough |
| Locking Device |
Latch Lock |
| Mounting Direction |
Front Mounting |
| Environmental |
|---|
| Flammability |
UL 94 V-0 |
| Manufacturer Information |
|---|
| Neutrik Part Number |
NE8FDX-P6-B |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.02 lbs [0.01 kg] |
