Description

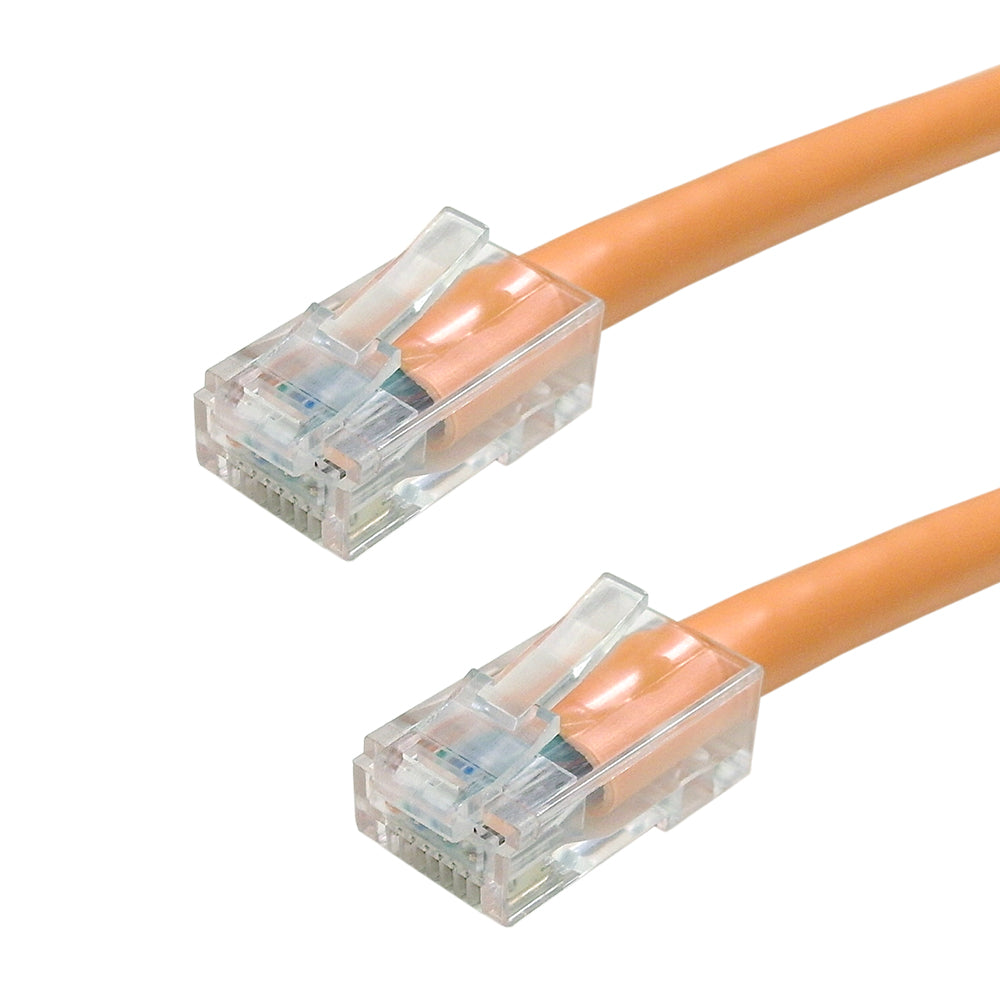

This custom Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/Green/Grey/Orange/ Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT6CN-0.8OR | 8 inch | 0.05 lb |
| CAT6CN-01OR | 1ft | 0.07 lb |
| CAT6CN-02OR | 2ft | 0.1 lb |
| CAT6CN-03OR | 3ft | 0.15 lb |
| CAT6CN-04OR | 4ft | 0.17 lb |
| CAT6CN-05OR | 5ft | 0.2 lb |
| CAT6CN-06OR | 6ft | 0.21 lb |
| CAT6CN-07OR | 7ft | 0.24 lb |
| CAT6CN-08OR | 8ft | 0.26 lb |
| CAT6CN-09OR | 9ft | 0.24 lb |
| CAT6CN-10OR | 10ft | 0.33 lb |
| CAT6CN-11OR | 11ft | 0.32 lb |
| CAT6CN-12OR | 12ft | 0.38 lb |
| CAT6CN-13OR | 13ft | 0.44 lb |
| CAT6CN-14OR | 14ft | 0.46 lb |
| CAT6CN-15OR | 15ft | 0.5 lb |
| CAT6CN-16OR | 16ft | 0.57 lb |
| CAT6CN-17OR | 17ft | 0.64 lb |
| CAT6CN-18OR | 18ft | 0.71 lb |
| CAT6CN-19OR | 19ft | 0.78 lb |
| CAT6CN-20OR | 20ft | 0.63 lb |
| CAT6CN-21OR | 21ft | 0.7 lb |
| CAT6CN-22OR | 22ft | 0.71 lb |
| CAT6CN-23OR | 23ft | 0.72 lb |
| CAT6CN-24OR | 24ft | 0.74 lb |
| CAT6CN-25OR | 25ft | 0.77 lb |
| CAT6CN-30OR | 30ft | 0.95 lb |
| CAT6CN-35OR | 35ft | 1.1 lb |
| CAT6CN-40OR | 40ft | 1.33 lb |
| CAT6CN-45OR | 45ft | 1.4 lb |
| CAT6CN-50OR | 50ft | 1.55 lb |
| CAT6CN-75OR | 75ft | 2.26 lb |
| CAT6CN-100OR | 100ft | 3.0 lb |
