Description

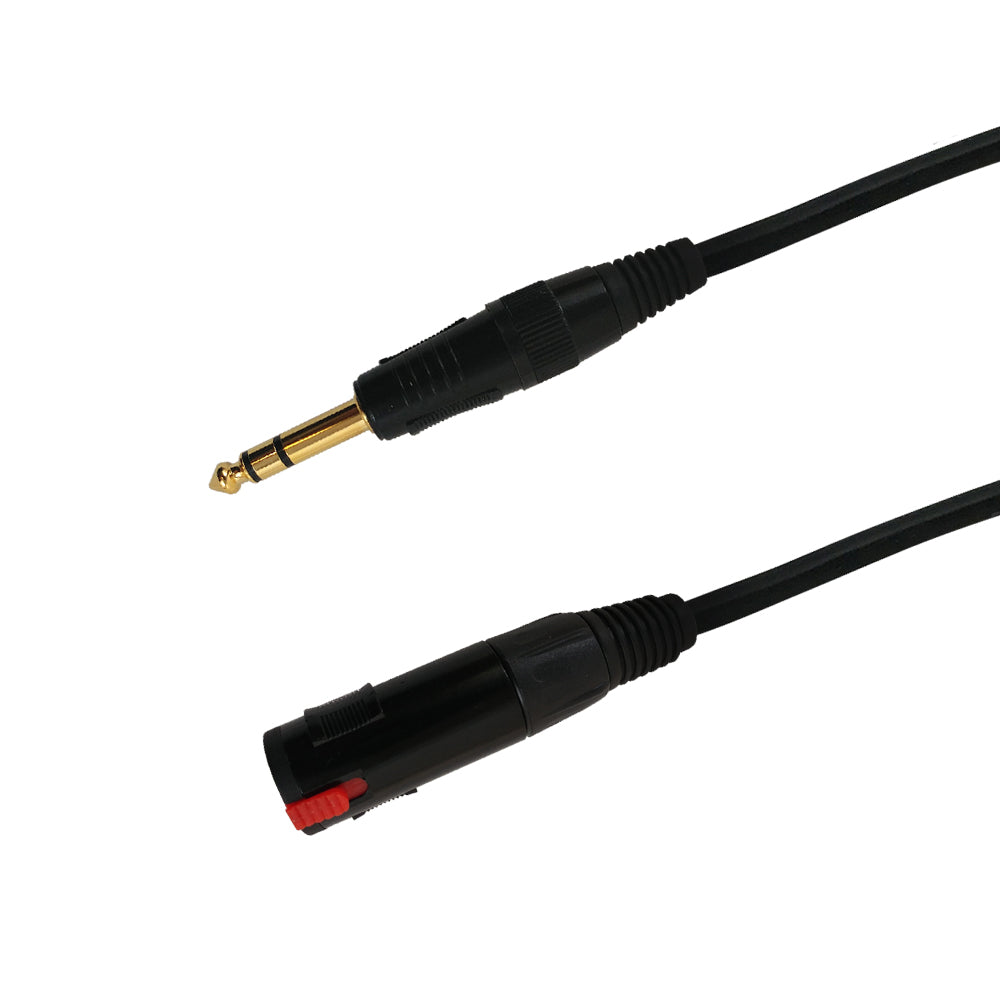

This audio cable has a 1/4 inch male on one end and 1/4 inch female on the other. It is typically used to extend a 1/4 inch TRS balanced cable or to extend hard-wired stereo headphones.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 5mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Tinned Copper Braid + 100% Mylar Foil |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | 1/4 Inch TRS Male |
| Connector B | 1/4 Inch TRS Female |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TRS3-01.5 | 1.5ft | 0.11 lb |
| TRS3-03 | 3ft | 0.19 lb |
| TRS3-06 | 6ft | 0.34 lb |
| TRS3-10 | 10ft | 0.53 lb |
| TRS3-15 | 15ft | 0.77 lb |
| TRS3-25 | 25ft | 1.25 lb |
| TRS3-35 | 35ft | 1.73 lb |
| TRS3-50 | 50ft | 2.45 lb |
