Description

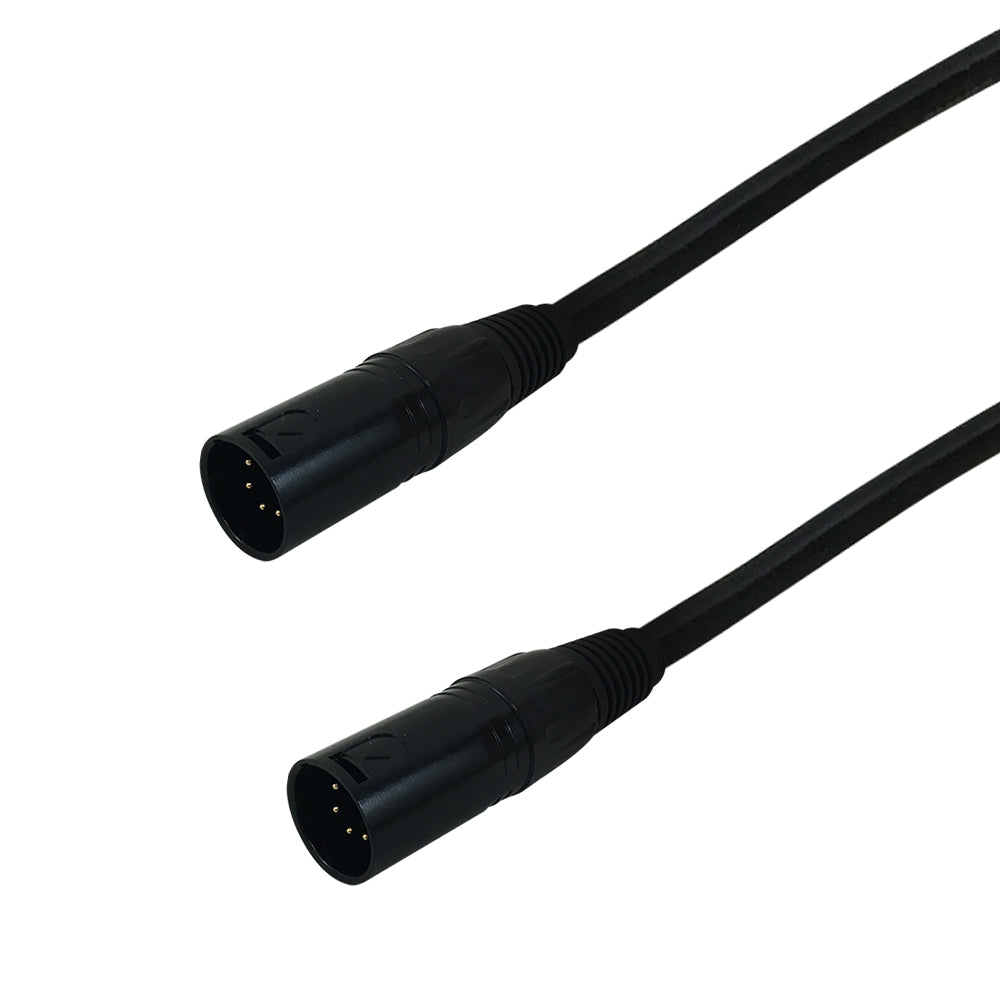

This premium 5-pin DMX lighting cable has a 5-pin XLR male on one end and a 5-pin XLR male on the other. It is typically used to control stage lighting and effects.
- Constructed true 110 ohm cable for quick response time movement
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- 100% aluminum/mylar foil shield for superior EMI and RFI rejection
- High quality, heavy duty premium strain relief connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
- Standard Color Kinetics Color Blast® pinout.
| Physical Characteristics | |
|---|---|
| Shielded | 100% aluminum/mylar foil shield, 85% Braid |
| Color | Black Cable, Nickel Plated Connectors, Gold Plated Pins |
| Cable Diameter | 7.1mm |
| Cable Temperature Rating | -30 deg C to 75 deg C |
| Performance | |
| Impedance | 110 Ohms |
| Connectors | |
| Connector A | 5-pin XLR Male |
| Connector B | 5-pin XLR Male |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Lifetime Limited |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 2.75 lbs | 3.52 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| DMX-5MM-01.5 | 1.5ft | 0.11 lb |
| DMX-5MM-03 | 3ft | 0.19 lb |
| DMX-5MM-06 | 6ft | 0.34 lb |
| DMX-5MM-10 | 10ft | 0.53 lb |
| DMX-5MM-15 | 15ft | 0.77 lb |
| DMX-5MM-25 | 25ft | 1.25 lb |
| DMX-5MM-35 | 35ft | 1.73 lb |
| DMX-5MM-50 | 50ft | 2.45 lb |
| DMX-5MM-75 | 75ft | 3.65 lb |
| DMX-5MM-100 | 100ft | 4.85 lb |
