Description
- Description
- Spec Sheets
- Lead-time
- Product Weights
Description

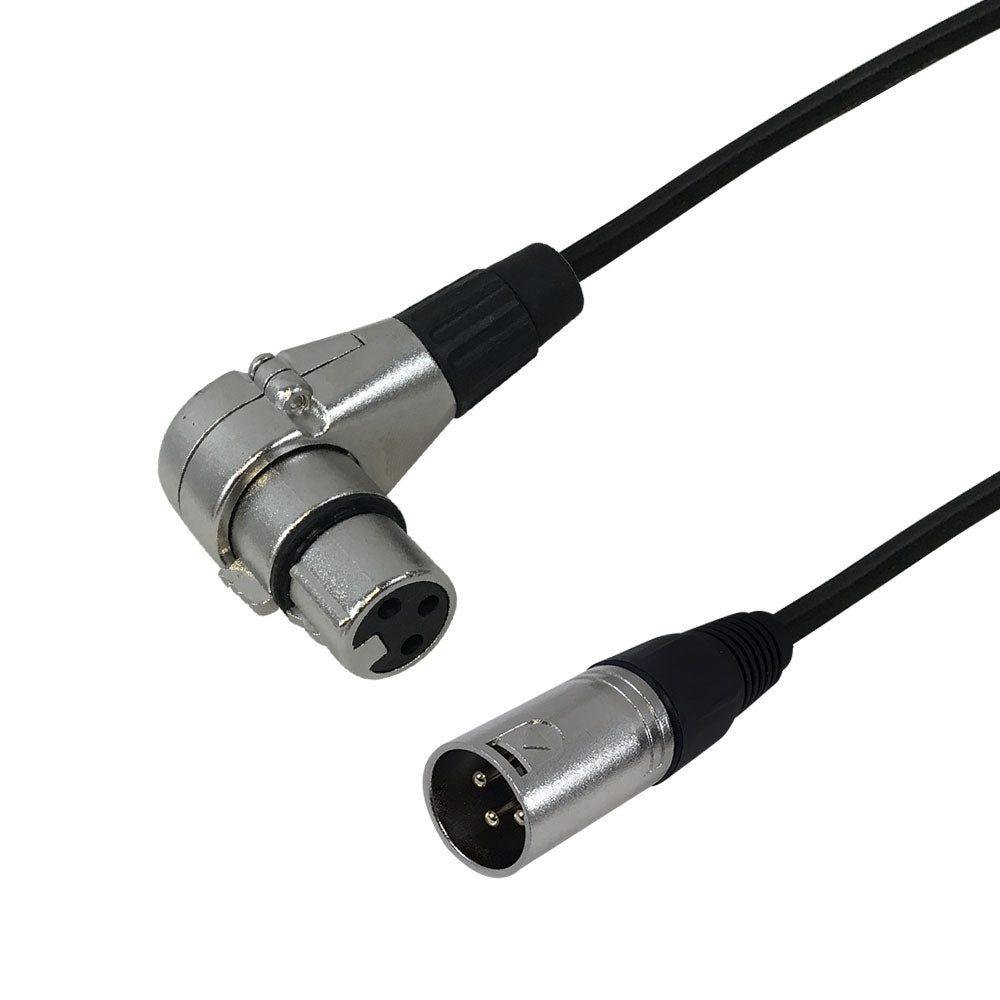

This premium stereo audio cable has a XLR male connection on one end and a XLR right angle female connection on the other end. It is typically used to connect audio devices such as powered speakers to mixers or as a microphone cable.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Diameter | 5.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | 1 - XLR Male |
| Connector B | 1 - XLR Right Angle Female |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 2.50 lbs | 3.25 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| XLRMFR-01.5 | 1.5ft | 0.11 lb |
| XLRMFR-03 | 3ft | 0.19 lb |
| XLRMFR-06 | 6ft | 0.34 lb |
| XLRMFR-10 | 10ft | 0.53 lb |
| XLRMFR-15 | 15ft | 0.77 lb |
| XLRMFR-25 | 25ft | 1.25 lb |
| XLRMFR-35 | 35ft | 1.73 lb |
| XLRMFR-50 | 50ft | 2.45 lb |
| XLRMFR-75 | 75ft | 3.65 lb |
| XLRMFR-100 | 100ft | 4.85 lb |
