Premium Phantom DB25 to 8 x RCA Male 8-channel Snake cable Tascam pinout
Premium Phantom DB25 to 8 x RCA Male 8-channel Snake cable Tascam pinout

Premium Phantom Cables DB25 Male to 8 x RCA Male 8-channel Snake cable (Tascam pinout)

Snake CablesSKU: S8-25-RCA-03TAS
Length: 3ft
Price:
$75.20 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com



Description

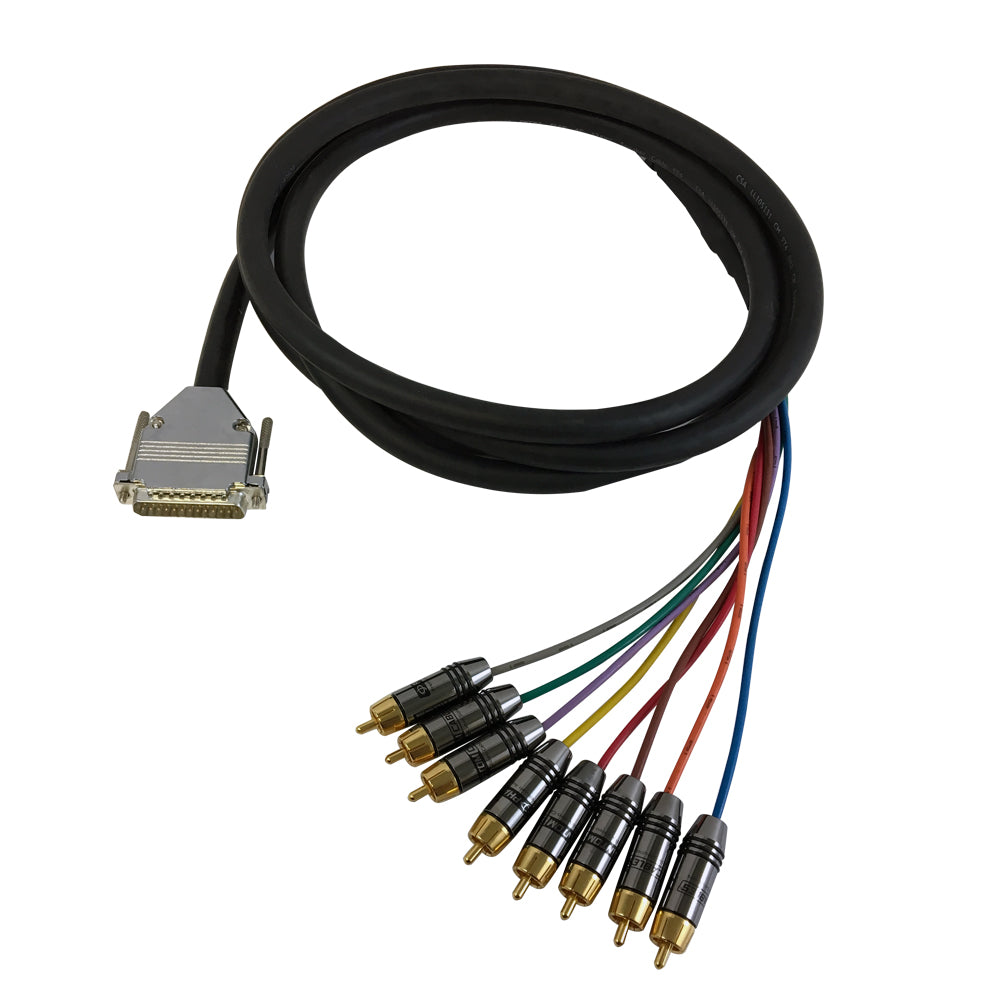

This audio snake cable has a DB25 male on one end and eight RCA males on the other. It has a TASCAM pinout and is typically used to connect a 7.1 surround sound source to a preamp or receiver.

  • Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
  • Dual 100% aluminum Mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Contact Plating (DB25) Gold
Connector Plating Gold
Cable Shielding Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil
Wire Gauge 24AWG
Pinout TASCAM
Connectors
Connector A 1 - DB25 Male
Connector B 8 - RCA Male
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft
1.95 lbs 2.40 lbs 3.00 lbs 3.75 lbs 5.25 lbs 6.75 lbs 9.00 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
S8-25-RCA-03TAS 3ft 0.19 lb
S8-25-RCA-06TAS 6ft 0.34 lb
S8-25-RCA-10TAS 10ft 0.53 lb
S8-25-RCA-15TAS 15ft 0.77 lb
S8-25-RCA-25TAS 25ft 1.25 lb
S8-25-RCA-35TAS 35ft 1.73 lb
S8-25-RCA-50TAS 50ft 2.45 lb
