Description

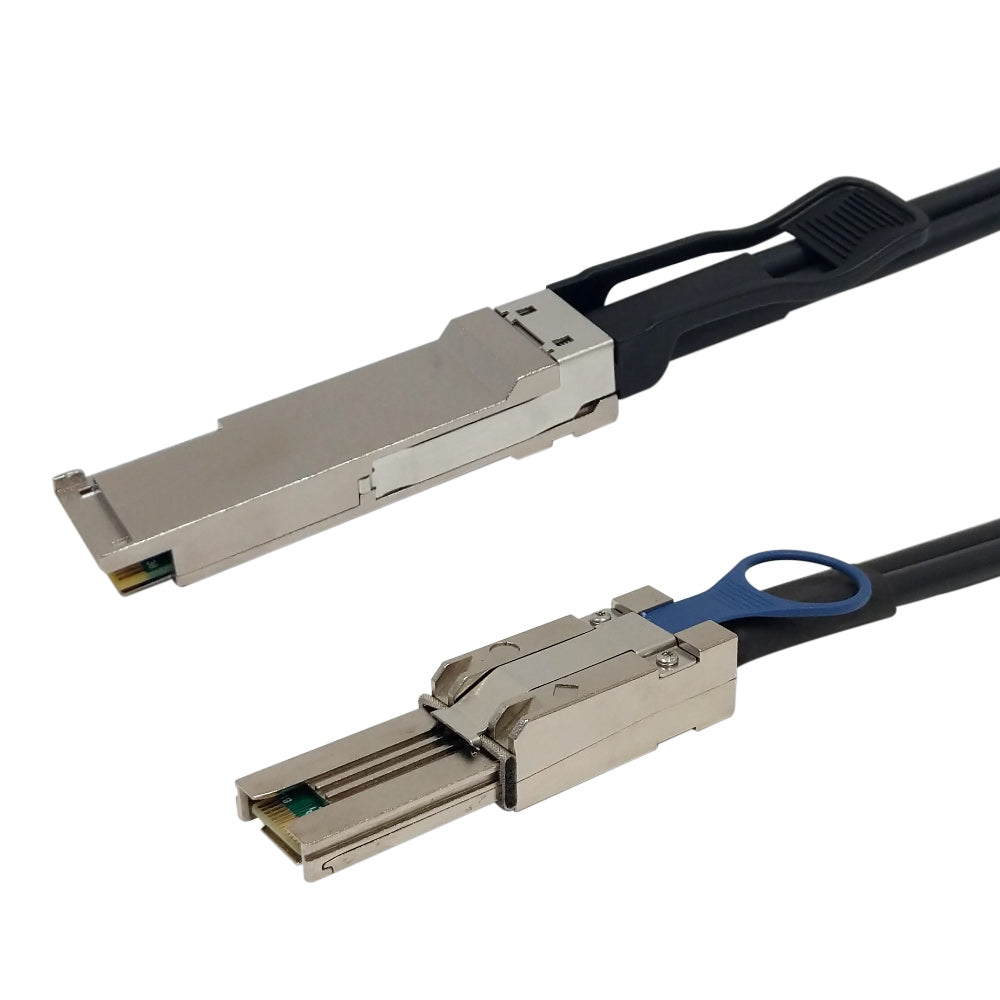

This Mini-SAS/QSFP+ InfiniBand cable has a QSFP+ (SFF-8436) connector on one end and a Mini-SAS (SFF-8088) connectors on the other. It is typically used to connect newer generation 40G QSFP enabled devices to external Mini-SAS drives, servers and switches.
| Physical Characteristics | |
|---|---|
| Impedance | 100±5 ohm |
| Application | SAS6G Use With QSFP+ Appliance |
| Wire Gauge | 30AWG |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | QSFP+ (SFF-8436) |
| Connector B | External Mini-SAS (SFF-8088) |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1m | 2m | 3m |
|---|---|---|
| 0.35 lbs 0.1kg] | 0.5 lbs [0.2kg] | 0.65 lbs [0.2kg] |
Product Weights
| SKU | Options | Weight |
| MS-610-1M | 1m | 0.5 lb |
| MS-610-2M | 2m | 0.65 lb |
| MS-610-3M | 3m | 1.2 lb |
