Description

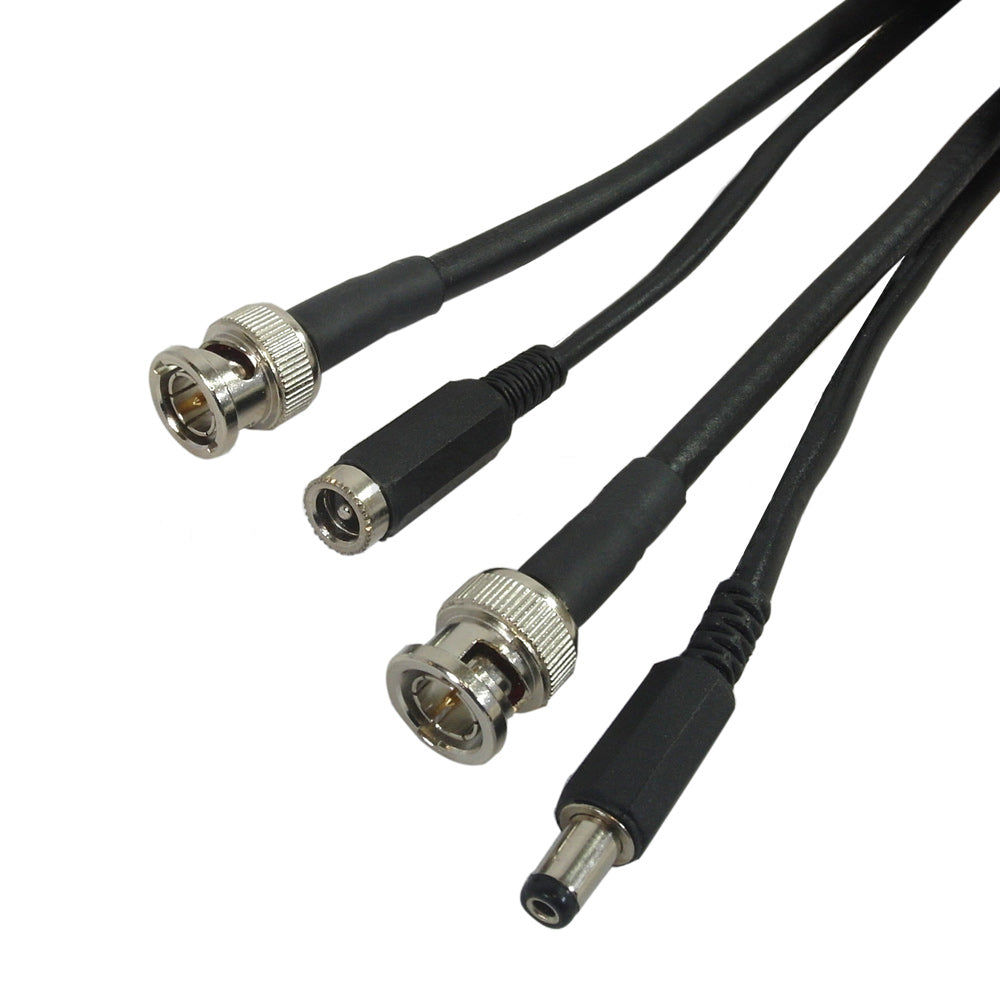

This cable consists of a BNC male plus a DC power plug (2.1mm) on one end and a BNC male plus a DC power receptacle (2.1mm) on the other end. It is typically used to connect a security camera to a DVR.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Type | RG59 + 2C 18AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 |
| Cable Shielding | 95% Braid |
| Connector(s) | |
| Connector A | BNC Male |
| Connector B | DC Power Plug Male (2.1mm) |
| Connector C | BNC Male |
| Connector D | DC Power Plug Female (2.1mm) |
| Performance | |
| Impedance | 75 Ohm |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | 175ft | 200ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.60 lbs | 0.96 lbs | 1.33 lbs | 1.88 lbs | 2.79 lbs | 3.71 lbs | 4.62 lbs | 5.54 lbs | 6.45 lbs | 7.36 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| BNC-DC59PH-15 | 15ft | 0.77 lb |
| BNC-DC59PH-25 | 25ft | 1.25 lb |
| BNC-DC59PH-35 | 35ft | 1.73 lb |
| BNC-DC59PH-50 | 50ft | 2.45 lb |
| BNC-DC59PH-75 | 75ft | 3.65 lb |
| BNC-DC59PH-100 | 100ft | 4.85 lb |
| BNC-DC59PH-125 | 125ft | 6.05 lb |
| BNC-DC59PH-150 | 150ft | 7.25 lb |
| BNC-DC59PH-175 | 175ft | 8.45 lb |
| BNC-DC59PH-200 | 200ft | 9.65 lb |
