Premium Phantom Cables RJ12 Modular Telephone Cable Cross-Wired 6P6C

Modular Line CordsSKU: PH-210-01BK
Length: 1ft
Color: Black
Price:
$1.38 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com



Description

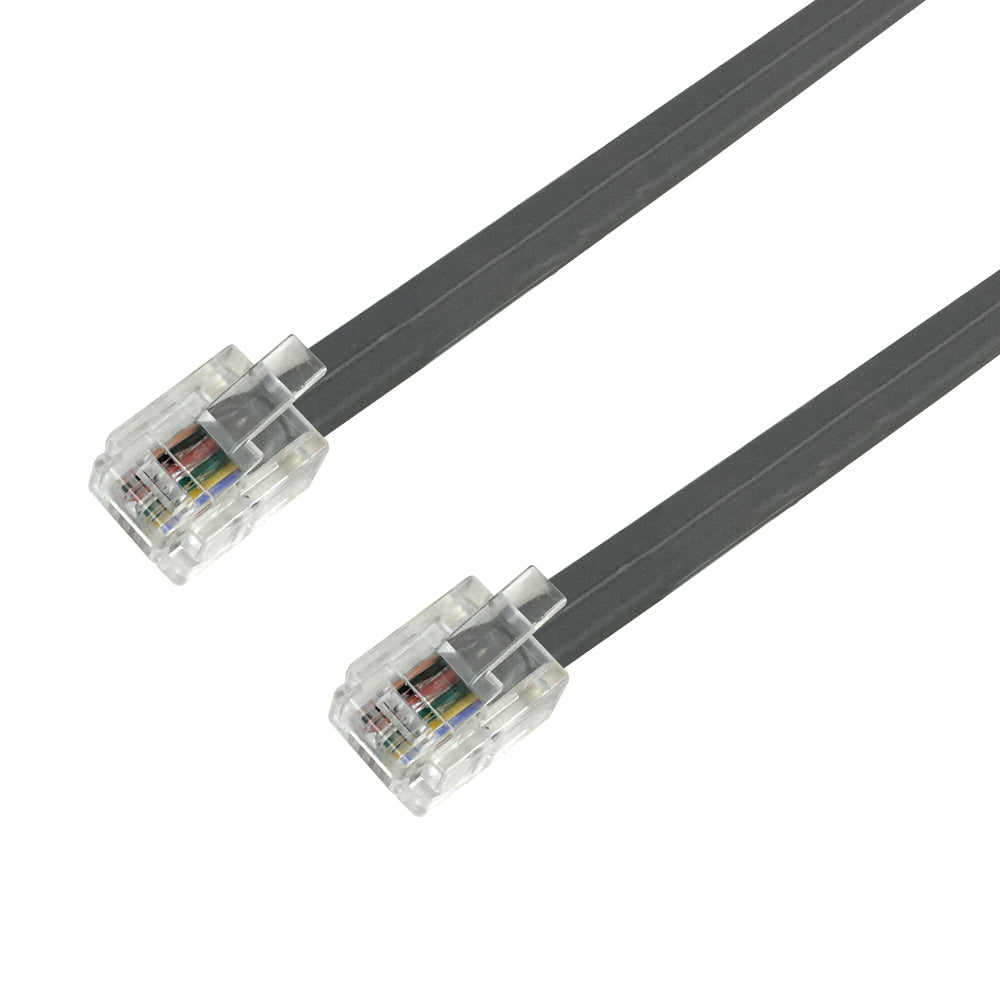

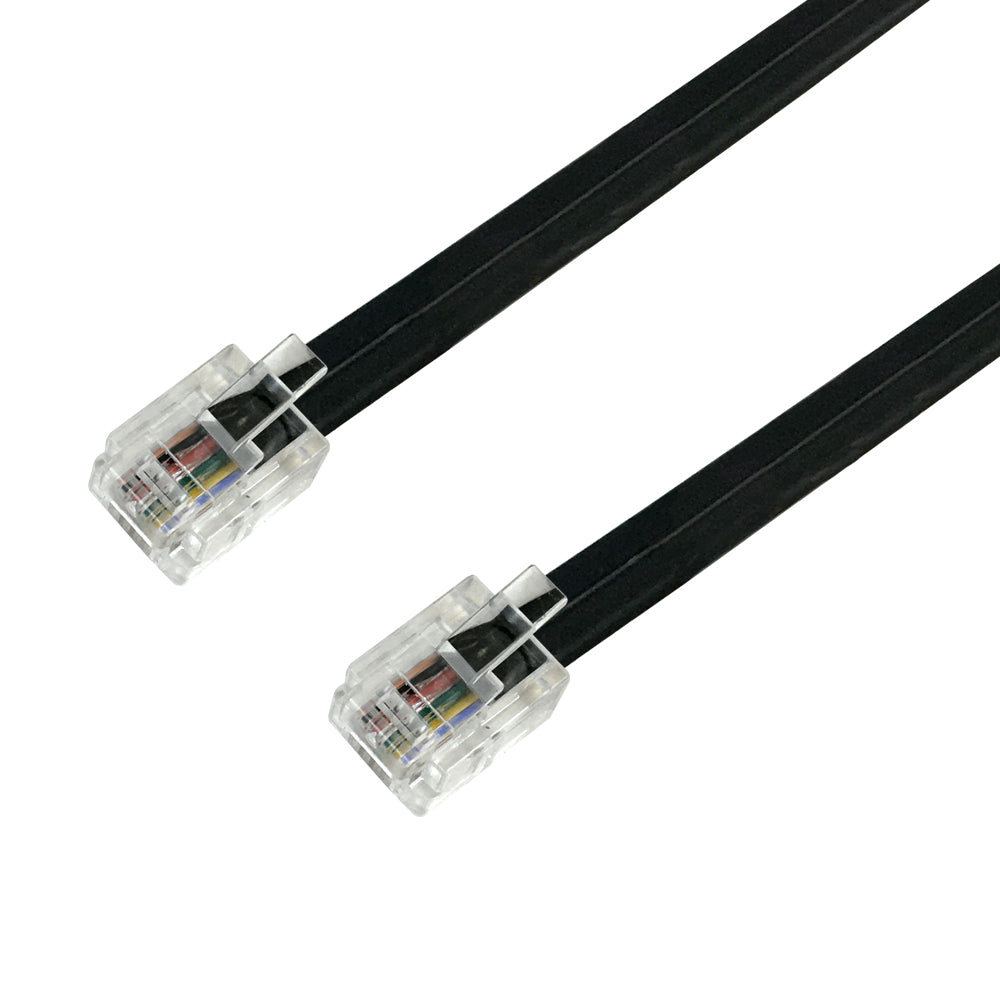

This modular flat phone cable consists of a RJ12 (6P6C) male plug on both ends and has cross-over wiring. It is typically used in phone line applications such as connecting a telephone to a wall outlet.

Physical Characteristics
Color Black/Silver Satin
Contact Plating Gold
Cable Diameter 6.85mm x 2.5mm
Wire Gauge 26AWG
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating VW-1
Temperature Rating 60 deg C
Cable Voltage Rating 150V
Wiring Reverse (1-6, 2-5, 3-4, 4-3, 5-2, 6-1)
Connector(s)
Connector A RJ12 (6P6C) Male
Connector B RJ12 (6P6C) Male
Approvals
UL Yes - Cable
cUL Yes - Cable
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1 Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 5ft 7ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft 125ft 150ft
0.01 lbs 0.03 lbs 0.05 lbs 0.07 lbs 0.10 lbs 0.15 lbs 0.25 lbs 0.35 lbs 0.50 lbs 0.75 lbs 1.00 lbs 1.25 lbs 1.50 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
PH-210-01BK 1ft / Black 0.07 lb
PH-210-01SL 1ft / Silver 0.07 lb
PH-210-03BK 3ft / Black 0.15 lb
PH-210-03SL 3ft / Silver 0.15 lb
PH-210-05BK 5ft / Black 0.2 lb
PH-210-05SL 5ft / Silver 0.2 lb
PH-210-07BK 7ft / Black 0.24 lb
PH-210-07SL 7ft / Silver 0.24 lb
PH-210-10BK 10ft / Black 0.33 lb
PH-210-10SL 10ft / Silver 0.33 lb
PH-210-15BK 15ft / Black 0.5 lb
PH-210-15SL 15ft / Silver 0.5 lb
PH-210-25BK 25ft / Black 0.77 lb
PH-210-25SL 25ft / Silver 0.77 lb
PH-210-35BK 35ft / Black 1.1 lb
PH-210-35SL 35ft / Silver 1.1 lb
PH-210-50BK 50ft / Black 1.55 lb
PH-210-50SL 50ft / Silver 1.55 lb
PH-210-75BK 75ft / Black 2.26 lb
PH-210-75SL 75ft / Silver 2.26 lb
PH-210-100BK 100ft / Black 3.0 lb
PH-210-100SL 100ft / Silver 3.0 lb
PH-210-125BK 125ft / Black 5.0 lb
PH-210-125SL 125ft / Silver 5.0 lb
PH-210-150BK 150ft / Black 6.2 lb
PH-210-150SL 150ft / Silver 6.2 lb
