Description
Overview

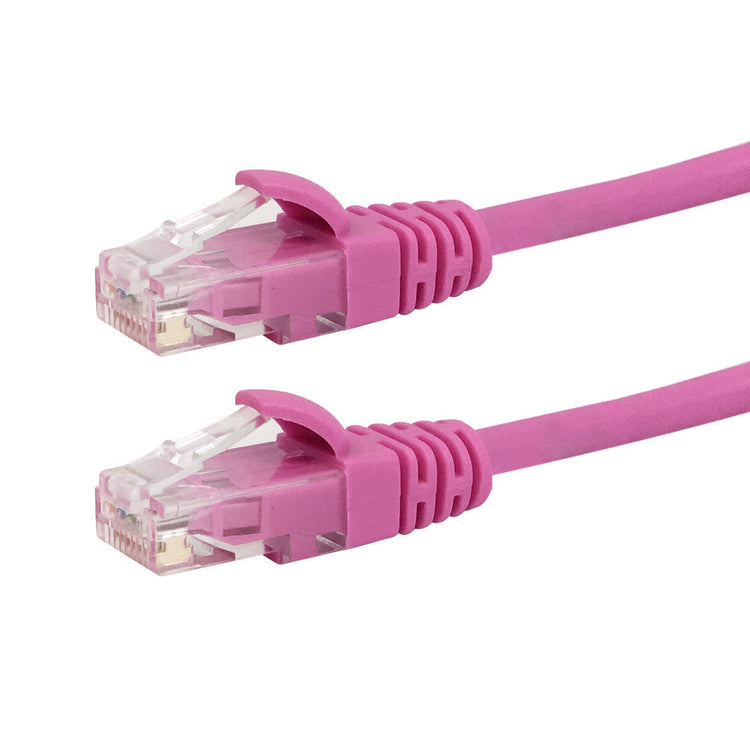

This Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat5e patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT5e patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT5e Patch Cable Test | Yes |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 14ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.40 lbs | 0.43 lbs | 0.60 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT5E-01PK | 1ft | 0.07 lb |
| CAT5E-03PK | 3ft | 0.15 lb |
| CAT5E-05PK | 5ft | 0.2 lb |
| CAT5E-07PK | 7ft | 0.24 lb |
| CAT5E-10PK | 10ft | 0.33 lb |
| CAT5E-14PK | 14ft | 0.46 lb |
| CAT5E-25PK | 25ft | 0.77 lb |
| CAT5E-35PK | 35ft | 1.1 lb |
| CAT5E-50PK | 50ft | 1.55 lb |
| CAT5E-100PK | 100ft | 3.0 lb |
