Description
Overview

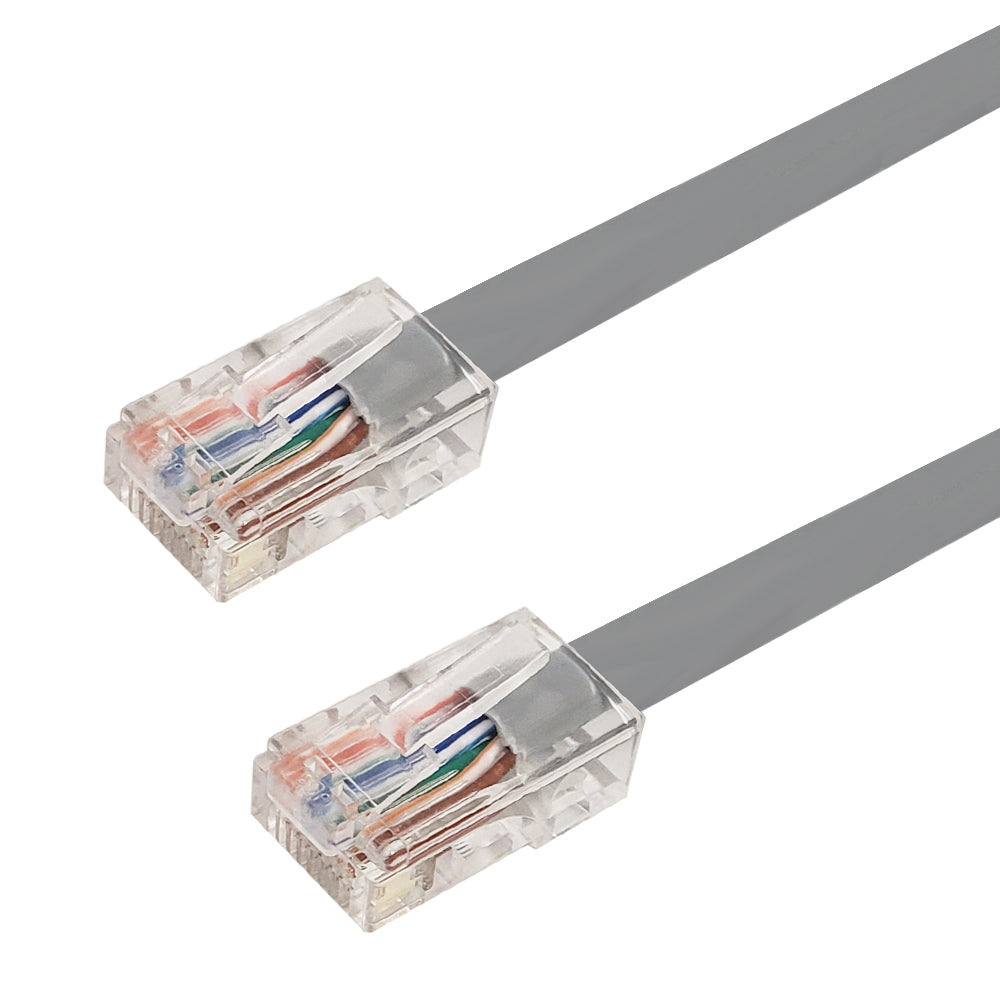

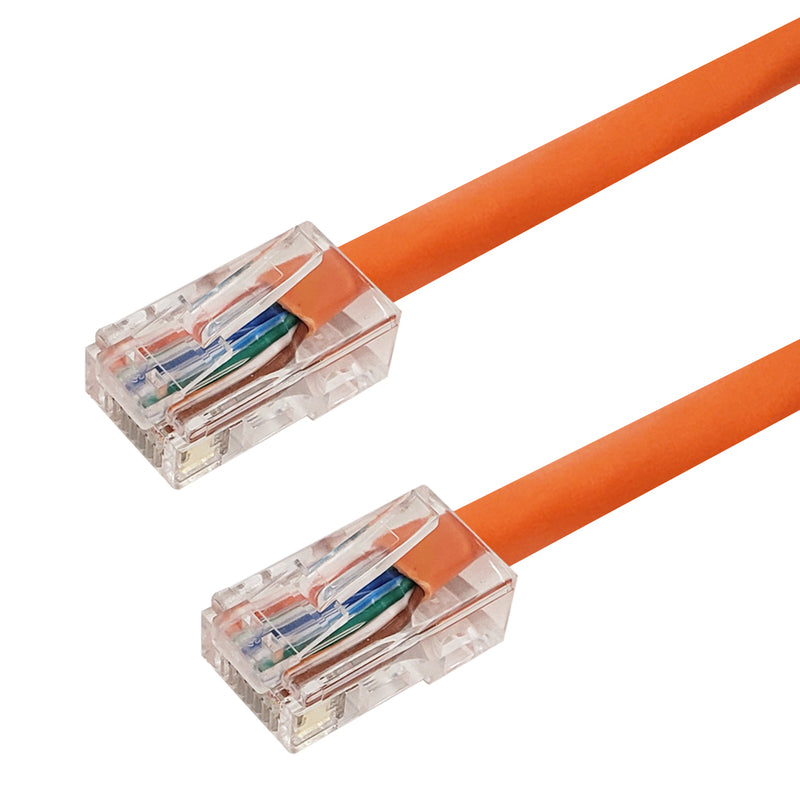

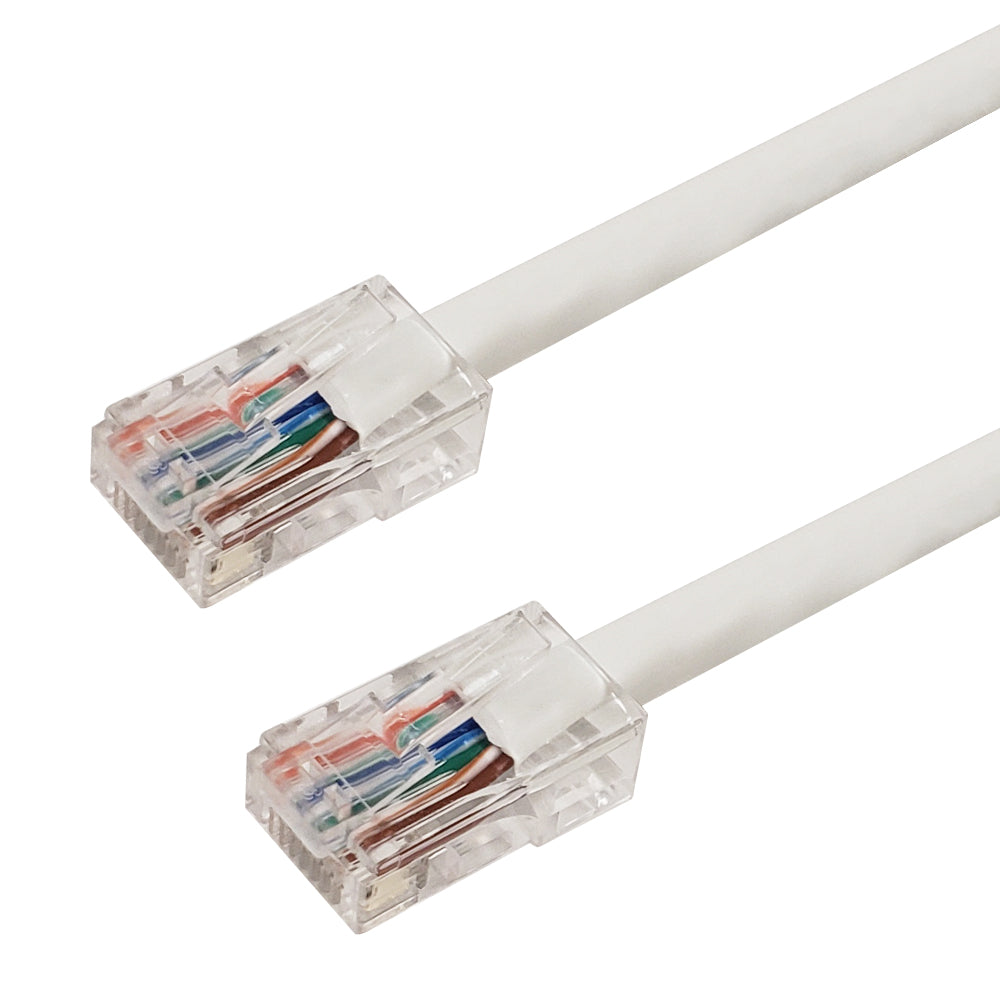

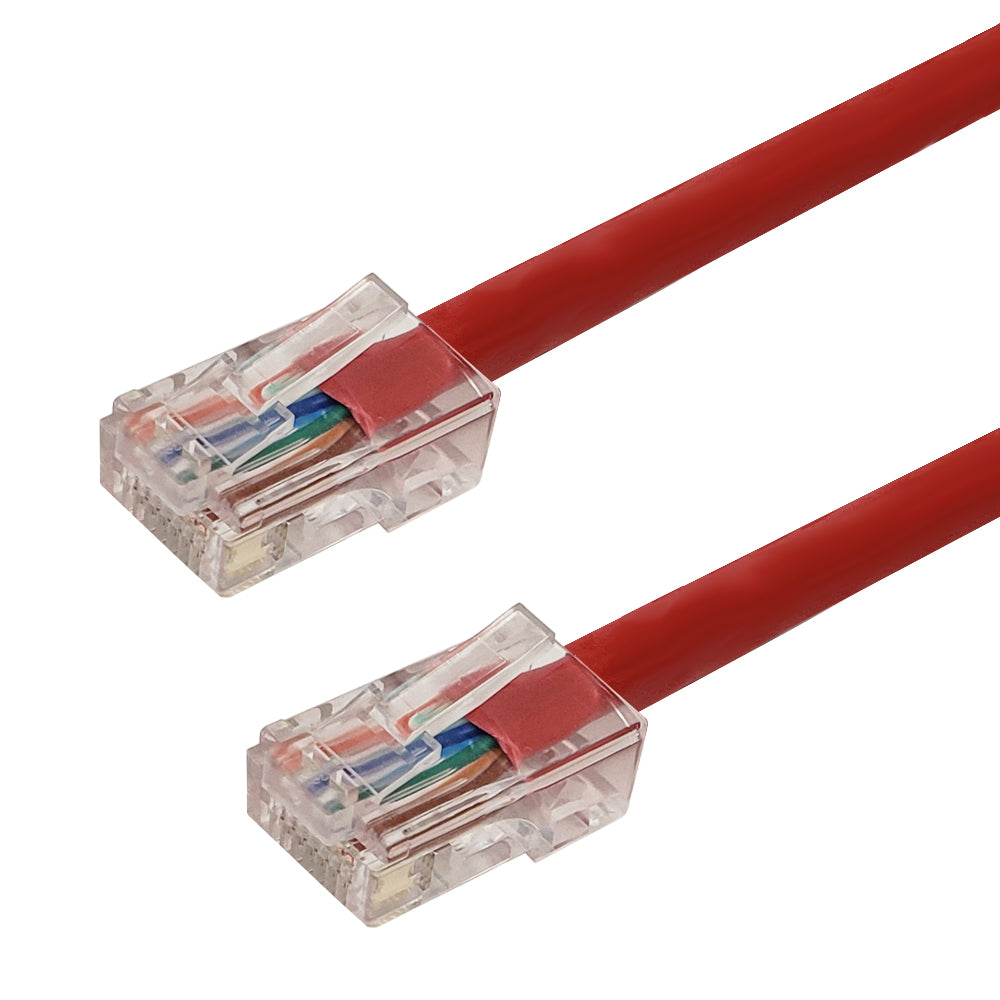

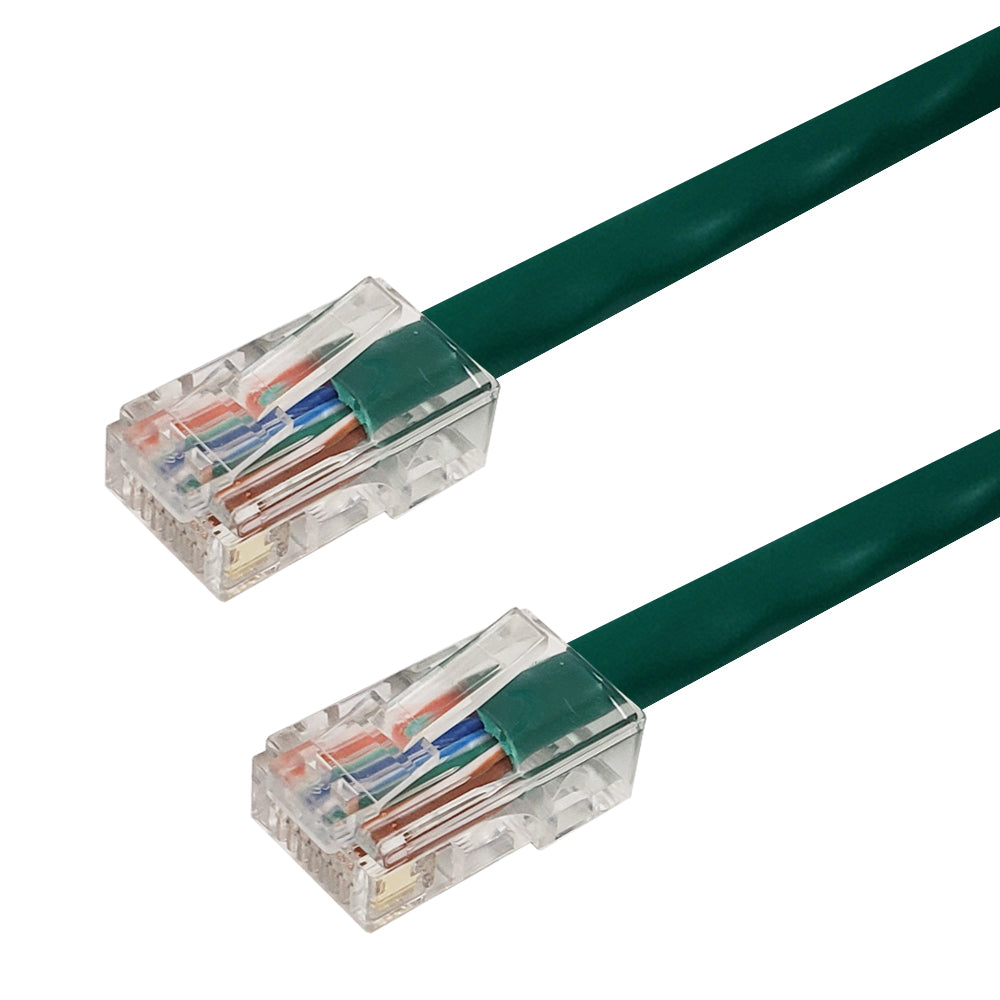

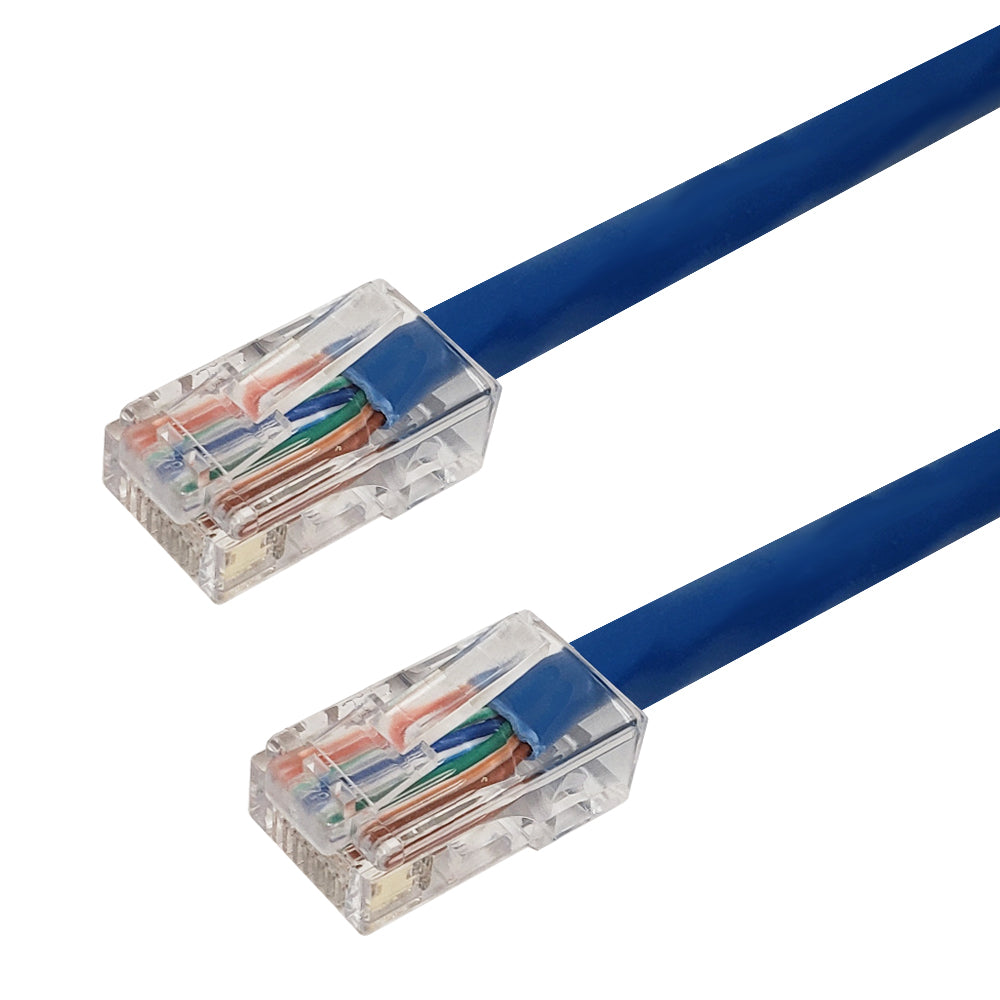

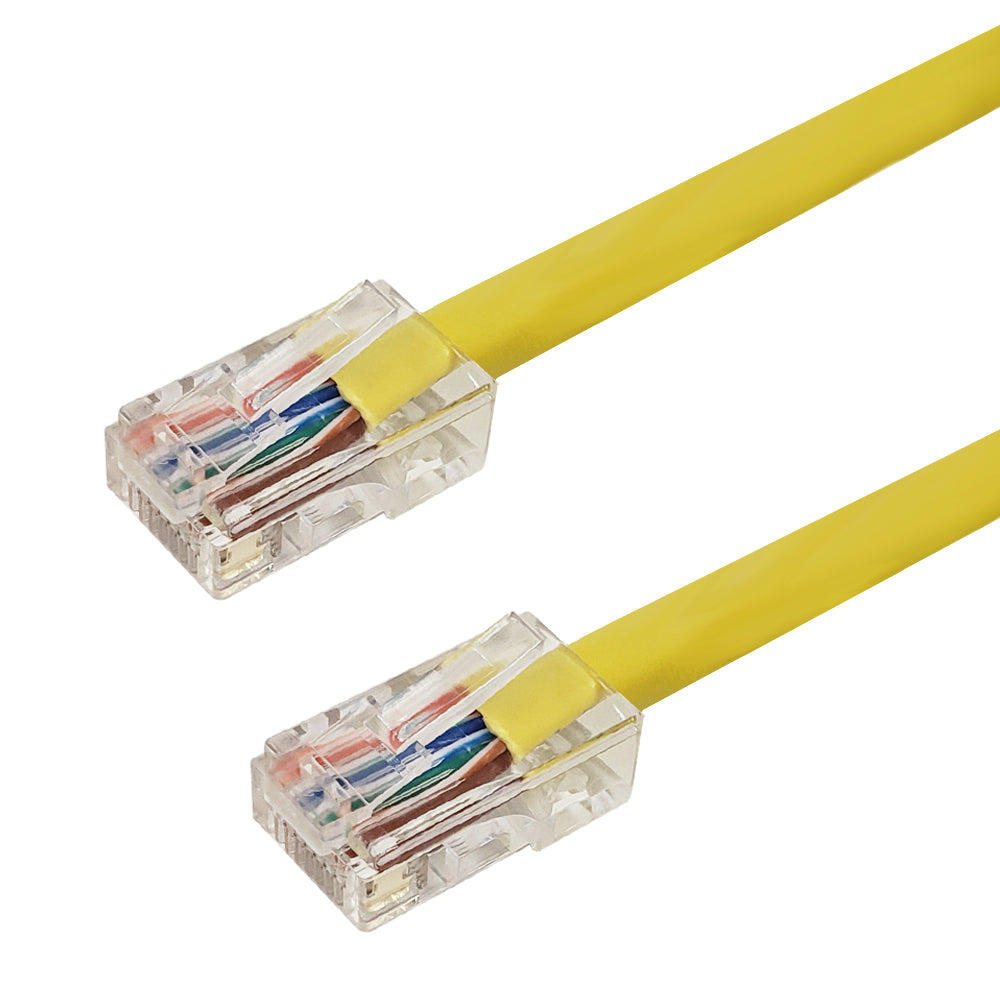

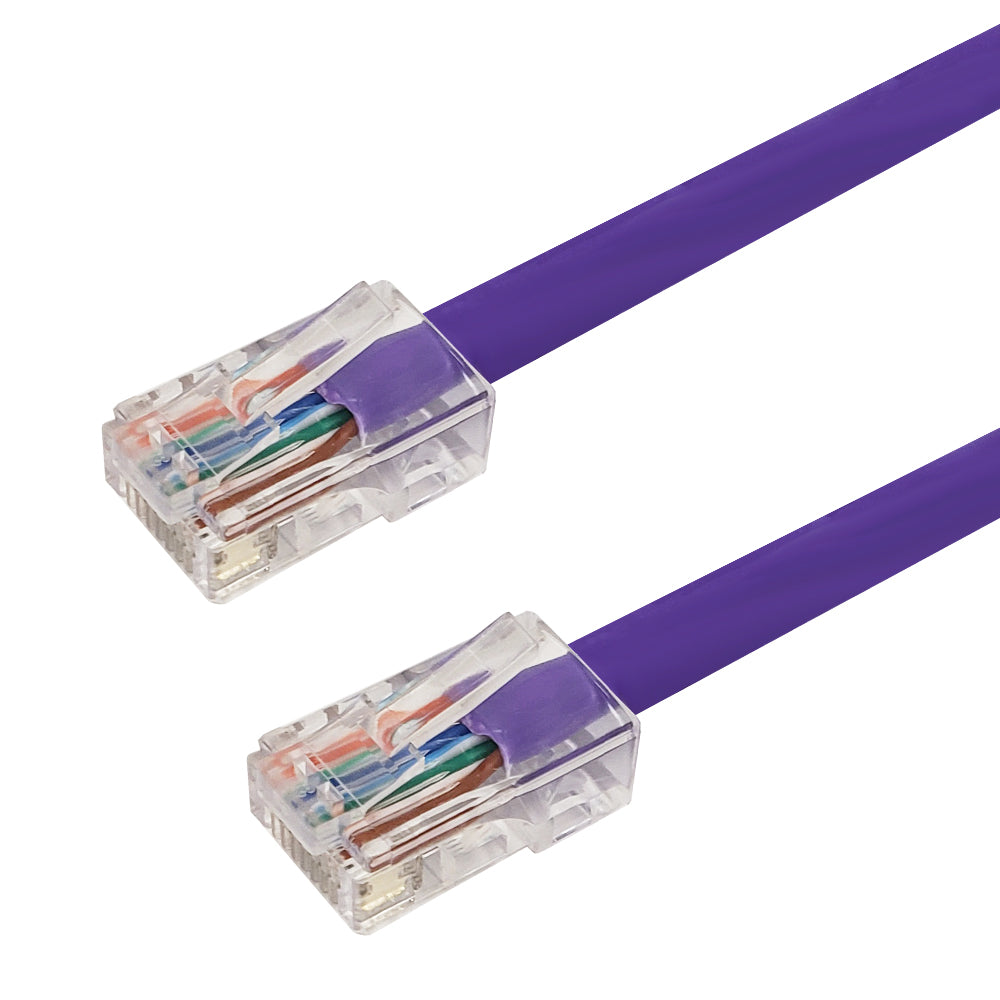

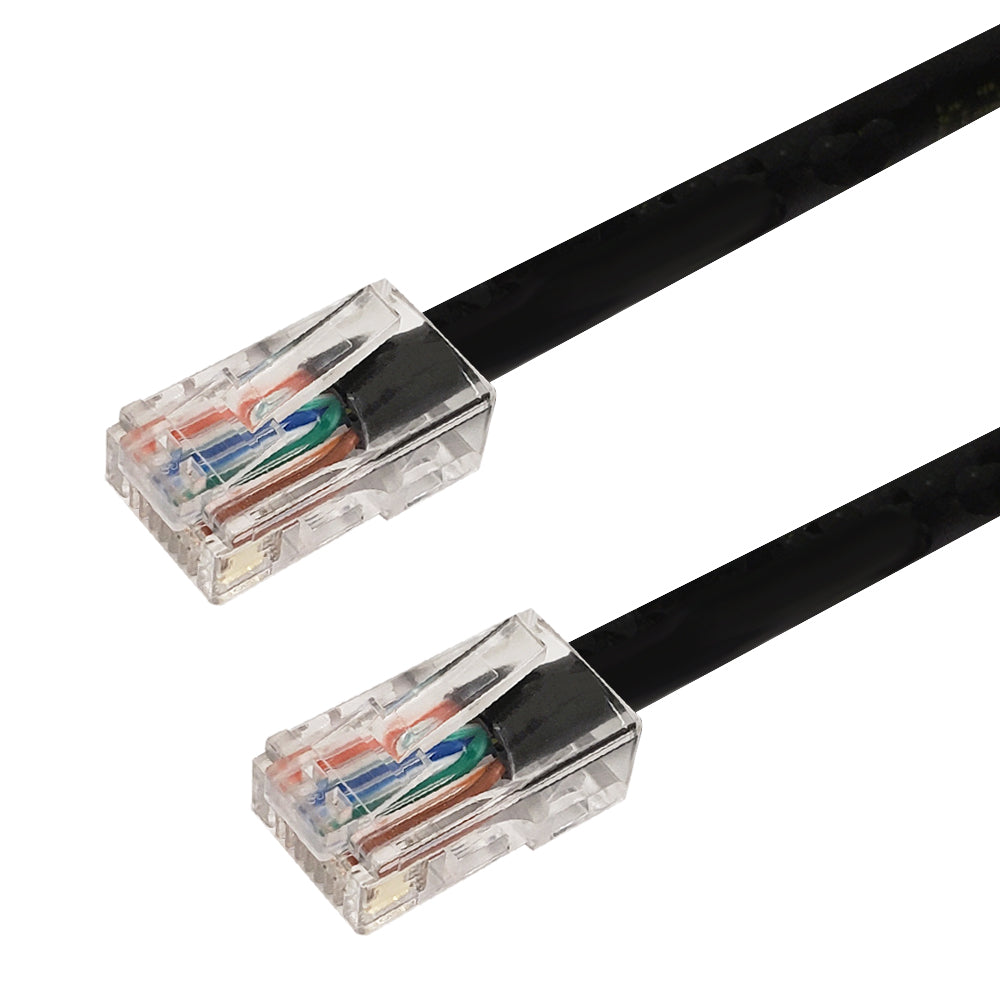

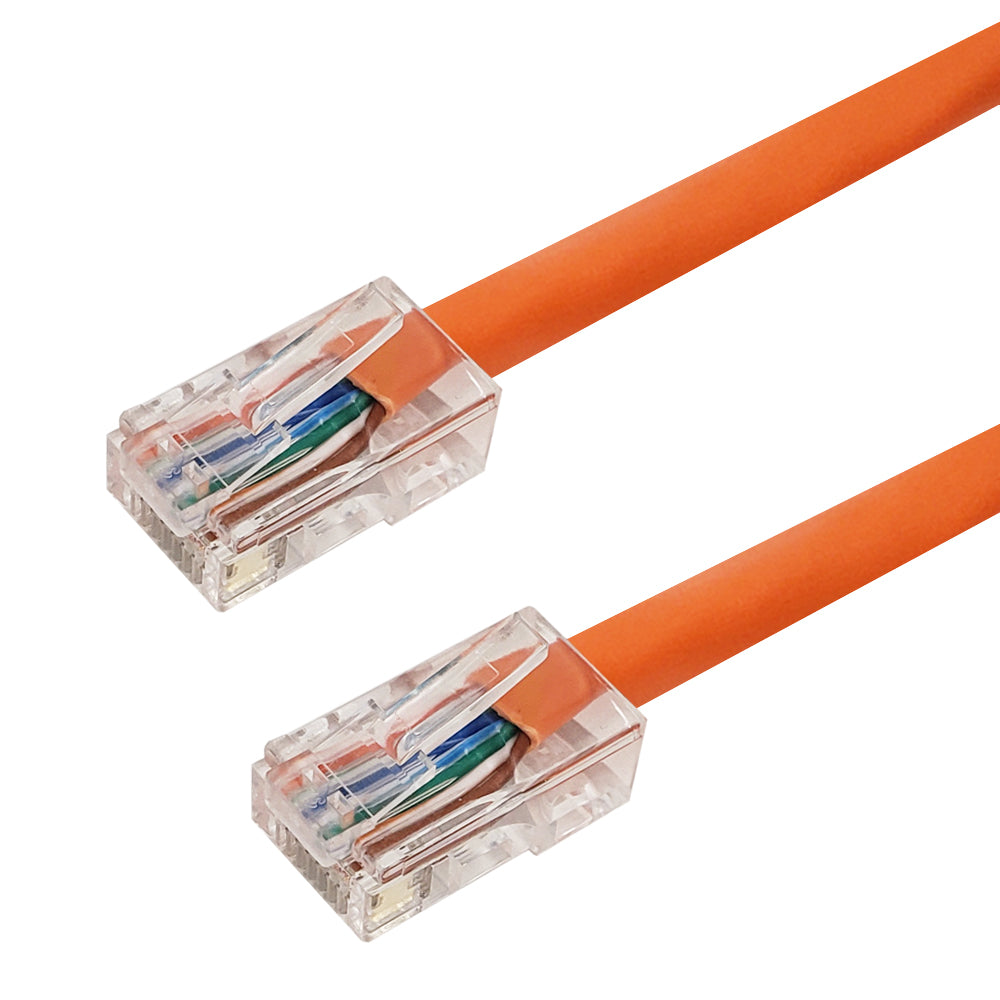

This Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Our cables are 100% continuity tested and batch tested to pass a CAT5e Fluke channel test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.3mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CM |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | +75 deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| CAT5e FlukeĀ® Channel Test | Yes |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| TIA/EIA - 568 - C.2 | Yes |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Country of Origin | Vietnam |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.43 lbs | 0.60 lbs | 0.80 lbs | 1.10 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT5ENB-01BK | 1ft / Black | 0.07 lb |
| CAT5ENB-02BK | 2ft / Black | 0.1 lb |
| CAT5ENB-03BK | 3ft / Black | 0.15 lb |
| CAT5ENB-05BK | 5ft / Black | 0.2 lb |
| CAT5ENB-07BK | 7ft / Black | 0.24 lb |
| CAT5ENB-10BK | 10ft / Black | 0.33 lb |
| CAT5ENB-15BK | 15ft / Black | 0.5 lb |
| CAT5ENB-25BK | 25ft / Black | 0.77 lb |
| CAT5ENB-35BK | 35ft / Black | 1.1 lb |
| CAT5ENB-50BK | 50ft / Black | 1.55 lb |
| CAT5ENB-01BL | 1ft / Blue | 0.07 lb |
| CAT5ENB-02BL | 2ft / Blue | 0.1 lb |
| CAT5ENB-03BL | 3ft / Blue | 0.15 lb |
| CAT5ENB-05BL | 5ft / Blue | 0.2 lb |
| CAT5ENB-07BL | 7ft / Blue | 0.24 lb |
| CAT5ENB-10BL | 10ft / Blue | 0.33 lb |
| CAT5ENB-15BL | 15ft / Blue | 0.5 lb |
| CAT5ENB-25BL | 25ft / Blue | 0.77 lb |
| CAT5ENB-35BL | 35ft / Blue | 1.1 lb |
| CAT5ENB-50BL | 50ft / Blue | 1.55 lb |
| CAT5ENB-01GN | 1ft / Green | 0.07 lb |
| CAT5ENB-02GN | 2ft / Green | 0.1 lb |
| CAT5ENB-03GN | 3ft / Green | 0.15 lb |
| CAT5ENB-05GN | 5ft / Green | 0.2 lb |
| CAT5ENB-07GN | 7ft / Green | 0.24 lb |
| CAT5ENB-10GN | 10ft / Green | 0.33 lb |
| CAT5ENB-15GN | 15ft / Green | 0.5 lb |
| CAT5ENB-25GN | 25ft / Green | 0.77 lb |
| CAT5ENB-35GN | 35ft / Green | 1.1 lb |
| CAT5ENB-50GN | 50ft / Green | 1.55 lb |
| CAT5ENB-01GY | 1ft / Grey | 0.07 lb |
| CAT5ENB-02GY | 2ft / Grey | 0.1 lb |
| CAT5ENB-03GY | 3ft / Grey | 0.15 lb |
| CAT5ENB-05GY | 5ft / Grey | 0.2 lb |
| CAT5ENB-07GY | 7ft / Grey | 0.24 lb |
| CAT5ENB-10GY | 10ft / Grey | 0.33 lb |
| CAT5ENB-15GY | 15ft / Grey | 0.5 lb |
| CAT5ENB-25GY | 25ft / Grey | 0.77 lb |
| CAT5ENB-35GY | 35ft / Grey | 1.1 lb |
| CAT5ENB-50GY | 50ft / Grey | 1.55 lb |
| CAT5ENB-01OR | 1ft / Orange | 0.07 lb |
| CAT5ENB-02OR | 2ft / Orange | 0.1 lb |
| CAT5ENB-03OR | 3ft / Orange | 0.15 lb |
| CAT5ENB-05OR | 5ft / Orange | 0.2 lb |
| CAT5ENB-07OR | 7ft / Orange | 0.24 lb |
| CAT5ENB-10OR | 10ft / Orange | 0.33 lb |
| CAT5ENB-15OR | 15ft / Orange | 0.5 lb |
| CAT5ENB-25OR | 25ft / Orange | 0.77 lb |
| CAT5ENB-35OR | 35ft / Orange | 1.1 lb |
| CAT5ENB-50OR | 50ft / Orange | 1.55 lb |
| CAT5ENB-01PR | 1ft / Purple | 0.07 lb |
| CAT5ENB-02PR | 2ft / Purple | 0.1 lb |
| CAT5ENB-03PR | 3ft / Purple | 0.15 lb |
| CAT5ENB-05PR | 5ft / Purple | 0.2 lb |
| CAT5ENB-07PR | 7ft / Purple | 0.24 lb |
| CAT5ENB-10PR | 10ft / Purple | 0.33 lb |
| CAT5ENB-15PR | 15ft / Purple | 0.5 lb |
| CAT5ENB-25PR | 25ft / Purple | 0.77 lb |
| CAT5ENB-35PR | 35ft / Purple | 1.1 lb |
| CAT5ENB-50PR | 50ft / Purple | 1.55 lb |
| CAT5ENB-01RD | 1ft / Red | 0.07 lb |
| CAT5ENB-02RD | 2ft / Red | 0.1 lb |
| CAT5ENB-03RD | 3ft / Red | 0.15 lb |
| CAT5ENB-05RD | 5ft / Red | 0.2 lb |
| CAT5ENB-07RD | 7ft / Red | 0.24 lb |
| CAT5ENB-10RD | 10ft / Red | 0.33 lb |
| CAT5ENB-15RD | 15ft / Red | 0.5 lb |
| CAT5ENB-25RD | 25ft / Red | 0.77 lb |
| CAT5ENB-35RD | 35ft / Red | 1.1 lb |
| CAT5ENB-50RD | 50ft / Red | 1.55 lb |
| CAT5ENB-01WH | 1ft / White | 0.07 lb |
| CAT5ENB-02WH | 2ft / White | 0.1 lb |
| CAT5ENB-03WH | 3ft / White | 0.15 lb |
| CAT5ENB-05WH | 5ft / White | 0.2 lb |
| CAT5ENB-07WH | 7ft / White | 0.24 lb |
| CAT5ENB-10WH | 10ft / White | 0.33 lb |
| CAT5ENB-15WH | 15ft / White | 0.5 lb |
| CAT5ENB-25WH | 25ft / White | 0.77 lb |
| CAT5ENB-35WH | 35ft / White | 1.1 lb |
| CAT5ENB-50WH | 50ft / White | 1.55 lb |
| CAT5ENB-01YL | 1ft / Yellow | 0.07 lb |
| CAT5ENB-02YL | 2ft / Yellow | 0.1 lb |
| CAT5ENB-03YL | 3ft / Yellow | 0.15 lb |
| CAT5ENB-05YL | 5ft / Yellow | 0.2 lb |
| CAT5ENB-07YL | 7ft / Yellow | 0.24 lb |
| CAT5ENB-10YL | 10ft / Yellow | 0.33 lb |
| CAT5ENB-15YL | 15ft / Yellow | 0.5 lb |
| CAT5ENB-25YL | 25ft / Yellow | 0.77 lb |
| CAT5ENB-35YL | 35ft / Yellow | 1.1 lb |
| CAT5ENB-50YL | 50ft / Yellow | 1.55 lb |
