Description
Overview

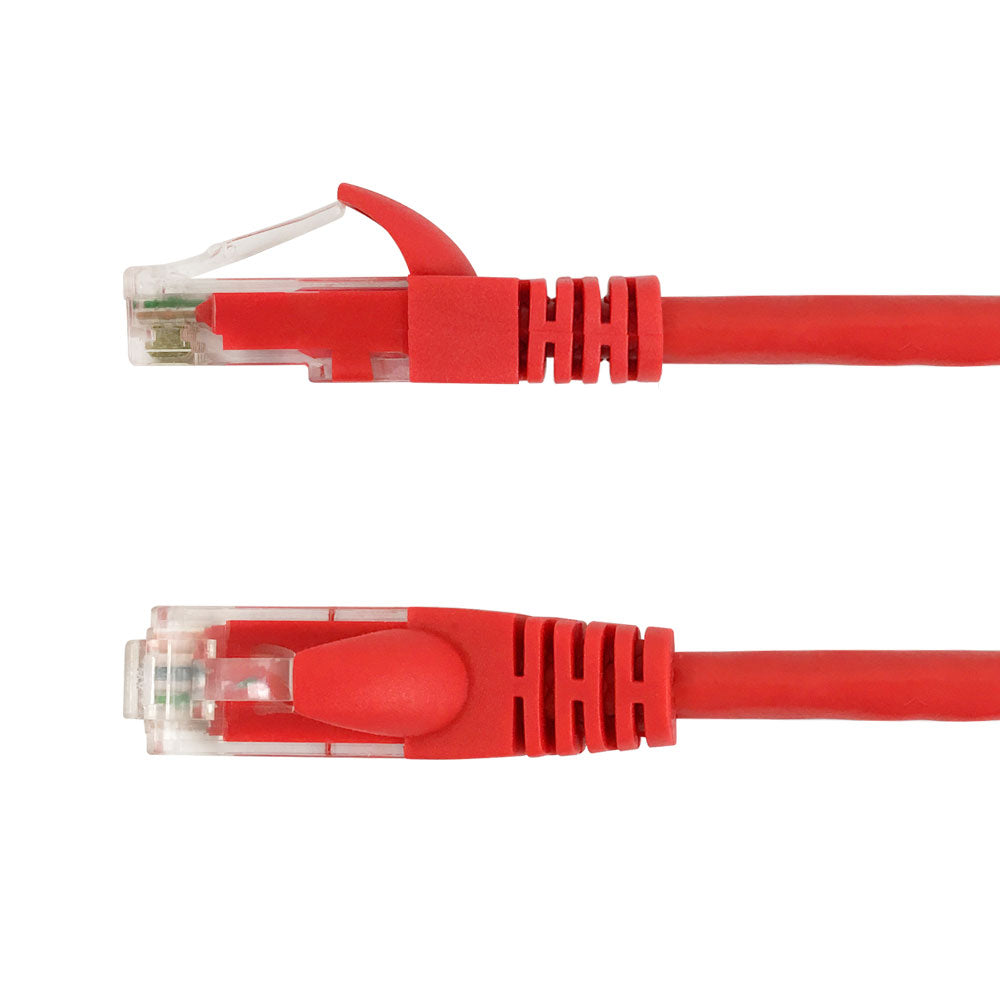

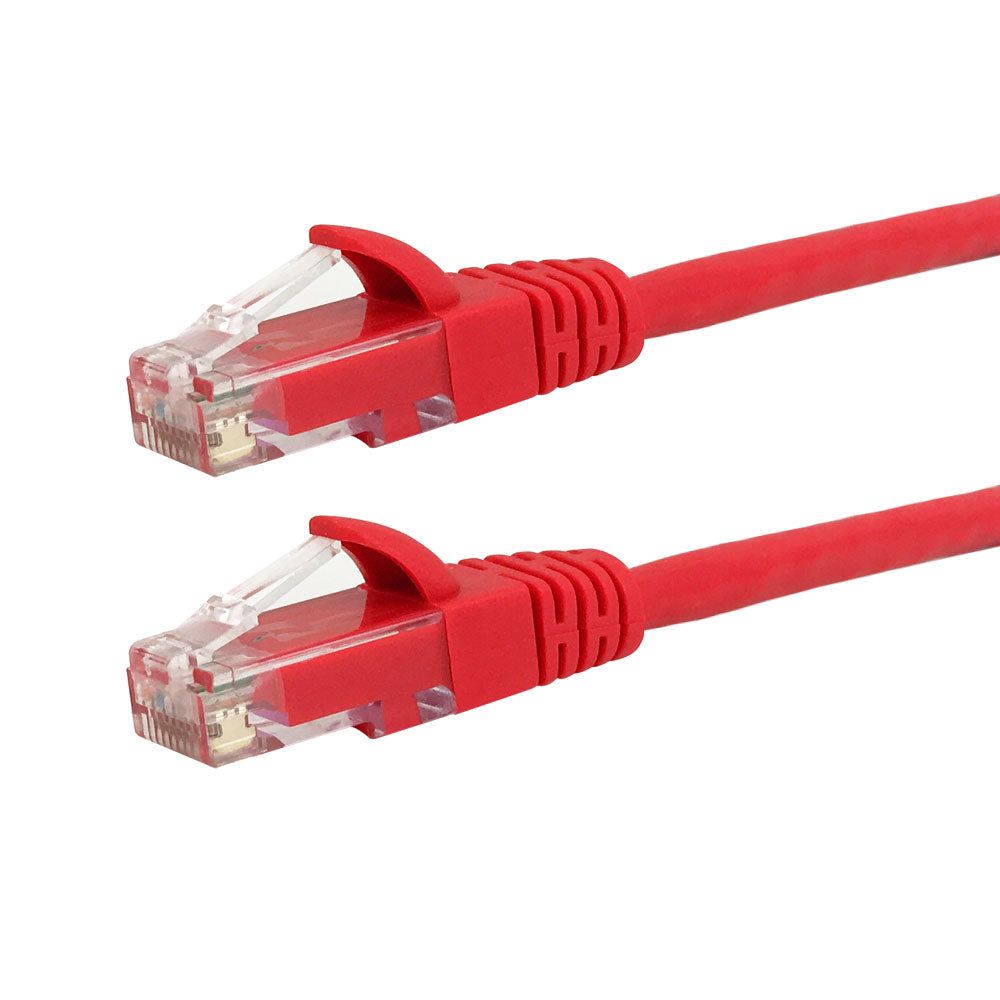

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6 patch cable certified. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6 patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10C to +75C |
| Jacket Type | PVC |
| Bend Radius | 24mm |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT6 Patch Cable Test | Yes |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us |
Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.8ft | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 10ft | 12ft | 14ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.21 lbs | 0.24 lbs | 0.26 lbs | 0.33 lbs | 0.38 lbs | 0.46 lbs | 0.50 lbs | 0.63 lbs | 0.77 lbs | 0.95 lbs | 1.10 lbs | 1.55 lbs | 2.26 lbs | 3.0 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT6-0.8RD | 8 inch | 0.05 lb |
| CAT6-01RD | 1ft | 0.07 lb |
| CAT6-02RD | 2ft | 0.1 lb |
| CAT6-03RD | 3ft | 0.15 lb |
| CAT6-04RD | 4ft | 0.17 lb |
| CAT6-05RD | 5ft | 0.2 lb |
| CAT6-06RD | 6ft | 0.21 lb |
| CAT6-07RD | 7ft | 0.24 lb |
| CAT6-08RD | 8ft | 0.26 lb |
| CAT6-10RD | 10ft | 0.33 lb |
| CAT6-12RD | 12ft | 0.38 lb |
| CAT6-14RD | 14ft | 0.46 lb |
| CAT6-15RD | 15ft | 0.5 lb |
| CAT6-20RD | 20ft | 0.63 lb |
| CAT6-25RD | 25ft | 0.77 lb |
| CAT6-30RD | 30ft | 0.95 lb |
| CAT6-35RD | 35ft | 1.1 lb |
| CAT6-50RD | 50ft | 1.55 lb |
| CAT6-75RD | 75ft | 2.26 lb |
| CAT6-100RD | 100ft | 3.0 lb |
