Overview

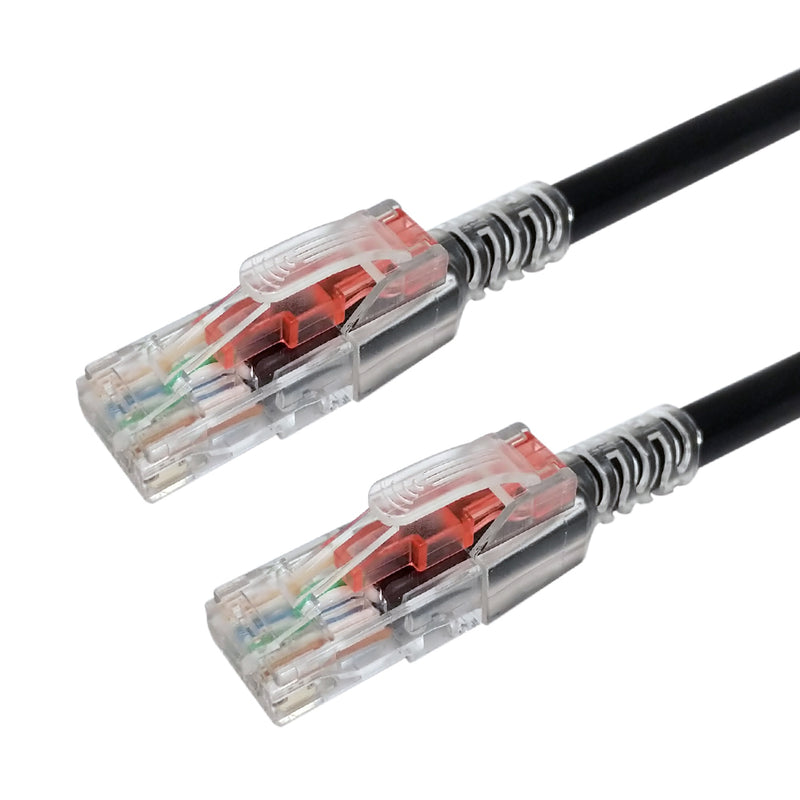

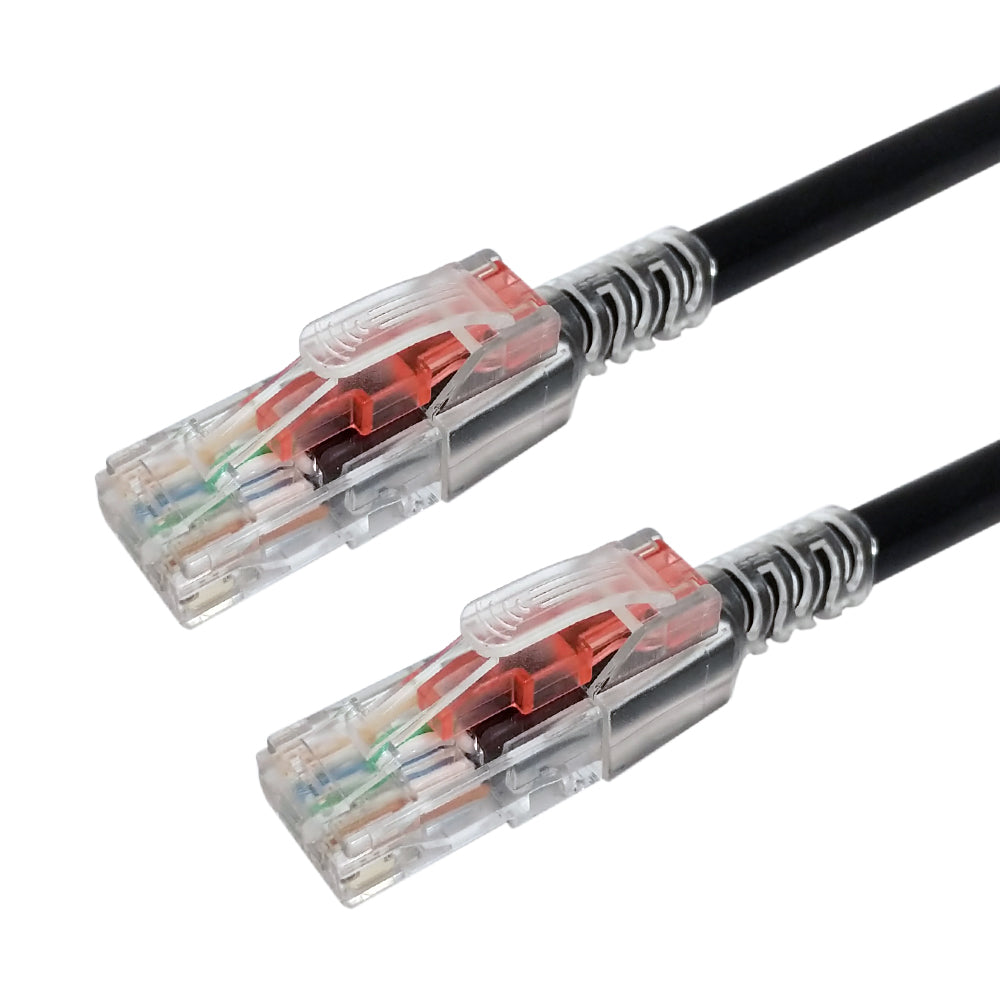

This custom Cat6a ethernet cable consists of a locking style RJ45 male on both ends. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The plug has a push-in locking tab which helps prevent accidental disconnects for critical networking applications. Each cable comes with a key which is required to easily unlock the connector.
TERMS: non-cancelable & non-returnable
Application
Specifications
| Physical Characteristics | |
|---|---|
| Connector A | RJ45 Long Body Male (Locking Style) |
| Connector B | RJ45 Long Body Male (Locking Style) |
| Performance | |
| Frequency | 550 MHz |
| Speed | 10Gb |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.8ft | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 40ft | 45ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 lbs | 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.13 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.24 lbs | 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.37 lbs | 0.40 lbs | 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 0.90 lbs | 1.00 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| CAT6ACL-0.8BK | 8 inch | 0.05 lb |
| CAT6ACL-01BK | 1ft | 0.07 lb |
| CAT6ACL-02BK | 2ft | 0.1 lb |
| CAT6ACL-03BK | 3ft | 0.15 lb |
| CAT6ACL-04BK | 4ft | 0.17 lb |
| CAT6ACL-05BK | 5ft | 0.2 lb |
| CAT6ACL-06BK | 6ft | 0.21 lb |
| CAT6ACL-07BK | 7ft | 0.24 lb |
| CAT6ACL-08BK | 8ft | 0.26 lb |
| CAT6ACL-09BK | 9ft | 0.24 lb |
| CAT6ACL-10BK | 10ft | 0.33 lb |
| CAT6ACL-11BK | 11ft | 0.32 lb |
| CAT6ACL-12BK | 12ft | 0.38 lb |
| CAT6ACL-13BK | 13ft | 0.44 lb |
| CAT6ACL-14BK | 14ft | 0.46 lb |
| CAT6ACL-15BK | 15ft | 0.5 lb |
| CAT6ACL-16BK | 16ft | 0.57 lb |
| CAT6ACL-17BK | 17ft | 0.64 lb |
| CAT6ACL-18BK | 18ft | 0.71 lb |
| CAT6ACL-19BK | 19ft | 0.78 lb |
| CAT6ACL-20BK | 20ft | 0.63 lb |
| CAT6ACL-21BK | 21ft | 0.7 lb |
| CAT6ACL-22BK | 22ft | 0.71 lb |
| CAT6ACL-23BK | 23ft | 0.72 lb |
| CAT6ACL-24BK | 24ft | 0.74 lb |
| CAT6ACL-25BK | 25ft | 0.77 lb |
| CAT6ACL-30BK | 30ft | 0.95 lb |
| CAT6ACL-35BK | 35ft | 1.1 lb |
| CAT6ACL-40BK | 40ft | 1.33 lb |
| CAT6ACL-45BK | 45ft | 1.4 lb |
| CAT6ACL-50BK | 50ft | 1.55 lb |
| CAT6ACL-75BK | 75ft | 2.26 lb |
| CAT6ACL-100BK | 100ft | 3.0 lb |
