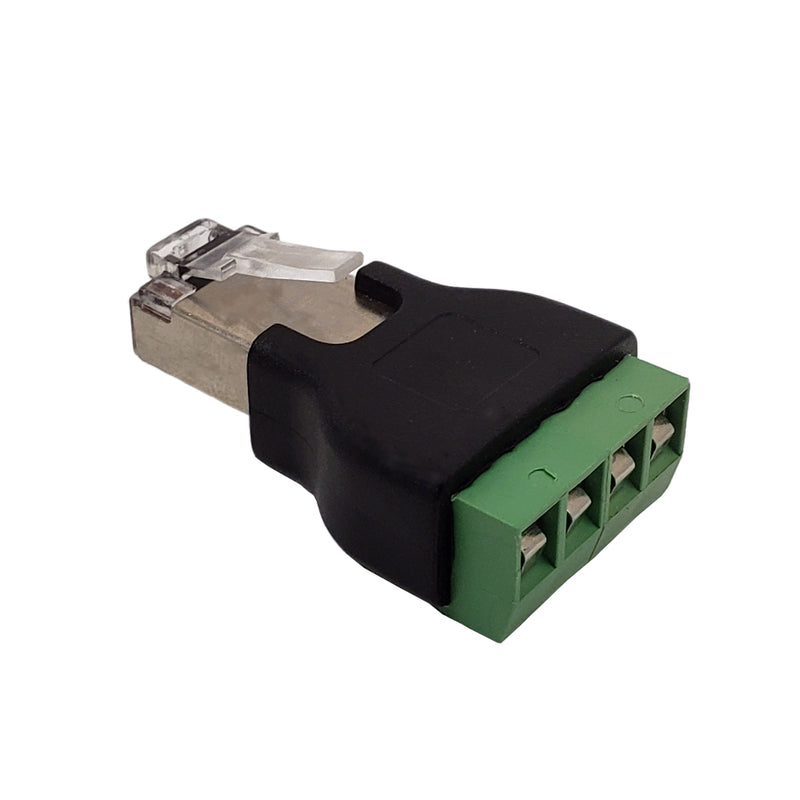

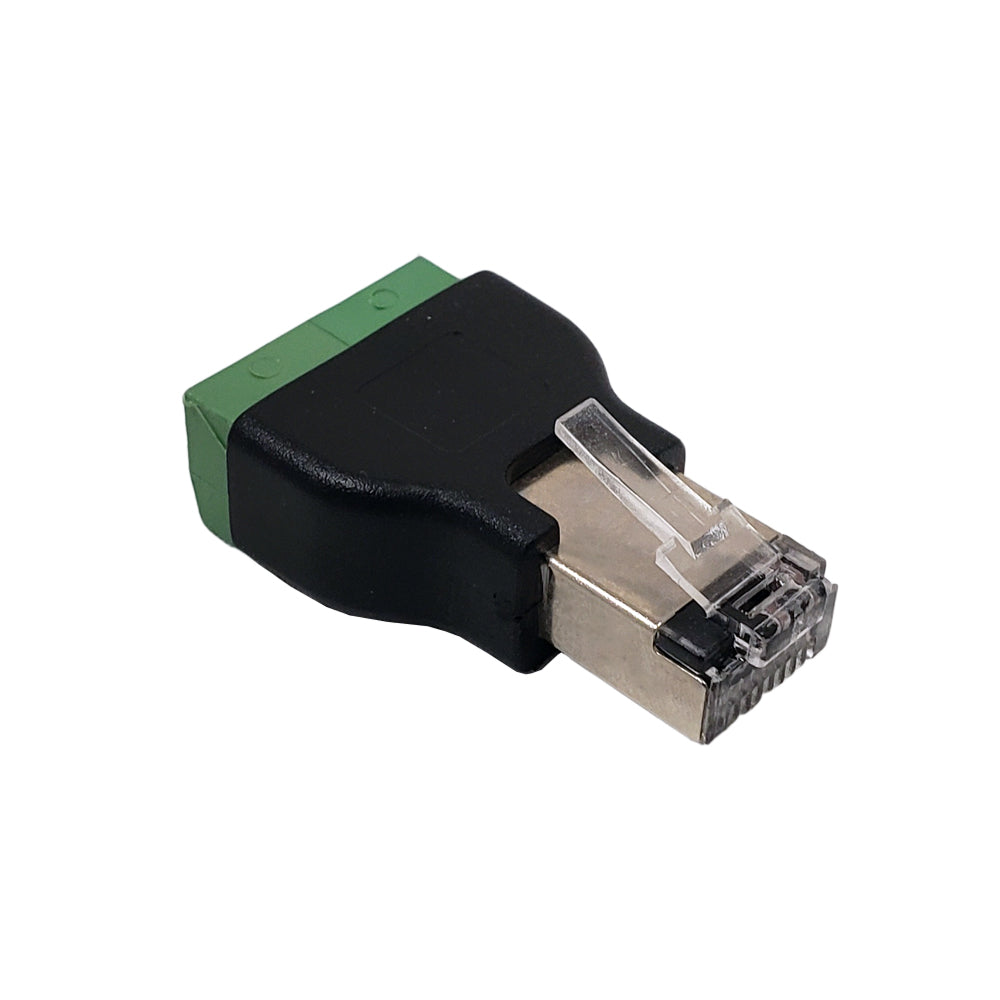

This connector consists of a RJ45 male on one end and four screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications.
|
Physical Characteristics
|
| Color |
Black |
| Contact Plating |
Gold |
| Attachment Method |
Screw Down |
| Wire Gauge |
28AWG to 16AWG |
| Pinout |
| RJ45 |
Terminal Block |
1
2
3
4
5
6
7
8
|
N/C
N/C
N/C
A
B
N/C
C
D
|
|
|
Connector(s)
|
| Connector A |
1 - RJ45 (8P8C) Male |
| Connector B |
4 - Screw Down Terminals |
|
Environmental
|
| RoHS |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.02 lbs [0.01 kg] |
