Description

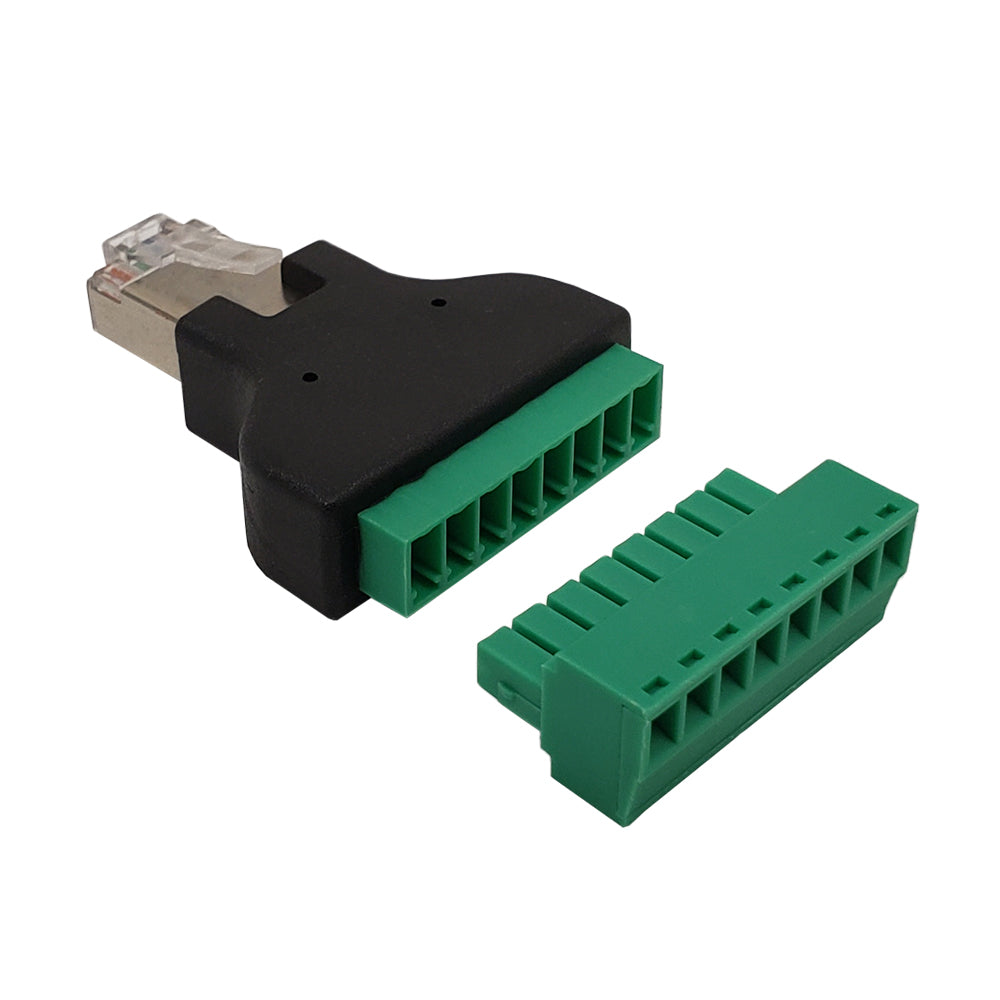

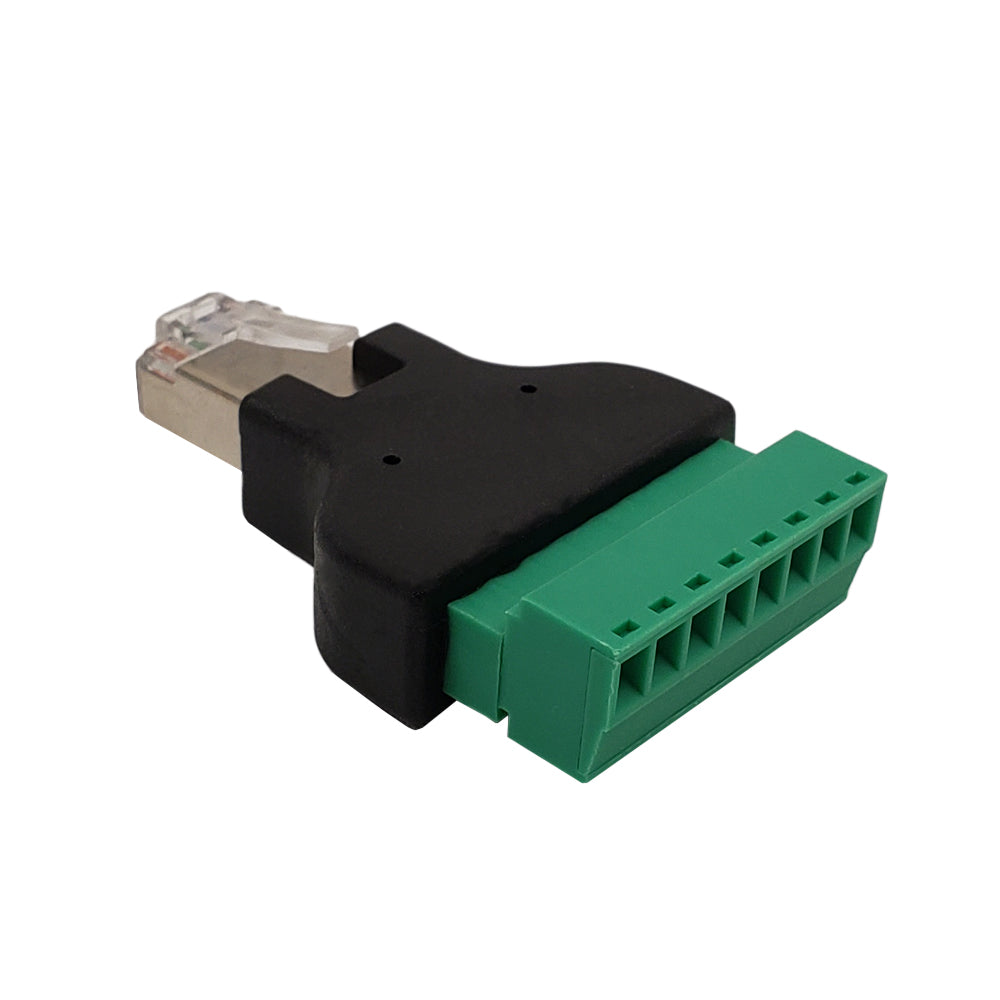

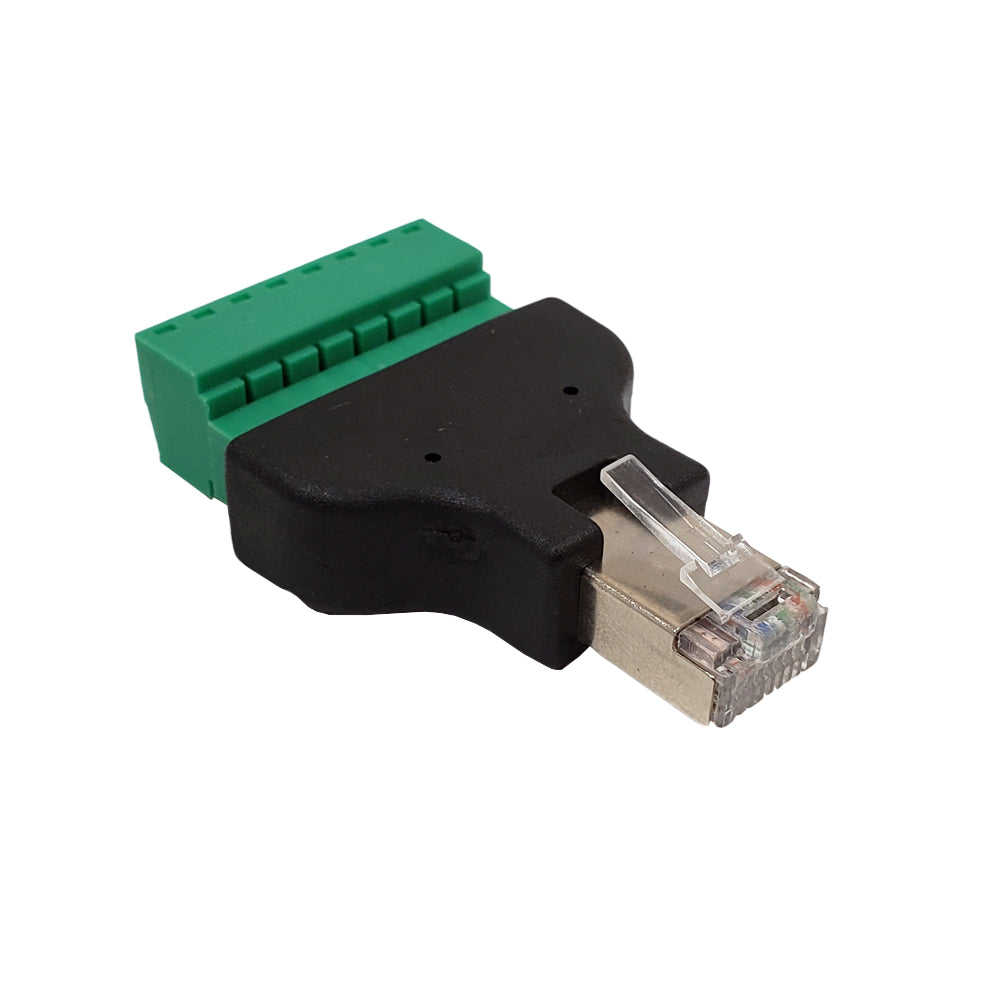

This connector consists of a RJ45 male on one end and eight screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications. The terminal block is removable for easier termination.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Contact Plating | Gold | ||||
| Attachment Method | Screw Down | ||||
| Wire Gauge | 28AWG to 16AWG | ||||
| Pinout |
|
||||
| Connector(s) | |||||
| Connector A | 1 - RJ45 (8P8C) Male | ||||
| Connector B | 8 - Screw Down Terminals | ||||
| Environmental | |||||
| RoHS | Yes | ||||
| Packaging Information | |||||
| Package Quantity | 1 | ||||
| Product Weight | 0.02 lbs [0.01 kg] | ||||
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-RJ45-SD8 | 0.1 lb |
