Description

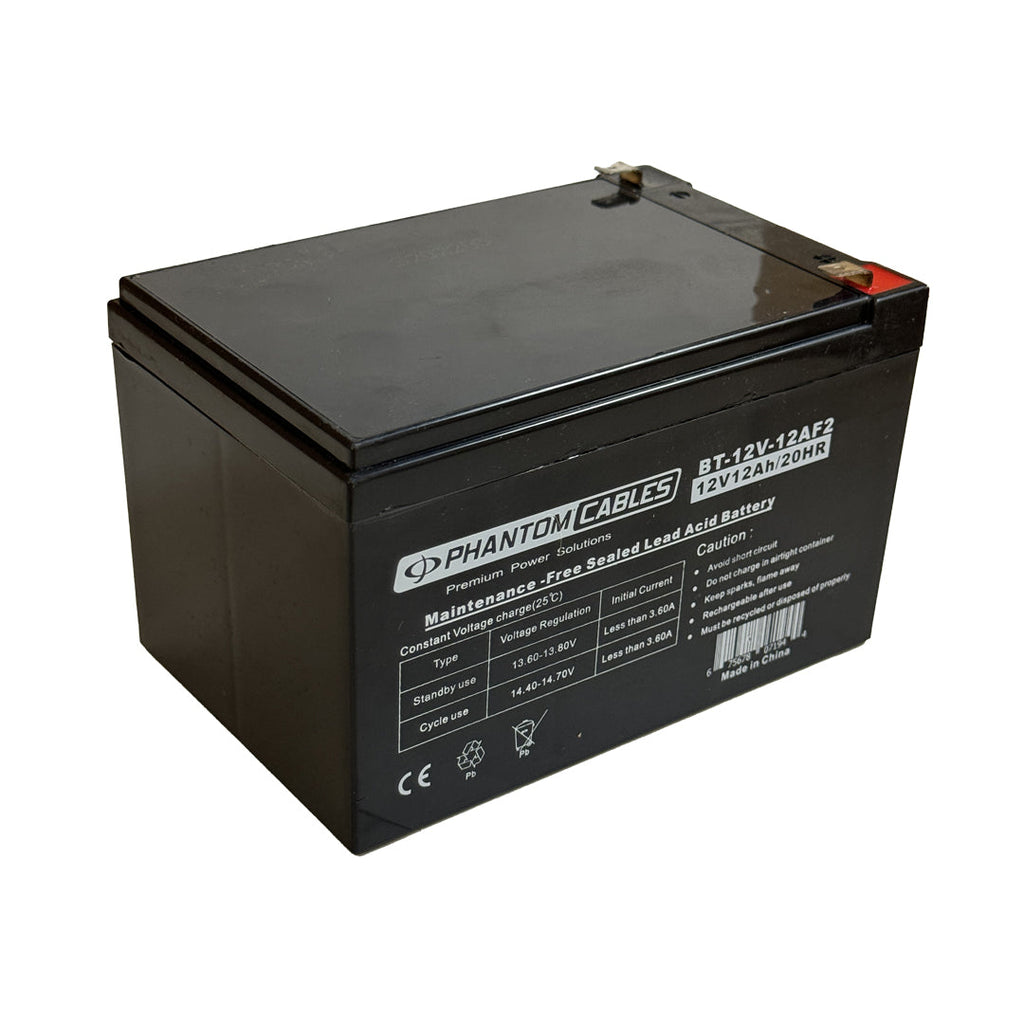

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Voltage | 12V |
| Amps | 12A |

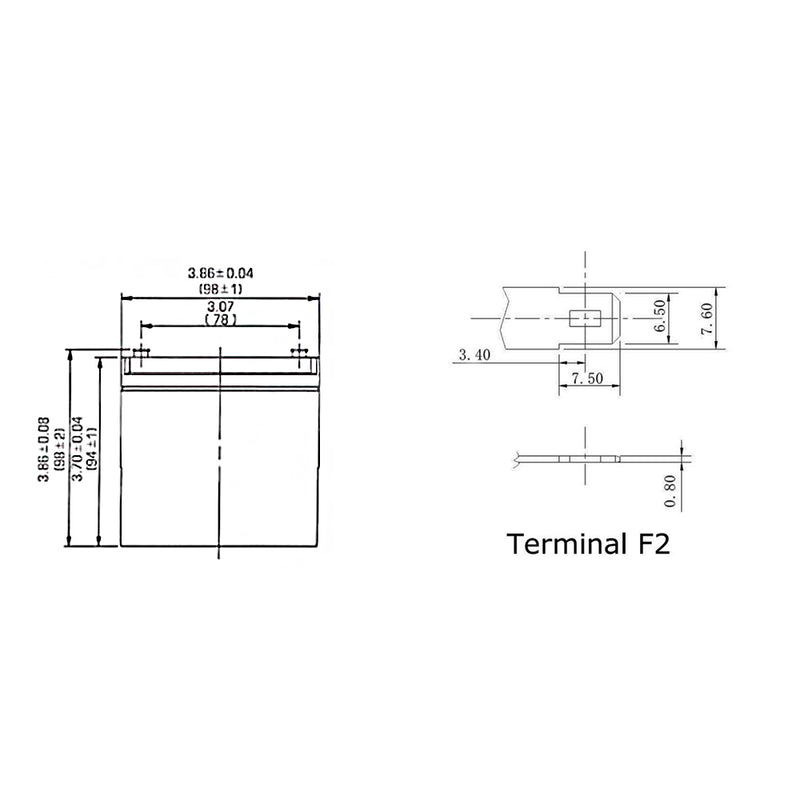

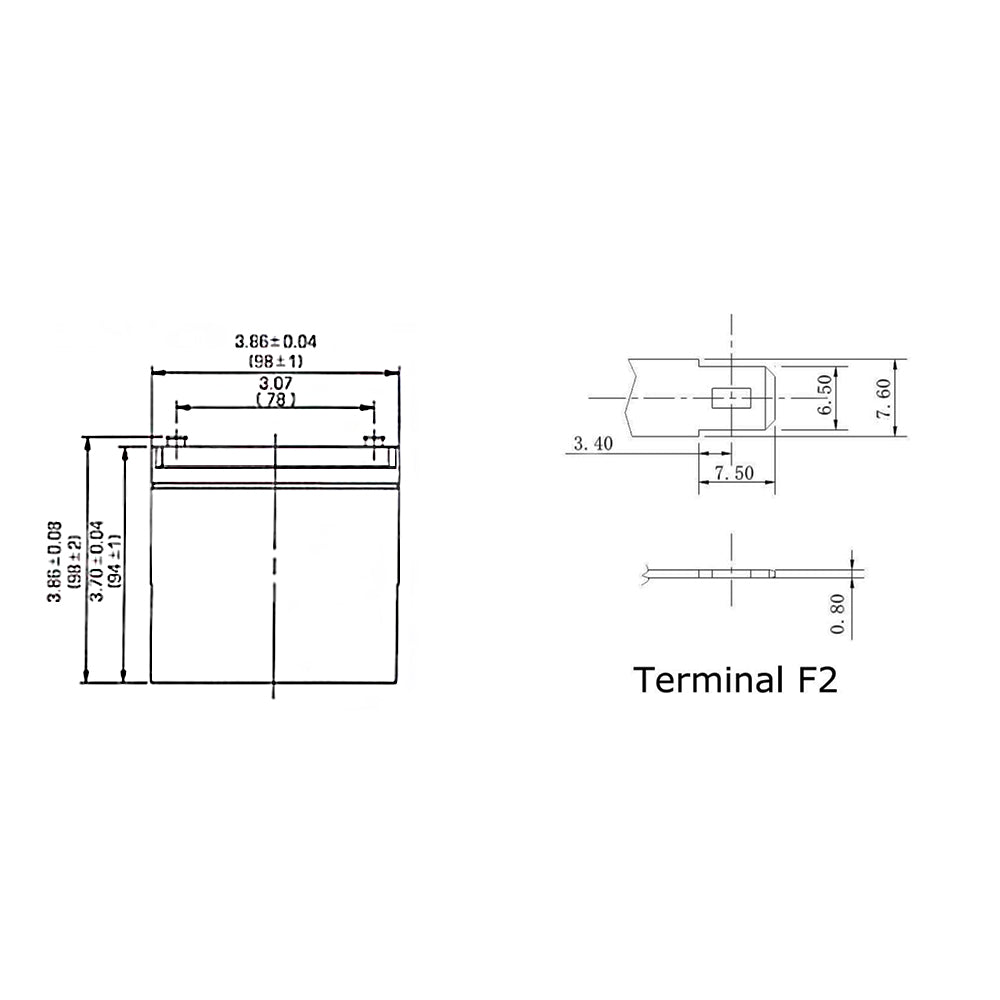

| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |
| Length | 3.9 inches [98mm] |
| Width | 6 inches [151mm] |
| Height | 3.7 inches [94mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.90m٦ |
| Max. Discharge Current | 117A(5S) |
| Rated Capacity | 12.0AH (20hr, 1.75V/cell,25℃/77℃F) 11.5AH (10hr, 1.75V/cell,25℃/77℃F) 11.0AH (5hr, 1.75V/cell,25℃/77℃F) 10.3AH (3hr, 1.75V/cell,25℃/77℃F) 7.75AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature |
40℃ 103% 25℃ 100% 0℃ 86% -15℃ 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 8.2 lbs [3.7kg] |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Back-UPS BK650 APC Back-UPS BK650MC APC Back-UPS BK650MUC APC Back-UPS BK650X06 APC Back-UPS BP650S APC Back-UPS BP650IPNP APC Back-UPS BP650PNP APC Back-UPS BP650S APC Back-UPS BP650SUS APC Smart-UPS SU620NET APC Smart-UPS SU650 APC Smart-UPS SUVS650 Belkin UPS S6C500-USB Exide NetUPS 700 Powerware UPS 5105-700 |
Spec Sheets
Product Weights
| SKU | Weight | |
| BT-12V-12AF2 | 8.2 lb |
