Description

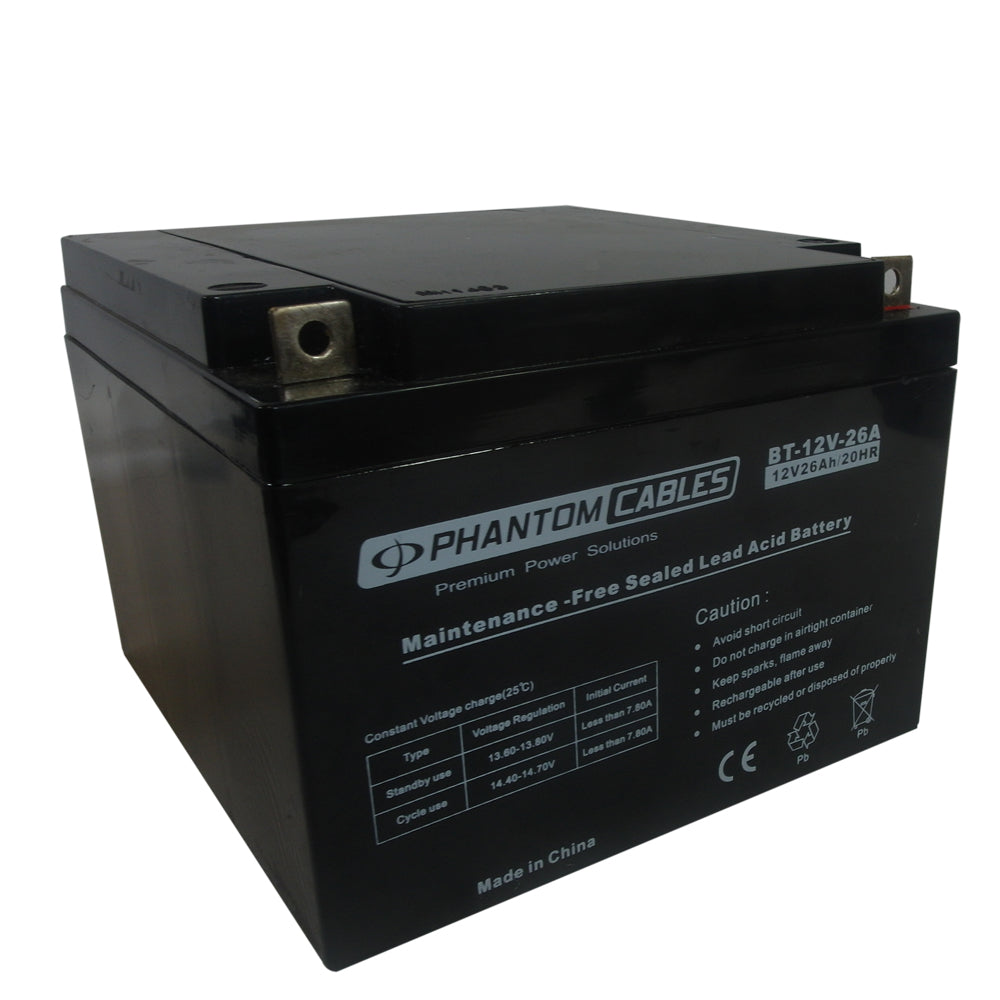

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 2 x UPS Replacement |
| Voltage | 12V |
| Amps | 26A |

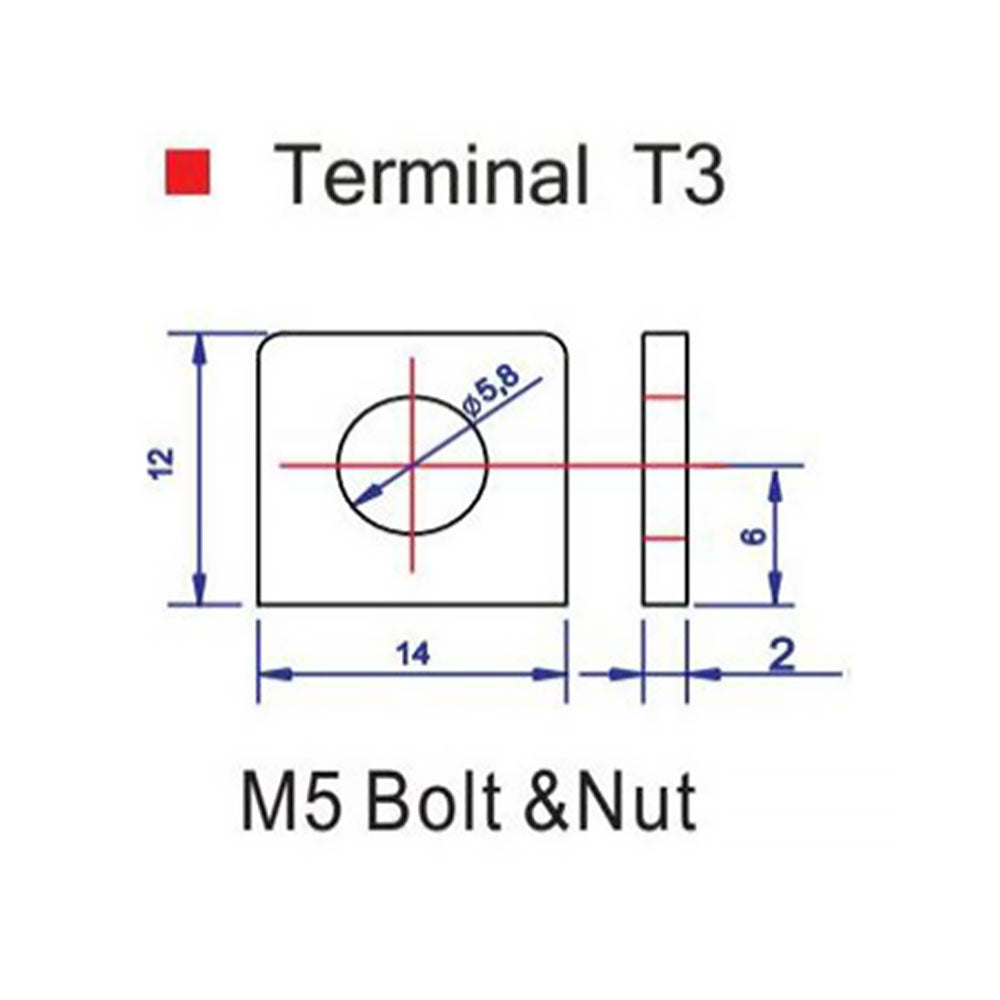

| Terminal Type | T3/B2 |
| Container Material | ABS(UL-94HB) |

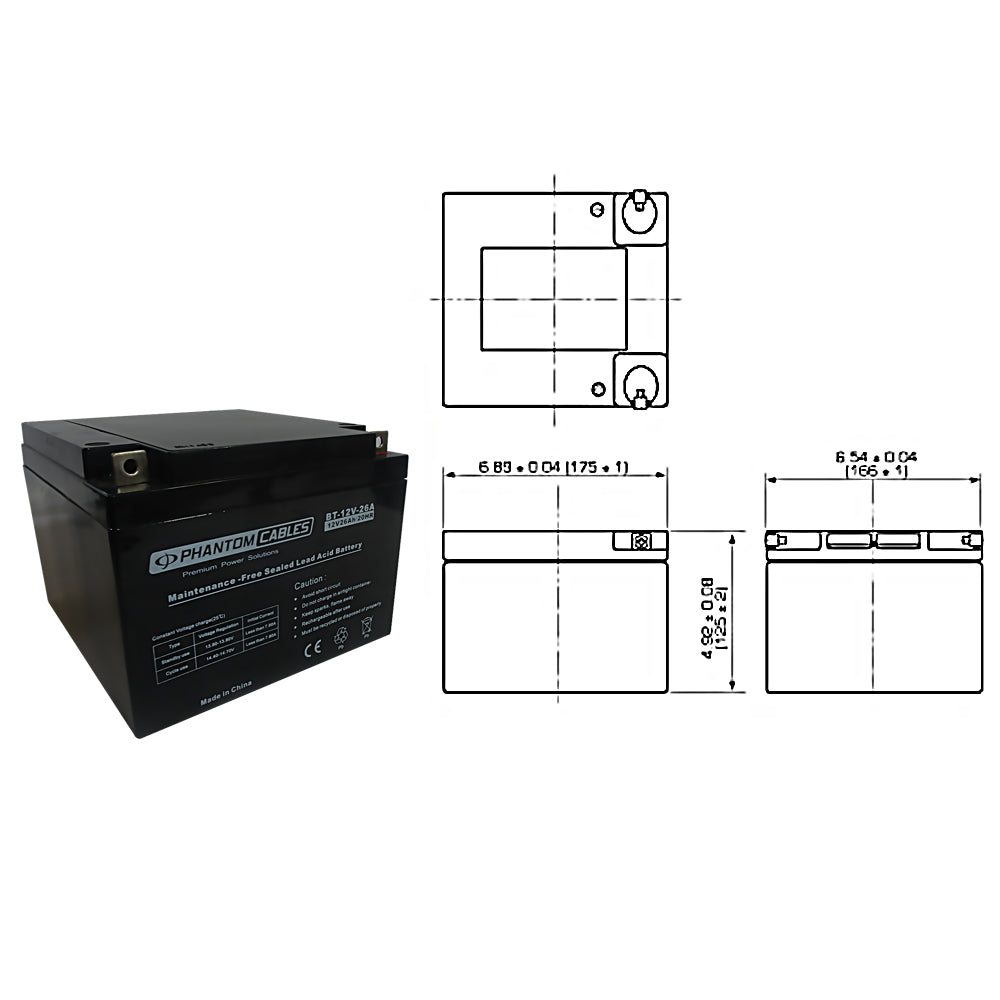

| Length | 6.9 inches [175mm] |
| Width | 6.5 inches [165mm] |
| Height | 4.9 inches [125mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Performance | |
| Internal Resistance | Approx.14m٦ |
| Max. Discharge Current | 390A(5S) |
| Rated Capacity | 26.00AH (20hr, 1.75V/cell,25℃/77℃F) 24.80AH (10hr, 1.75V/cell,25℃/77℃F) 21.35AH (5hr, 1.75V/cell,25℃/77℃F) 19.20AH (3hr, 1.75V/cell,25℃/77℃F) 13.19AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature | 40℃ 103% 25℃ 100% 0℃ 86% -15℃ 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 34.4 lbs [15.6kg] |
| Packaging Quantity | 2 UPS Battery 12V 26amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS AP1200 APC Smart-UPS AP1200VS APC Smart-UPS AP1200VX |
Product Weights
| SKU | Weight | |
| BT-12V-26A-2PCS | 34.4 lb |
