Description

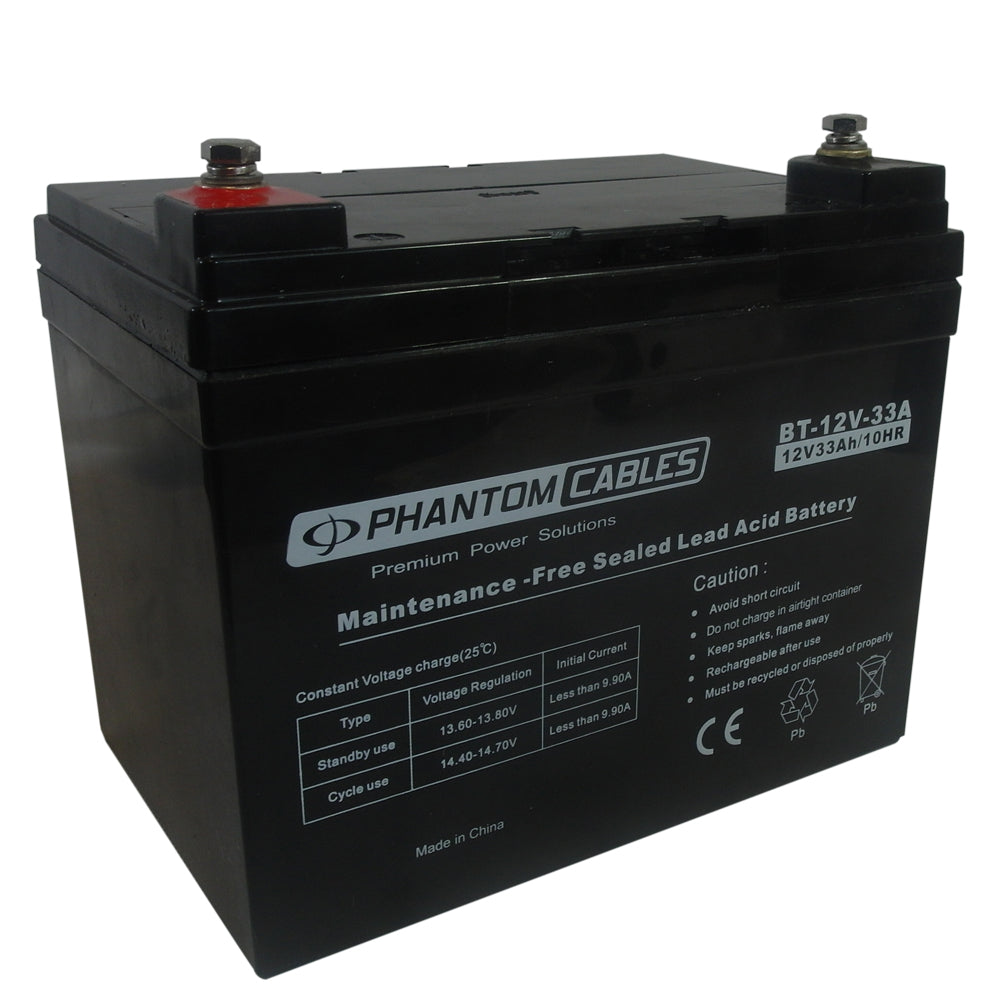

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Voltage | 12V |
| Amps | 33A |

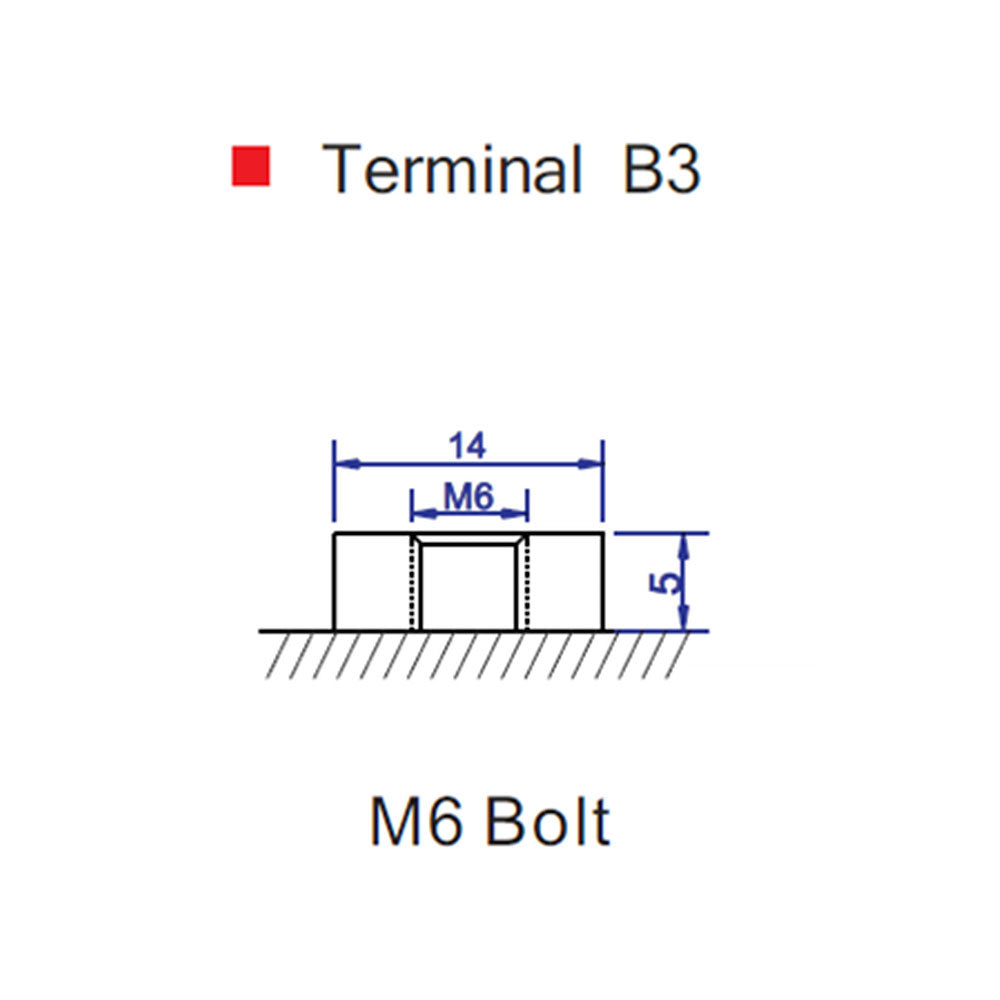

| Terminal Type | B3 |

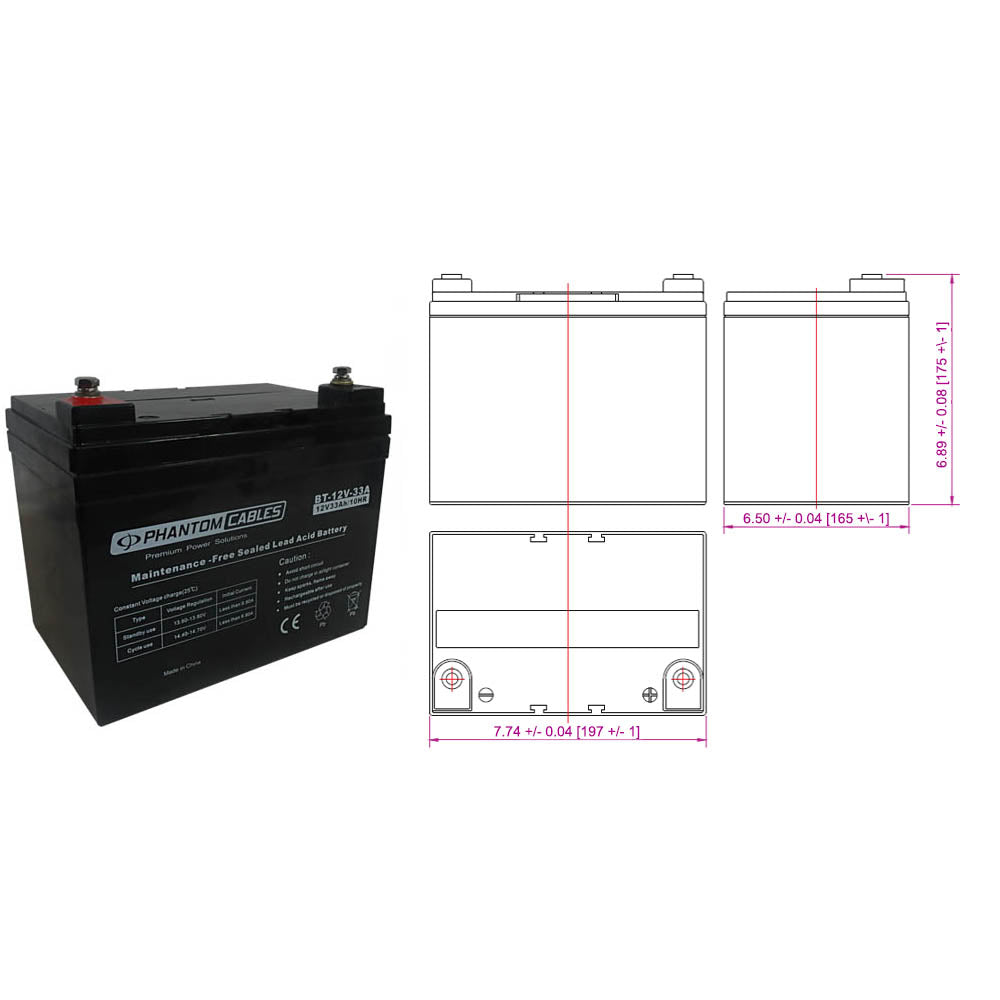

| Length | 7.8 inches [197mm] |
| Width | 6.5 inches [165mm] |
| Height | 6.9 inches [175mm] |
| Performance | |
| Internal Resistance | 12 mΩ |
| Capacity 25℃(77℉) | 20 hour rate(1.8A) - 36.0 AH 10 hour rate(3.3 A) - 33.0 AH 5 hour rate(5.30 A) - 26.5 AH 1 hour rate(19.8A) - 19.8 AH 1.5 hour discharge to 10.5V - 13.2AH |
| Capacity Affected by Temperature (10 hour rate) |
40℃(104℉) - 102% 25℃(77℉) - 100% 0℃(32℉) - 85% -15℃(5℉) - 65% |
| Self-Discharge 66A at 25℃(77℉) | Capacity after 3 month storage - 91% Capacity after 6 month storage - 82% Capacity after 12 month storage - 64% |
| Charge (Constant Voltage) | Cycle : Initial Charging Current less than 8.3 A Voltage 14.10-14.40V Float : Voltage 13.50-13.80V |
| Packaging Information | |
| Product Weight | 22.1 lbs [10kg] |
| Warranty Information | |
| Warranty | 6 Months |
Spec Sheets
Product Weights
| SKU | Weight | |
| BT-12V-33A | 22.1 lb |
