Description
- Description
- Product Weights
Description

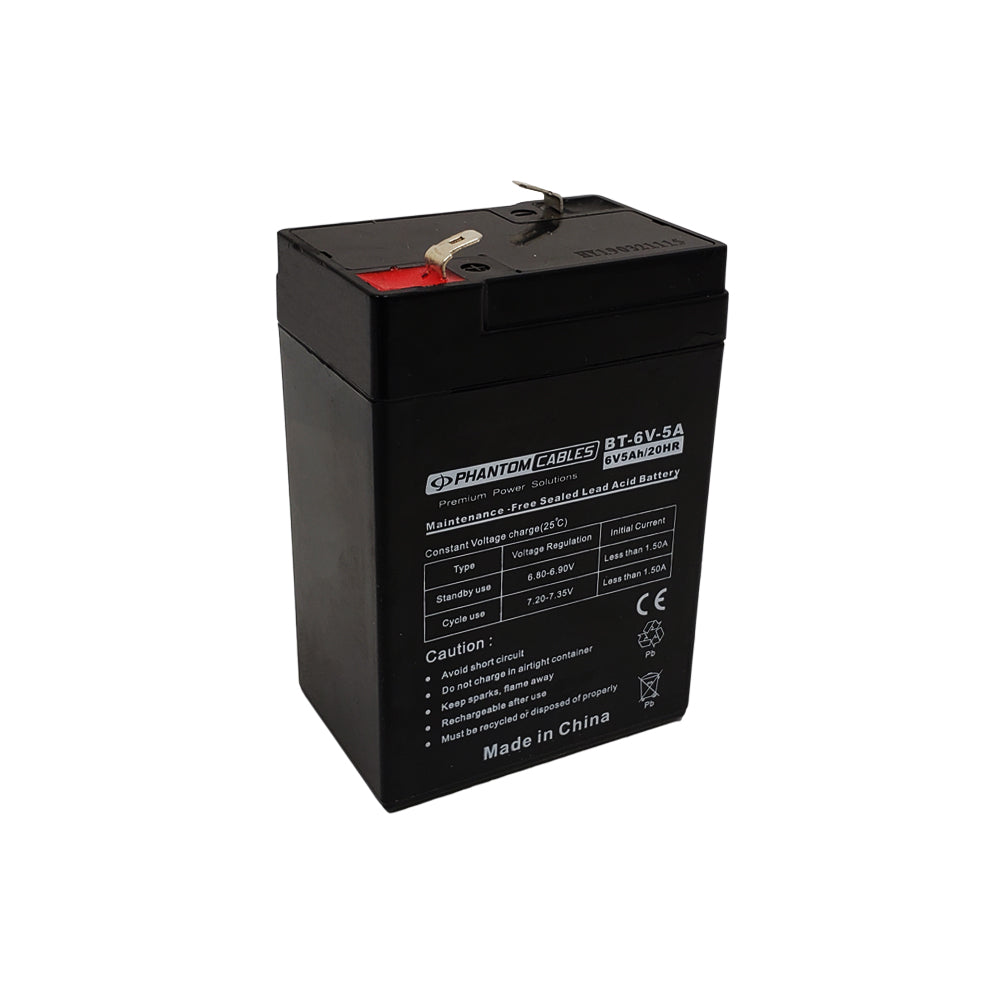

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 2x UPS Replacement |
| Voltage | 6V |
| Amps | 5A |
| Terminal Type | F1 |
| Tab Size | 0.1875 inch |
| Container Material | ABS(UL-94HB) |

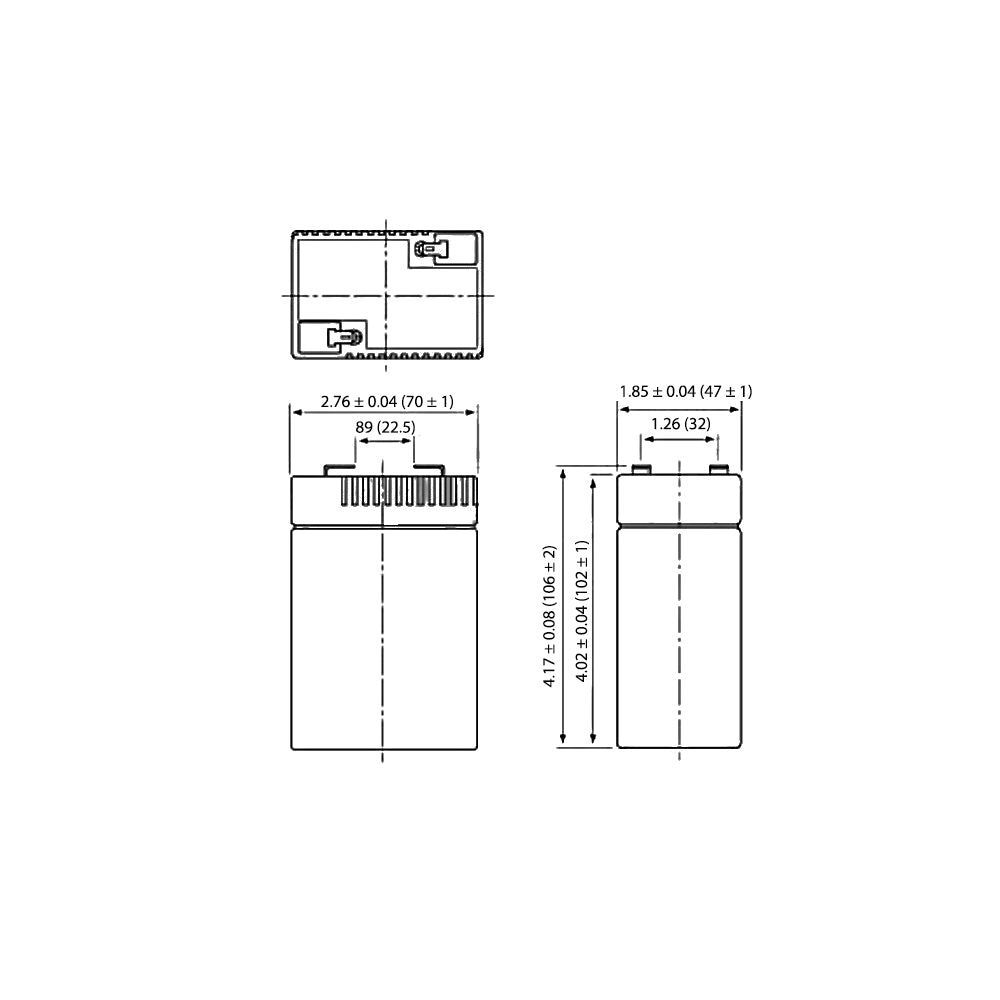

| Length | 1.85 inches [47mm] |
| Width | 2.8 inches [70mm] |
| Height | 4 inches [102mm] |
| Operating Temperature | 25±3°C (77±5°F ) |
| Performance | |
| Internal Resistance | Approx.15m„¦ |
| Max. Discharge Current | 105A(5S) |
| Rated Capacity | 5.00AH (20hr, 1.75V/cell,25°C/77°F) 4.72AH (10hr, 1.75V/cell,25°C/77°F) 4.23AH (5hr, 1.75V/cell,25°C/77°F) 3.85AH (3hr, 1.75V/cell,25°C/77°F) 2.89AH (1hr, 1.75V/cell,25°C/77°F) |
| Cycle Use | Charge Current Less Than 0.25CA 7.05V~7.35V@25°C(77°F)Temp. Coefficient -30mV/°C |
| Floating Use | No limit on Initial Charging Current Voltage 6.75V~6.9V@25°C(77°F)Temp. Coefficient -20mV/°C |
| Capacity affected by Temperature |
40°C 103% 25°C 100% 0°C 86% -15°C 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity: 82% 12 month Remaining capacity: 65% |
| Packaging Information | |
| Product Weight | 3.8 lbs [1.7kg] |
| Packaging Quantity | 2 UPS Battery 6V 5amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Back-UPS BK200 APC Back-UPS BK200B APC Back-UPS BK1250B APC Smart-UPS AP200 APC Smart-UPS AP2000 Powerware UPS 3110-300 |
Product Weights
| SKU | Weight | |
| BT-6V-5A-2PCS | 3.8 lb |
