Overview

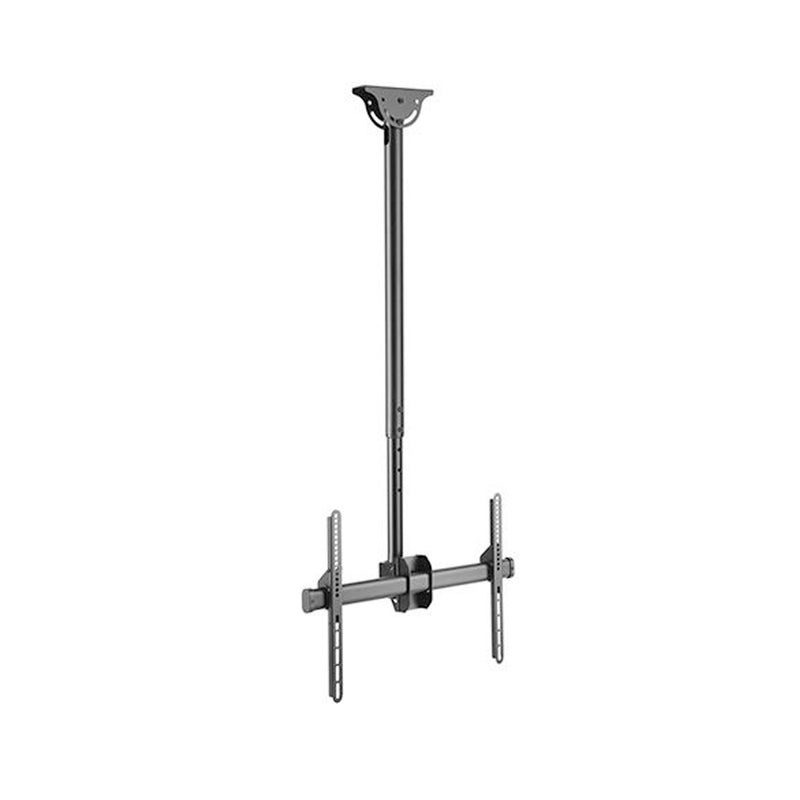

This ceiling mount bracket is designed to hold a 37 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It can be mounted on a flat or beveled ceiling. It offers a 25° downward tilt and a 180° swivel in either direction. It also has built in cable management. It is typically used in retail and commercial settings.
|
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 180° - and has a downward tilt of 25°. Level Adjustment is Easy on the EyesThe built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. It offers 3° clockwise and counter-clockwise turning to ensure a perfect level. Built-in Cable ManagementThis bracket comes with integrated cable management. This allows easy maintenance of cables and accessories.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Ceiling Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200x200, 400X200, 300X300, 400X400, 600x400 |
| Screen Size | 37 - 70 inches [94 - 178cm] |
| Weight Capacity | 110lbs [50kg] |
| Tilt | -25° ~ +0° |
| Swivel | -180° ~ +180° |
| Level Adjustment | -3° ~ +3° |
| Profile | 1060 - 1560mm |
| Cable Management | Yes |
| Compatibility | |
| Extension Bars |
MT-213-BK - TV Ceiling Mount Extension Pole - 23 inch Length - Black MT-214-BK - TV Ceiling Mount Extension Pole - 46 inch Length - Black |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 14.2lbs [6.4kg] |
| Warranty Information | |
| Warranty |
Limited Lifetime |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MT-218-BK | 15.2 lb |
