Description

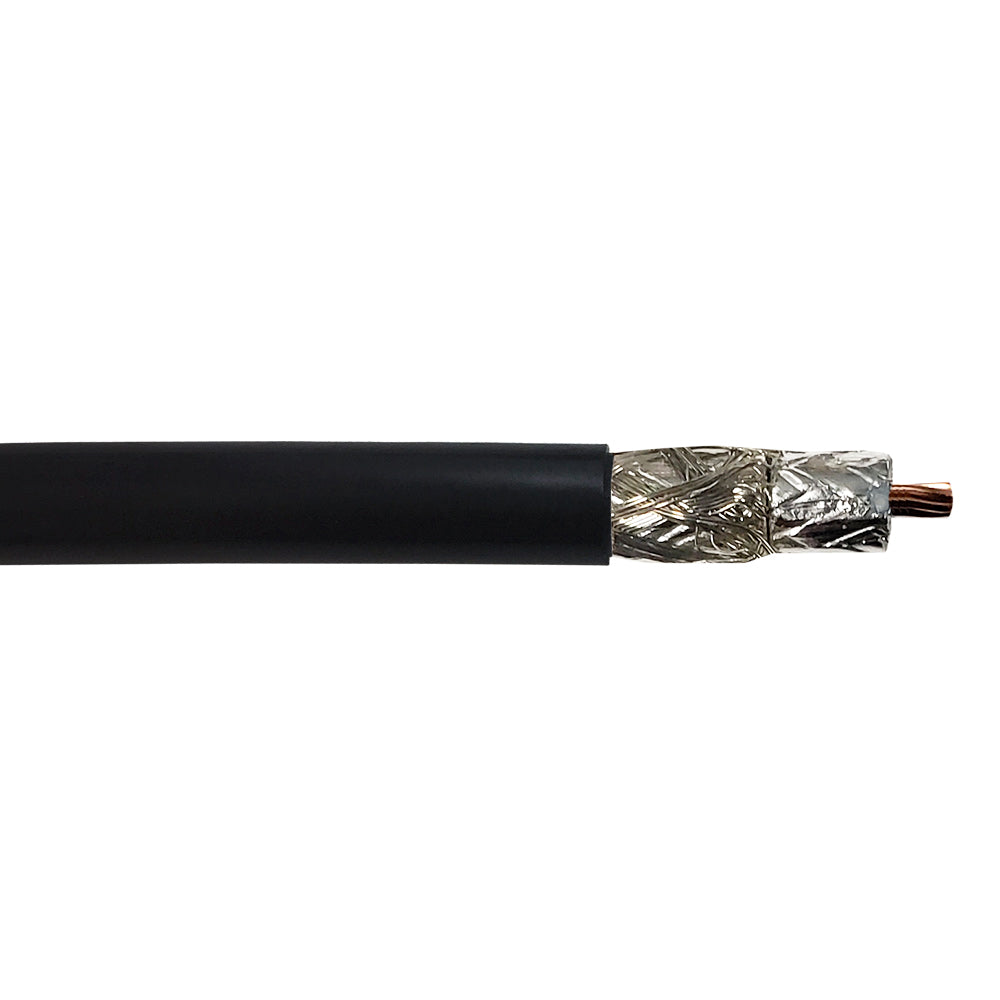

This bulk LMR-240 ultra flex cable consists of a 1.42mm (0.056 inch) stranded bare copper wire. It is ideal for jumper assemblies in wireless communication systems, short antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Cable Diameter | 4.95mm | ||||
| Stranding Count & Diameter | 1.12mm BC | ||||
| Jacket Material | PE - Polyethylene | ||||
| Jacket Rating | Outdoor with UV Resistance | ||||
| Cable Shielding | Overall Braid, Tinned Copper | ||||
| Temperature Rating | -40 ~ +85℃ | ||||
| Environmental | |||||
| RoHS | Yes | ||||
| UV Resistance | Yes | ||||
| Packaging Information | |||||
| Package Quantity | 1 | ||||
|
Cable Length Product Weight |
1000ft [305m] 41.30 lbs [18.73 kg] |
500ft [152.4m] 20.65 lbs [9.36 kg] |
250ft [76.2m] 8.36 lbs [3.79kg] |
100ft [30.4m] 4.18 lbs [1.9kg] |
50ft [15.2m] 2.09 lbs [0.95kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| LMR-240UF-050 | 50ft | 1.91 lb |
| LMR-240UF-100 | 100ft | 3.82 lb |
| LMR-240UF-250 | 250ft | 9.55 lb |
| LMR-240UF-500 | 500ft | 19.13 lb |
| LMR-240UF-1000 | 1000ft | 38.25 lb |
