Overview
This Ultra High-Speed HDMI® cable is certified under the Ultra High Speed HDMI Certification Program and consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source and display which supports 4K and 8K video, HDR, VRR, eARC, and all other HDMI 2.1b features. The cable is backwards compatible with HDMI 2.0 and lower and works with splitters, switches and other video sharing devices.
|
8K UHD Resolution
This cable supports maximum video resolutions up to a breath-taking 8K@60Hz UHD.

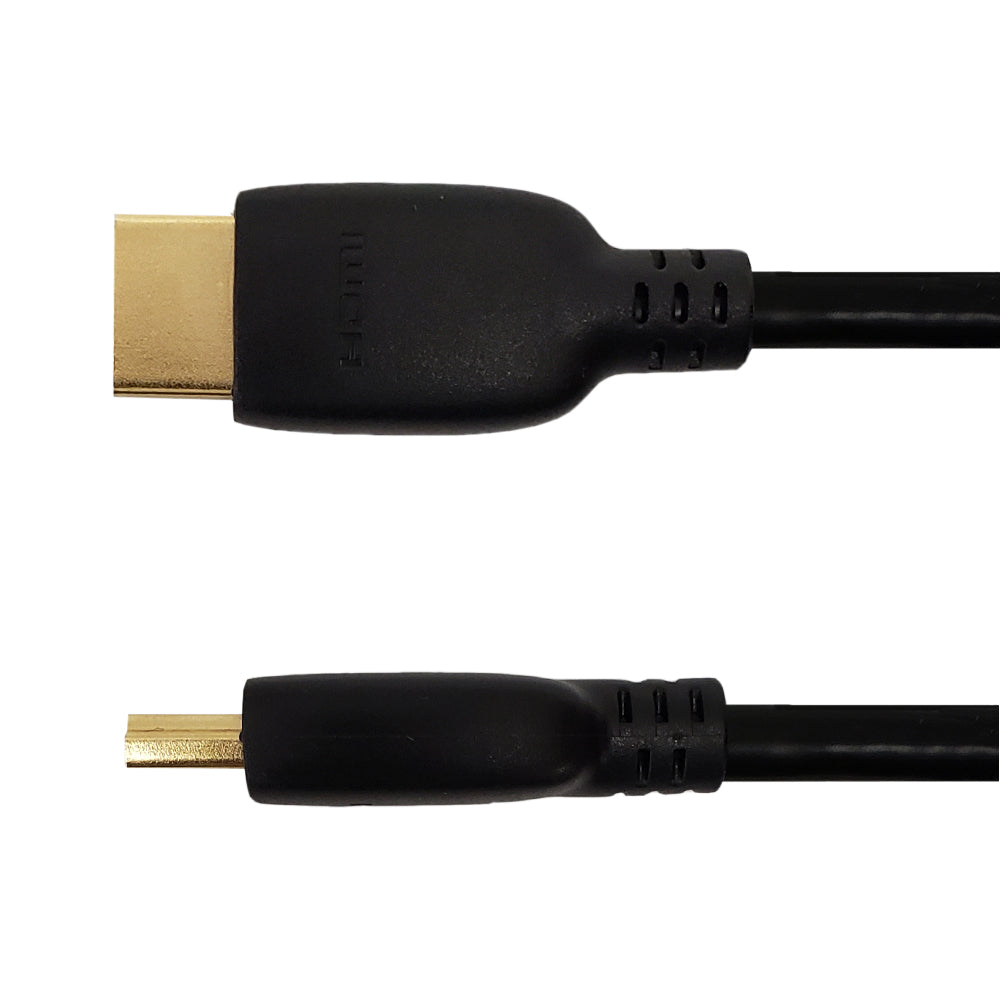

Gold Plated Connectors
The gold plated connectors deliver optimum conductivity and maintains a stable signal connection over time.
Certified Ultra High-Speed
These Ultra High-Speed cables are certified under the Ultra High Speed HDMI Certification Program and ensures quality Ultra High Speed HDMI Cables reach the market and support 4K and 8K video, HDR, VRR, eARC and all other HDMI 2.1b features.
|
Applications
Specifications
Part Number |
Outer Diameter |
HDMI-150C-03
|
6.0mm |
HDMI-150C-06
|
6.0mm |
HDMI-150C-10
|
6.8mm |
HDMI-150C-15 |
8.0mm |
Physical Characteristics |
Color
|
Black |
Connector Plating |
Gold |
Wire Gauge |
30AWG |
Jacket Fire Rating |
CL3/FT4 |
Temperature Rating |
80 deg C |
Connectors
|
Connector A |
HDMI A (19 pin) Male |
Connector B |
HDMI A (19 pin) Male |
Performance
|
Resolution |
Supports 8K@60Hz/4K@120Hz/1080p/1080i/720p |
Bandwidth |
48Gbps |
HDMI Version |
HDMI 2.1b, Backward Compatible with HDMI 2.0/1.4 |
Voltage |
30V |
Contact Resistance |
4 ohm max |
Insulation Resistance |
10M Ohm(min)DC 300V. |
Packaging Information
|
Package Quantity |
1 |
Warranty Information
|
Warranty |
Limited Lifetime |
3ft |
6ft |
10ft |
15ft |
0.13 lbs |
0.23 lbs |
0.44 lbs |
0.84 lbs |
