Description
- Description
- Spec Sheets
- Product Weights
Description

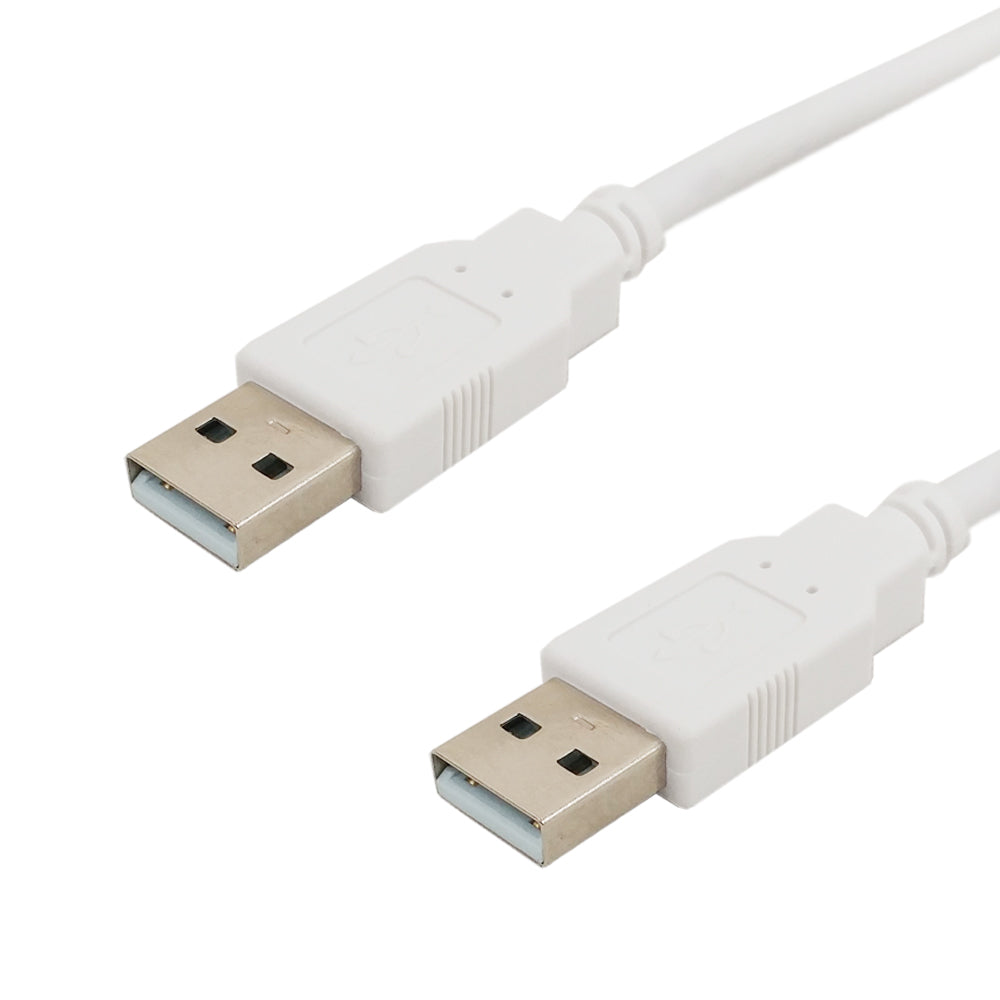

This USB 2.0 cable consists of a USB A male on both ends. It is typically used to connect a USB peripheral to your computer such as a USB hub to a PC.
| Physical Characteristics | |
|---|---|
| Color | Black/White |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 65% ALMG |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type A Hi-Speed Male |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Approvals | |
| UL | Yes - Cable |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.20 lbs | 0.30 lbs | 0.40 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-AA1-01BK | 1ft / Black | 0.07 lb |
| USB-AA1-02BK | 2ft / Black | 0.1 lb |
| USB-AA1-03 | 3ft / White | 0.15 lb |
| USB-AA1-03BK | 3ft / Black | 0.15 lb |
| USB-AA1-06 | 6ft / White | 0.21 lb |
| USB-AA1-06BK | 6ft / Black | 0.21 lb |
| USB-AA1-10 | 10ft / White | 0.33 lb |
| USB-AA1-10BK | 10ft / Black | 0.33 lb |
| USB-AA1-15 | 15ft / White | 0.5 lb |
| USB-AA1-15BK | 15ft / Black | 0.5 lb |
