Description

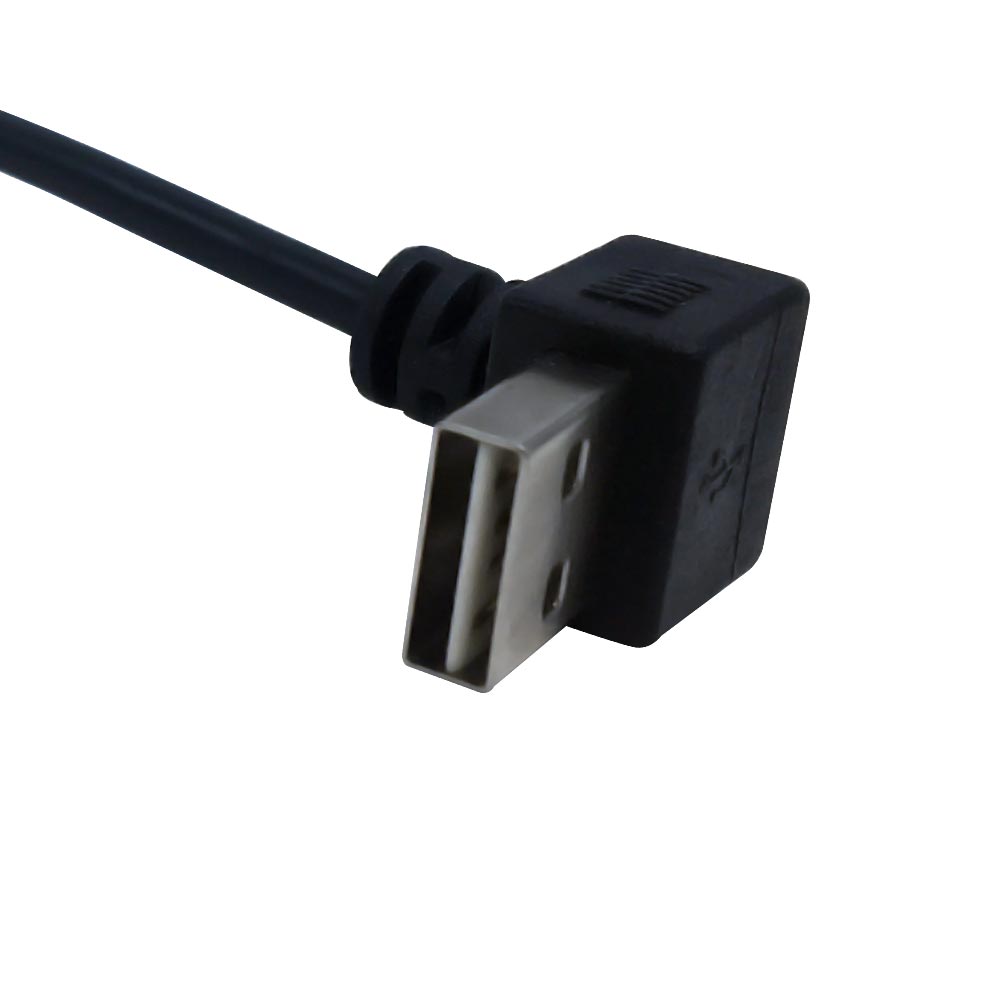

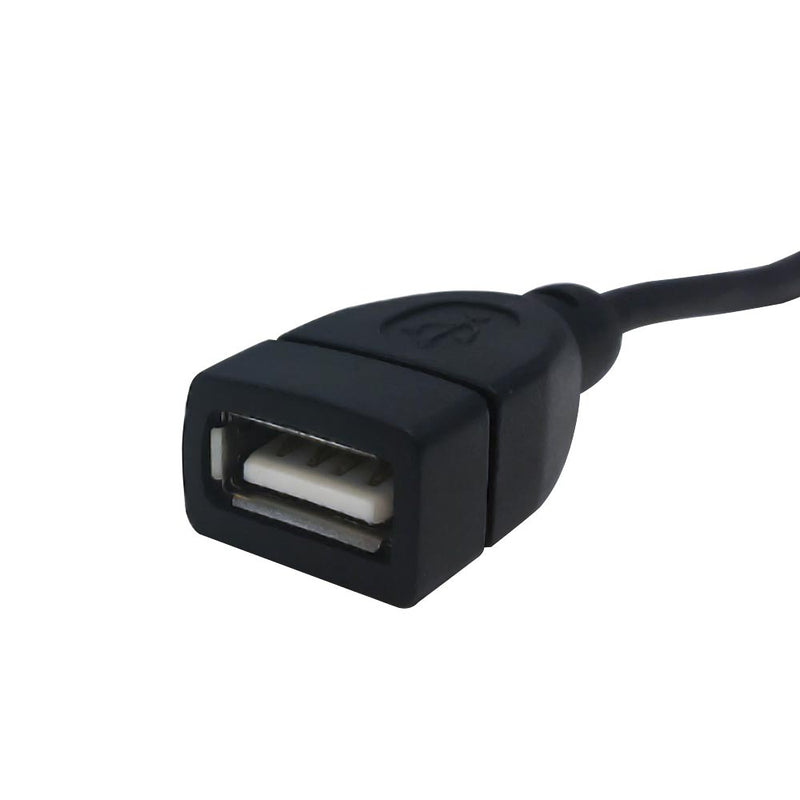

This USB 2.0 cable consists of a USB A up angle or down angle male on one end and a USB A straight female on the other end. The angled end uses a reversible USB A male connector which allows it to be inserted in either a right angle or left angle exit. It is typically used to extend a USB A cable.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 3.5 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 100% Foil |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | USB 2.0 Type A Up/Down Male |
| Connector B | USB 2.0 Type A Straight Female |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Approvals | |
| UL | Yes - Cable |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.05 lbs | 0.15 lbs | 0.30 lbs | 0.50 lbs | 0.75 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-232-01 | 1ft | 0.07 lb |
| USB-232-03 | 3ft | 0.15 lb |
| USB-232-06 | 6ft | 0.21 lb |
| USB-232-10 | 10ft | 0.33 lb |
| USB-232-15 | 15ft | 0.5 lb |
