Description

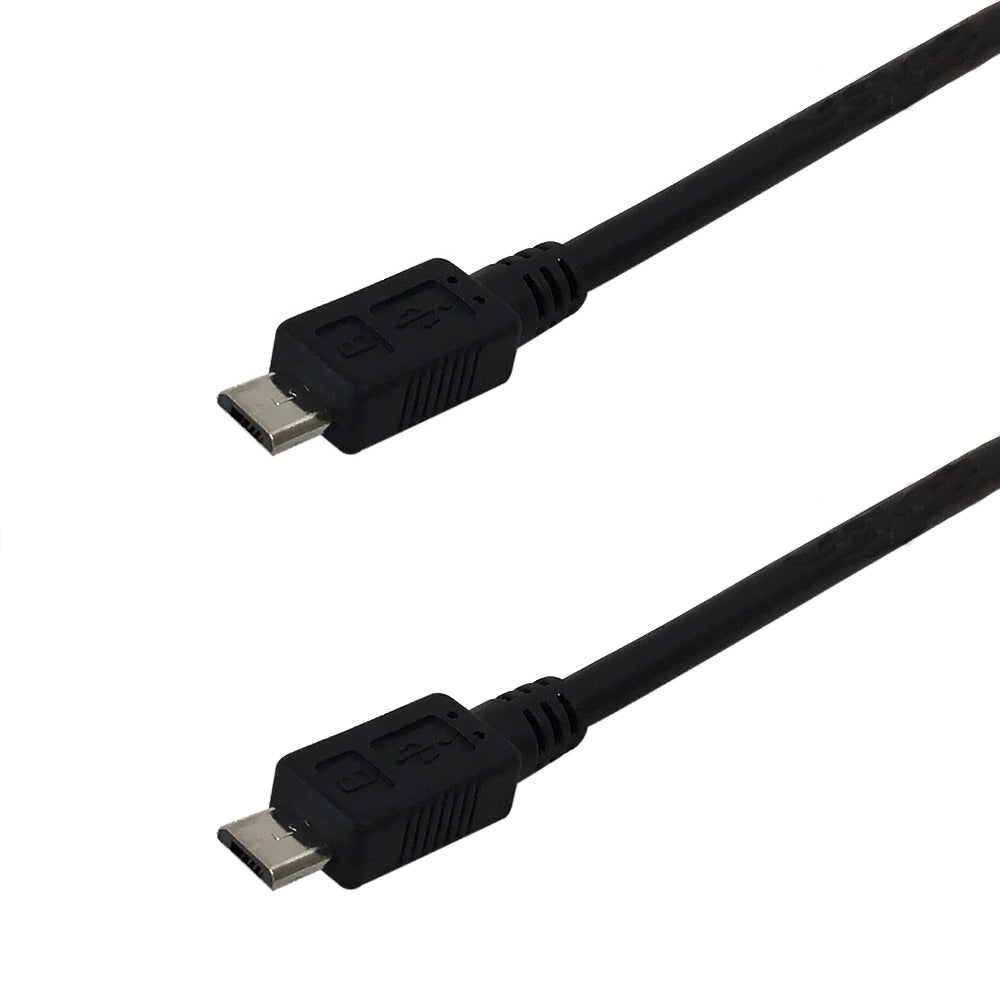

This USB 2.0 cable consists of a USB Micro B male on one end and a USB Micro B male on the other end. It is typically used to connect Micro B USB devices which require all 5 pins.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Pinout | Fully Pinned (5 wires), Straight Through |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 65% ALMG |
| Strain Relief | Molded PVC |
| Temperature Rating | 80℃ |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | USB 2.0 Micro-B Male |
| Connector B | USB 2.0 Micro-B Male |
| Performance | |
| Rating | USB 2.0 Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Approvals | |
| UL | Yes - Cable |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft |
|---|---|---|
| 0.05 lbs | 0.10 lbs | 0.15 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-BMBM-01.5 | 1.5ft | 0.07 lb |
| USB-BMBM-03 | 3ft | 0.15 lb |
| USB-BMBM-06 | 6ft | 0.21 lb |
