Overview

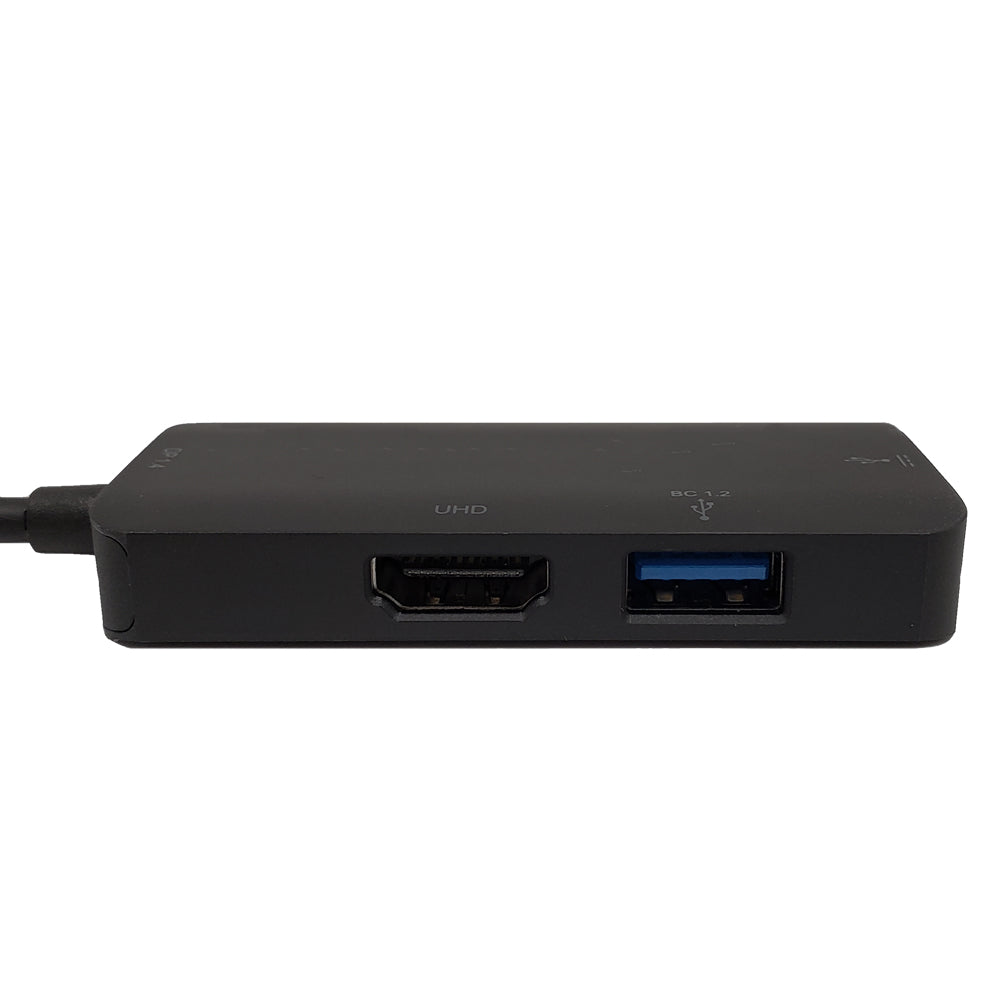

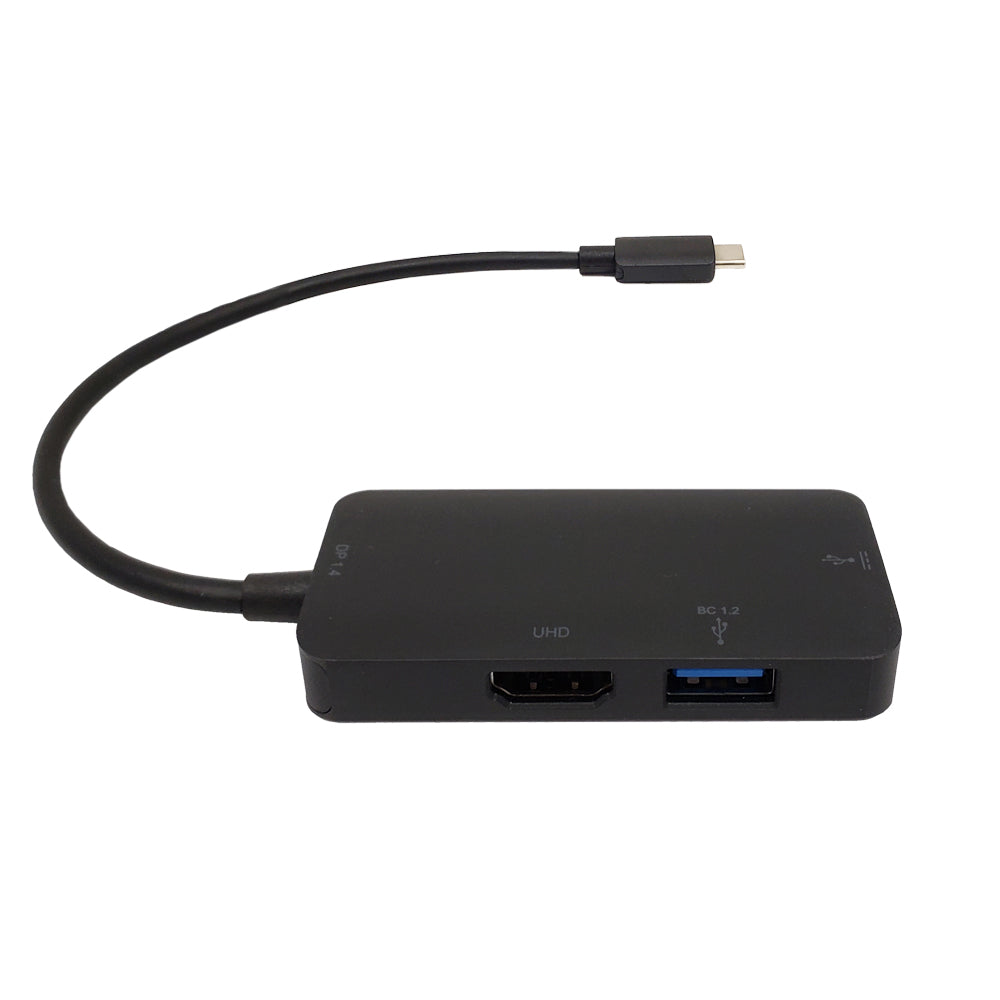

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female and a USB 3.0 A female port on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device.
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4K@60Hz. When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4K@30Hz due to bandwidth limitation.
|
|
Expand your Type-C Devices ConnectivityThis 3x1 USB Type-C docking station has an HDMI port for connecting external displays, a USB 3.0 A Super Speed port and a USB Type-C port with Power Delivery charging. High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution. Fast Data TransferThe Super Speed USB 3.0 Port supports faster data transfer up to 5Gbps. DisplayPort Alt ModeThis adapter works on all Type-C hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| USB 3.1 Type-C Female | |
| USB 3.0 A Female | |
| Performance | |
| USB Type-C Port | Supports data transmission (Max 5Gbps), Max 7.5W(5V/1.5A) Downstream charging, share max 7.5W downstream charging with USB-A port Supports Power Delivery charging 100W (20V/5A) Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging the PD adapter in and out 7.5W dedicated to adapter, the remaining 92.5W power will be passed to charge for the host |
| HDMI Resolution | Supports 4Kx2K@60Hz, 4:4:4, 8bit with 18Gbps bandwidth Supports 6/8/10/12 bit color depth output Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Supports HDCP 2.2/1.4 Supports HDR |
| USB Type A Port | Supports BC 1.2 with max 7.5W (5V/1.5A) downstream charging Max 5Gbps bandwidth |
| Supports | DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), Downward compatible with DP1.2 Alt mode |
| Compatibility | Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0 |
| System Requirements | |
| Windows Compliant | Yes |
| Mac Compliant | Yes |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.19kg] |
| SKU | Weight | |
| AD-UC-001 | 0.44 lb |
