Description
Overview

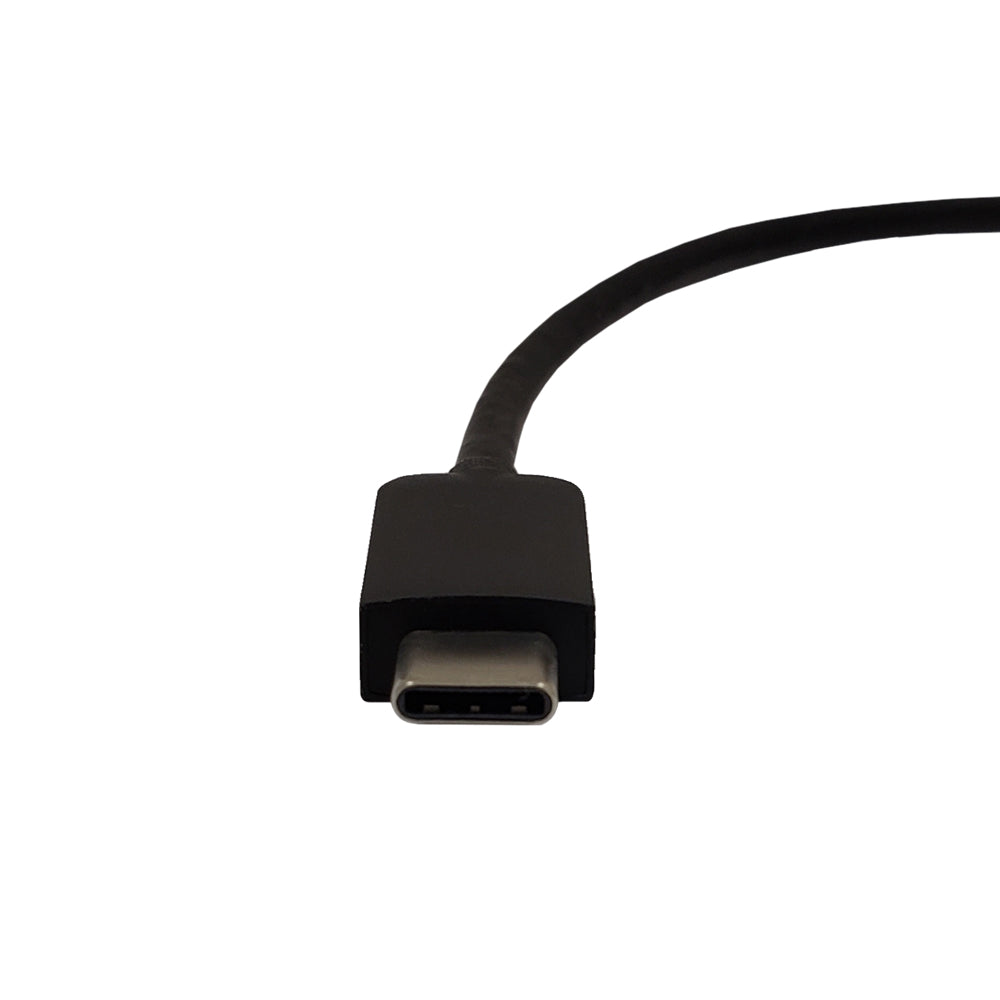

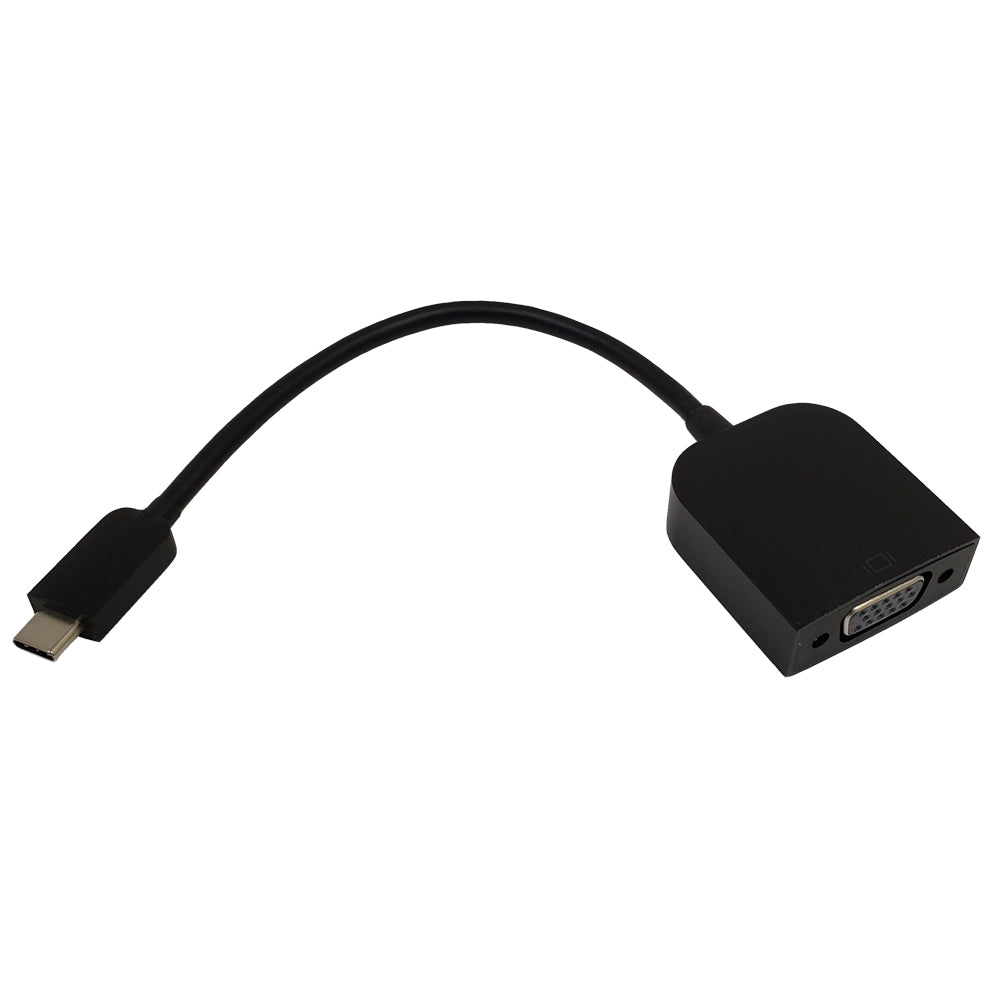

The USB Type-C to VGA adapter consists of a USB 3.1 Type-C male on one end and a VGA female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides high throughput using the USB 3.1 bus and supports high definition monitors. The adapter can either extend or mirror your source.
|
|
High Performance and Quality Video OutputThe VGA output provides a simple Plug & Play connection to displays with a 1920x1200@60Hz resolution. Multiple ApplicationsDepending on your preference, this adapter can extend your monitor as well as mirror your monitor.
|
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | VGA Female |
| Performance | |
| Resolution | Up to 1920x1200@60Hz |
| Power Source | USB Bus Power (No External Power Supply) |
| Compatibility | Compliant with USB 3.1 |
| Backward Compatible with USB3.0 and 2.0 | |
| System Requirements | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| AD-UC-VG02 | 0.06 lb |
