Description

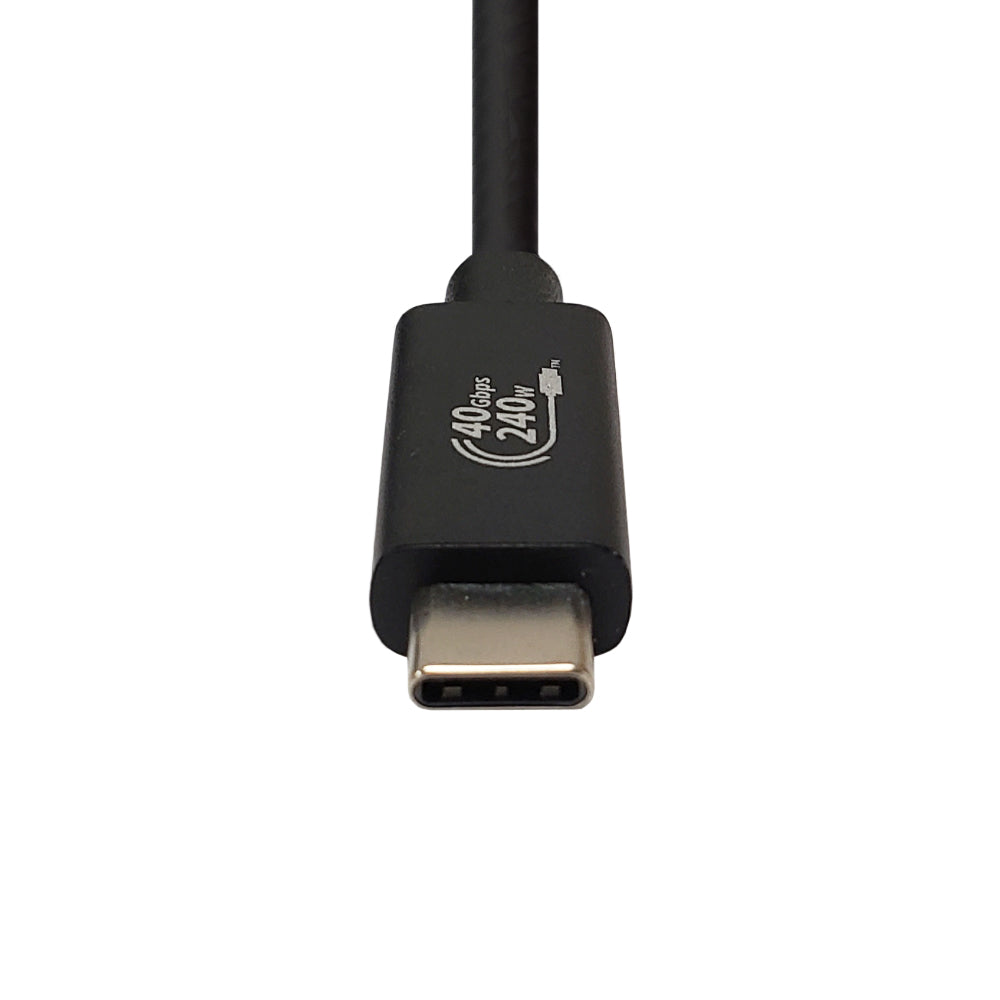

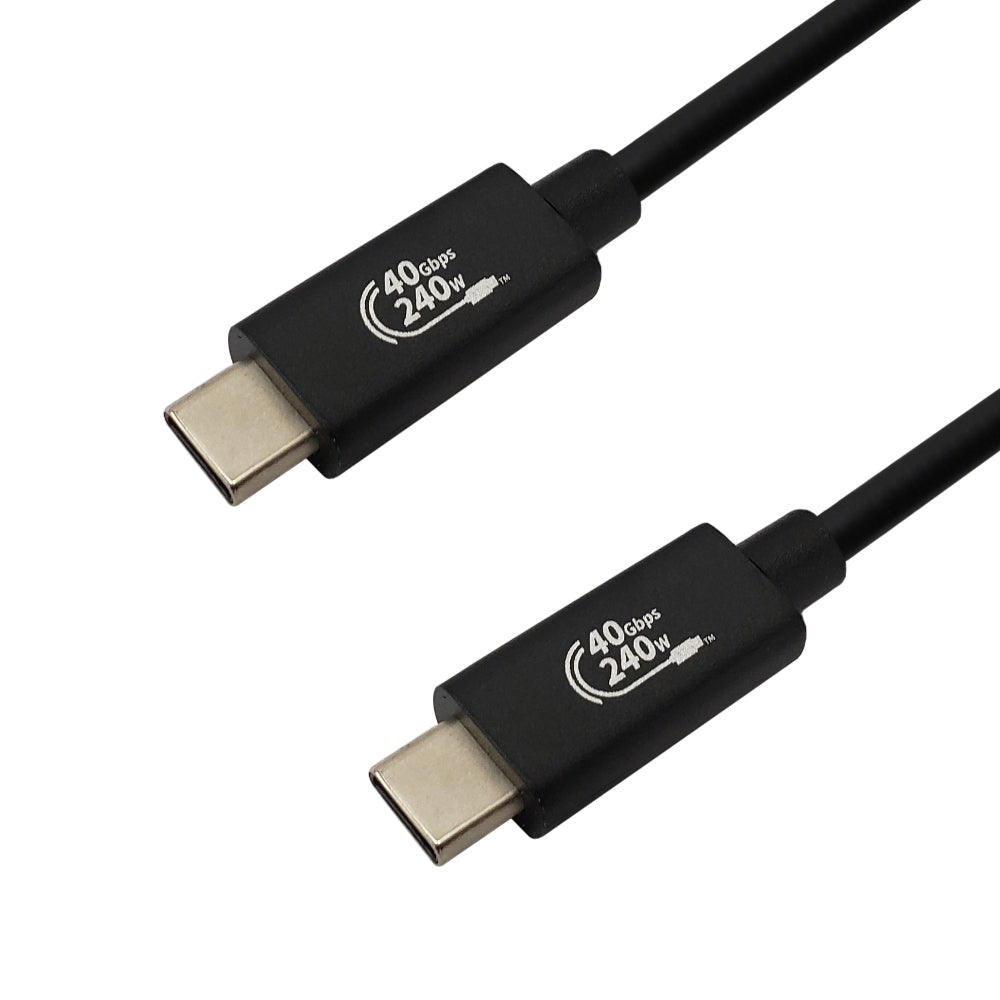

This USB 4 cable consists of a USB type-C male on both ends. It is capable of transferring data at 40Gbps/20Gbps and is typically used to connect USB4 peripherals as well as charge and sync USB Type-C mobile devices. USB4 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Nickel Plated |
| Cable Diameter | 5.0 mm |
| Jacket Material | ABS |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | USB 4 Type-C Male |
| Connector B | USB 4 Type-C Male |
| Performance | |
| Rating | USB 4 |
| Speed | 40 Gbps (1m) 20 Gbps (2m) |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 240W |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1m | 2m |
|---|---|
| 0.12 lbs | 0.17 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-400-1M | 1m/40G | 0.07 lb |
| USB-400-2M | 2m/20G | 0.1 lb |
