Description

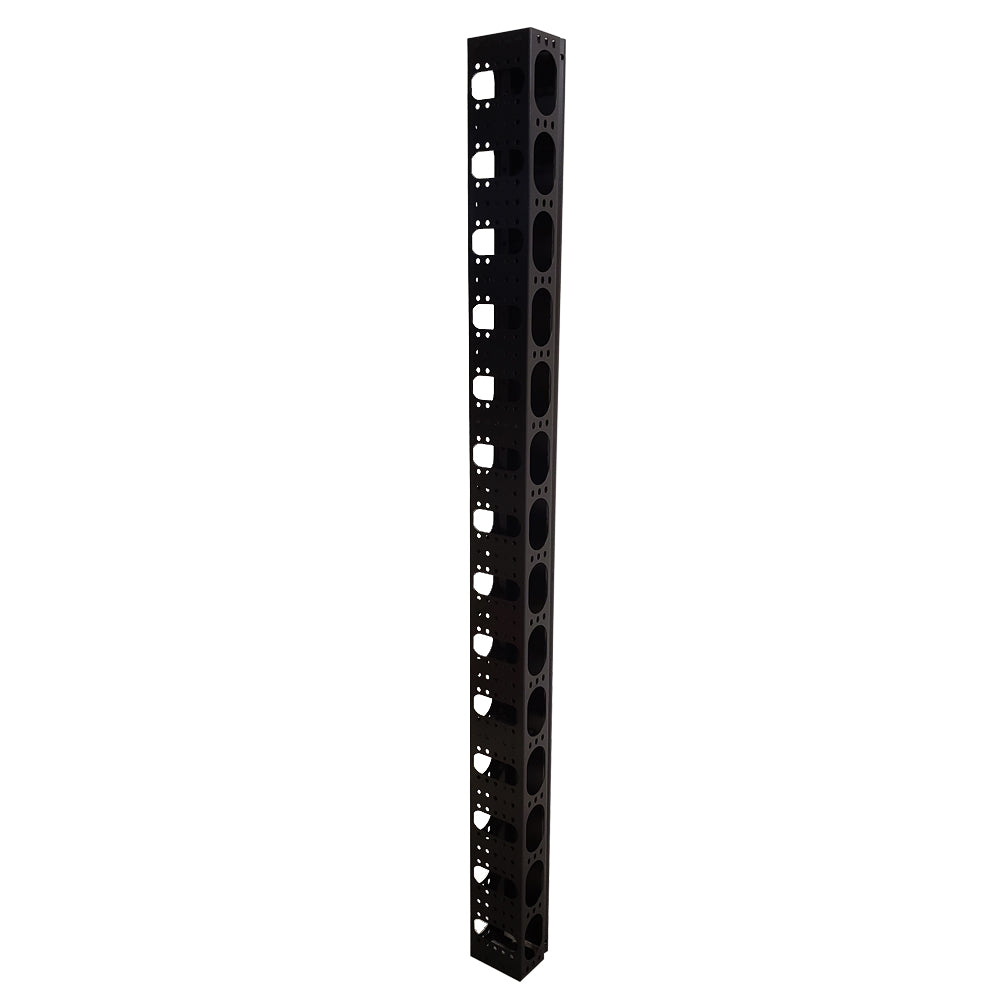

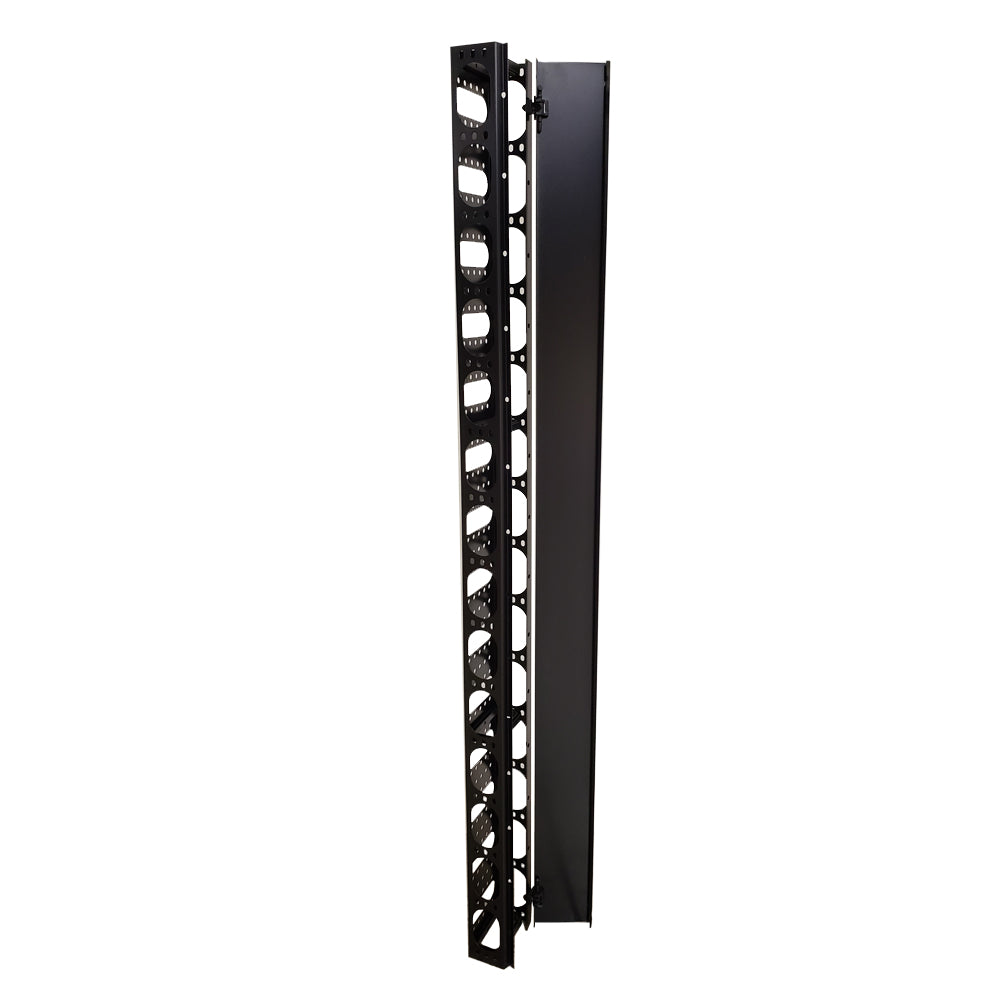

The vertical cable manager is 29U in height, has oval cable pass through openings and a hinged cover for easy access to cabling. It is typically used to organize cables running vertically on relay racks.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Management Type | Duct |
| Finish | Powder Coated |
| Material | 1.5 mm Thick Steel |
| Height in Units | 29U |
| Width | 3.7 inches [94.4mm] |
| Depth | 3.1 inches [78.6mm] |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Racks | RM-100 - Relay Rack 29U (56 inch) - Knock Down Style |
|
RM-110 - 2-Post Relay Rack - 19 inch 29U, 10-32 Tapped Rails |
|
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 6 Pcs - M6 Screws – Black 6 Pcs - Flange Nuts - Black |
| Product Weight | 9.4 lbs |
| Box Dimensions in Inches | 51 x 4.5 x 4 |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| RM-450-29U | 11.0 lb |
