Description

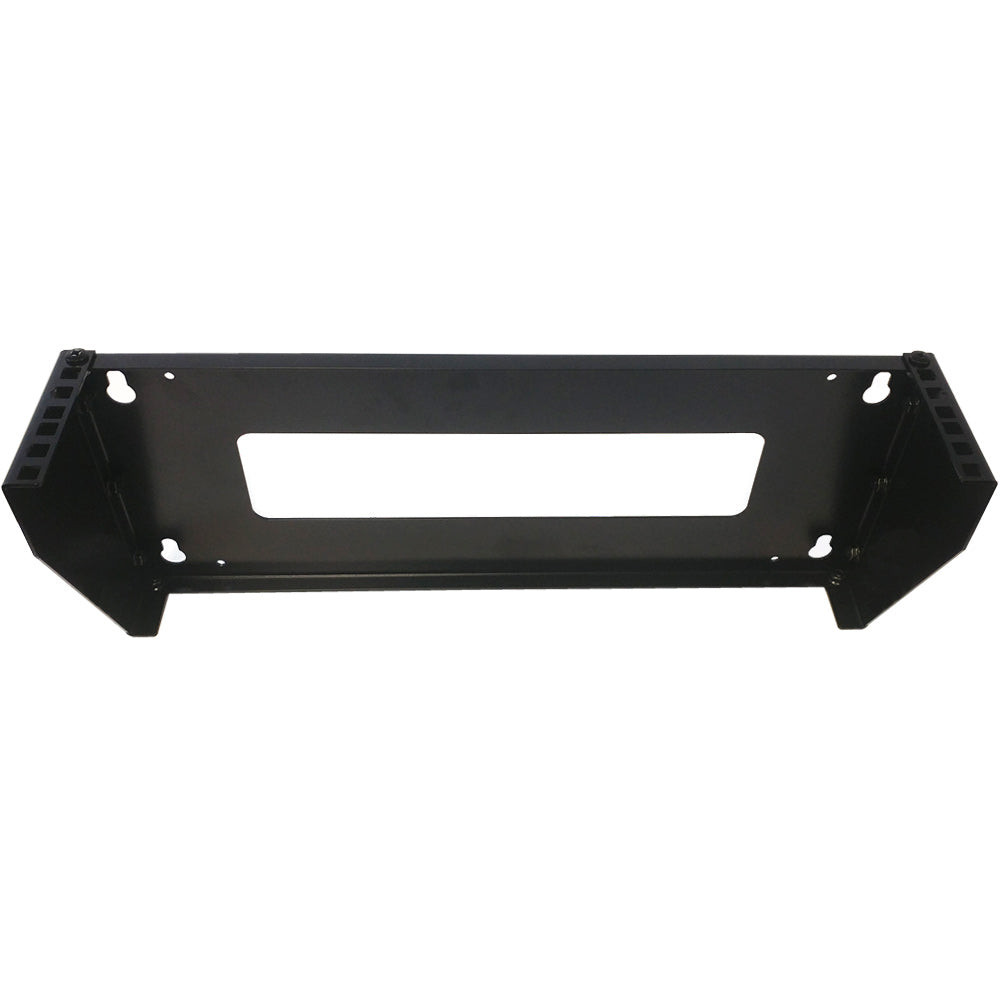

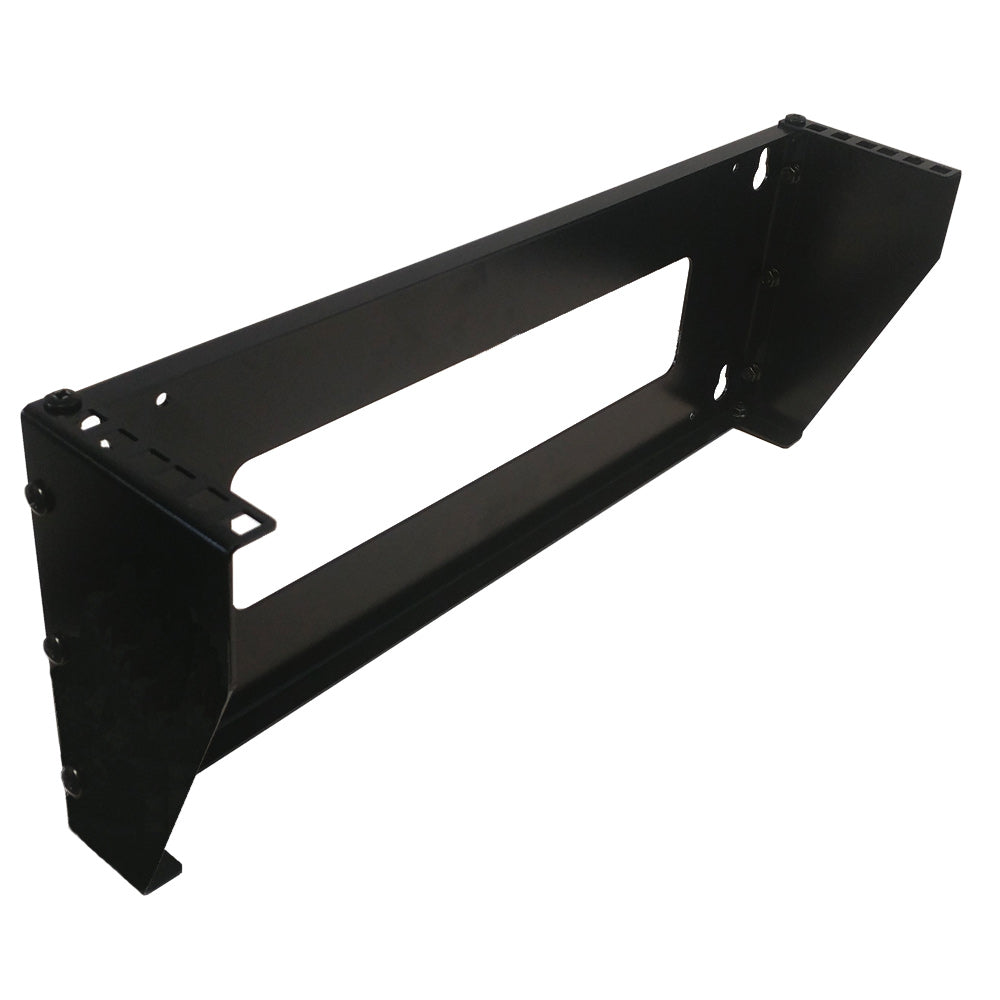

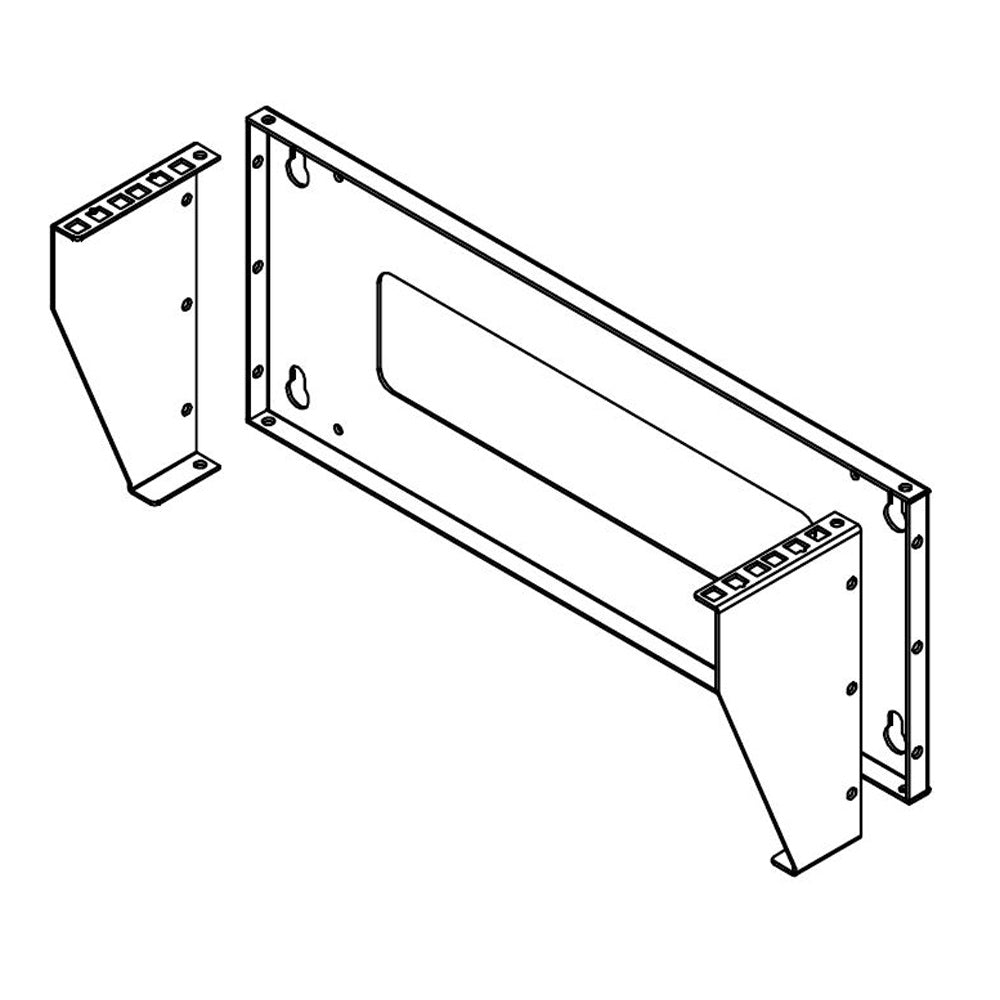

This vertical wall mount rack is 2U in depth. It is used for mounting 19" wide networking equipment vertically. It works well in a small office or home where space is limited.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mmSPCC Cold Rolled Steel |
| Depth in units | 2U |
| Height in inches | 7.8 inches [198mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Mounting Rail Thickness | 2.2mm |
| Mounting Width | 19 inches |
| Overall Dimensions | 7.8Hx 19.2W x 4.2D Inches |
| Rear Wire Access Hole | 1 (12.60x 2.95 inches) |
| Load Capacity | 66lbs(30kg) |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 5 lbs [2.26kg] |
| Content | |
| Included in Package | 1 -Vertical Wall Mount Rack |
| 10 - M6 Black Screws with Washers and Clip Nuts | |
| 10 -M6 Clip Nuts |
|
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-250-2U | 5.0 lb |
