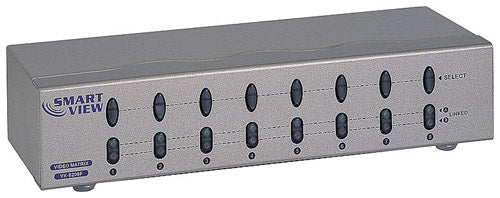

VGA Automatic Matrix (2 Inputs - 8 Outputs)

Video MatrixSKU: VX-8208F

Price:
Sale price$214.00 CAD
Stock:
In stock


Description

This VGA matrix enables you to select two VGA sources to eight VGA displays. It is typically used to connect VGA sources such as computers or laptops to VGA displays such as HDTVs, projectors or VGA monitors. Each output is independently controlled allowing you to select either input on any display. This matrix also boosts the VGA signal up to 65m (213ft).

Physical Characteristics
Color Silver
Housing Metal Enclosure
Power
Power Supply 7.5V AC 800mA
Connector(s)

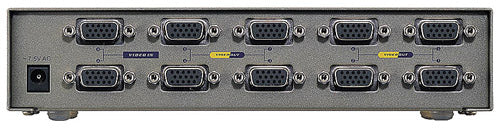

Input 2 - VGA Female
Output 8 - VGA Female
Performance
Video Resolution 1920 x 1440 Max @ 60Hz
Video Signal Boost 65m (213ft) max
Approvals
Power Adapter cTUVus
Environmental
RoHS Yes
Certification(s)
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Product Weight 1.5 lbs [0.8kg]
Package Weight 2.6 lbs [1.2kg]
Contents
Included in Package 1 - VGA Video Matrix
1 - AC to DC 7.5V 800mA Power Adapter
1 - Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VX-8208F 2.6 lb
