Description

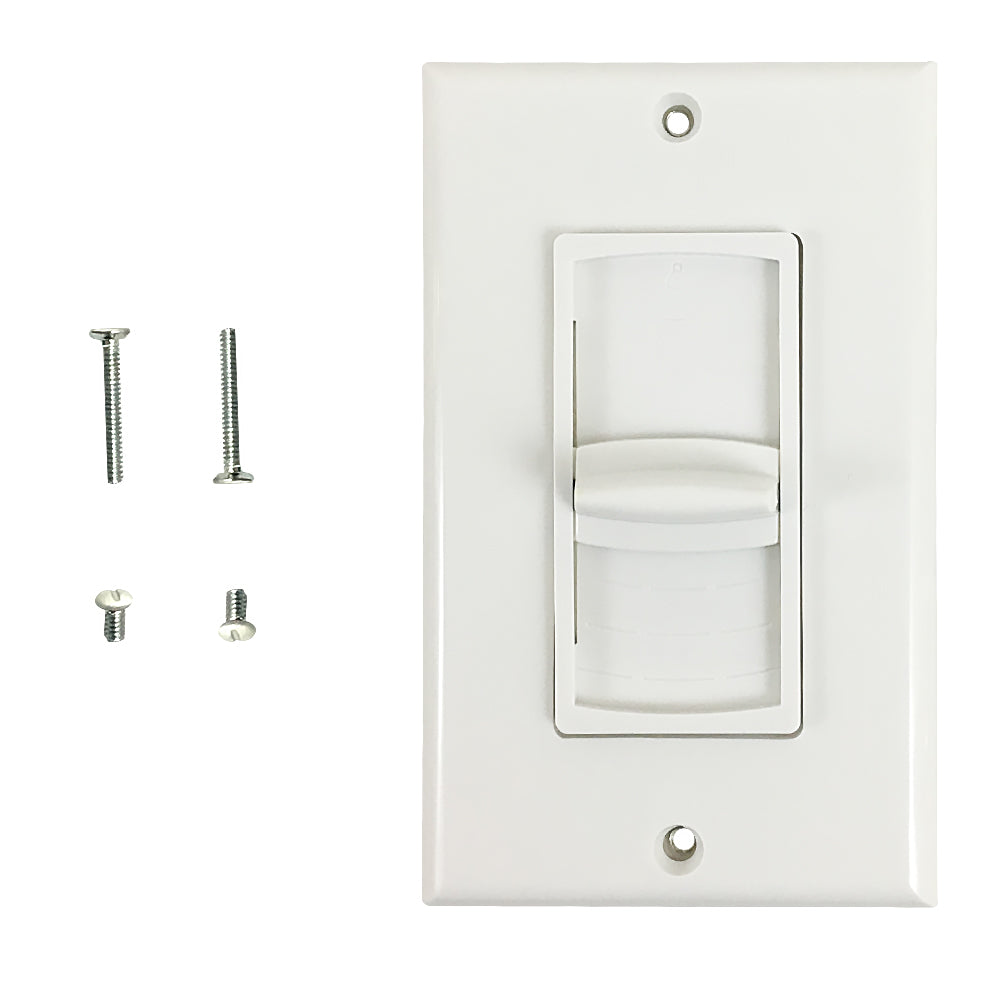

This decora volume control wall plate has a slide switch and can handle 100W max output. It is compatible with standard North American electrical openings, data clips or surface mount boxes. This volume control wall plate works in 4 ohm and 8 ohm applications.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | ABS |
| Power Handling | 100W Max |
| Frequency Response | 35Hz - 20kHz |
| Mounting Depth | 2.75" (69.85mm) |

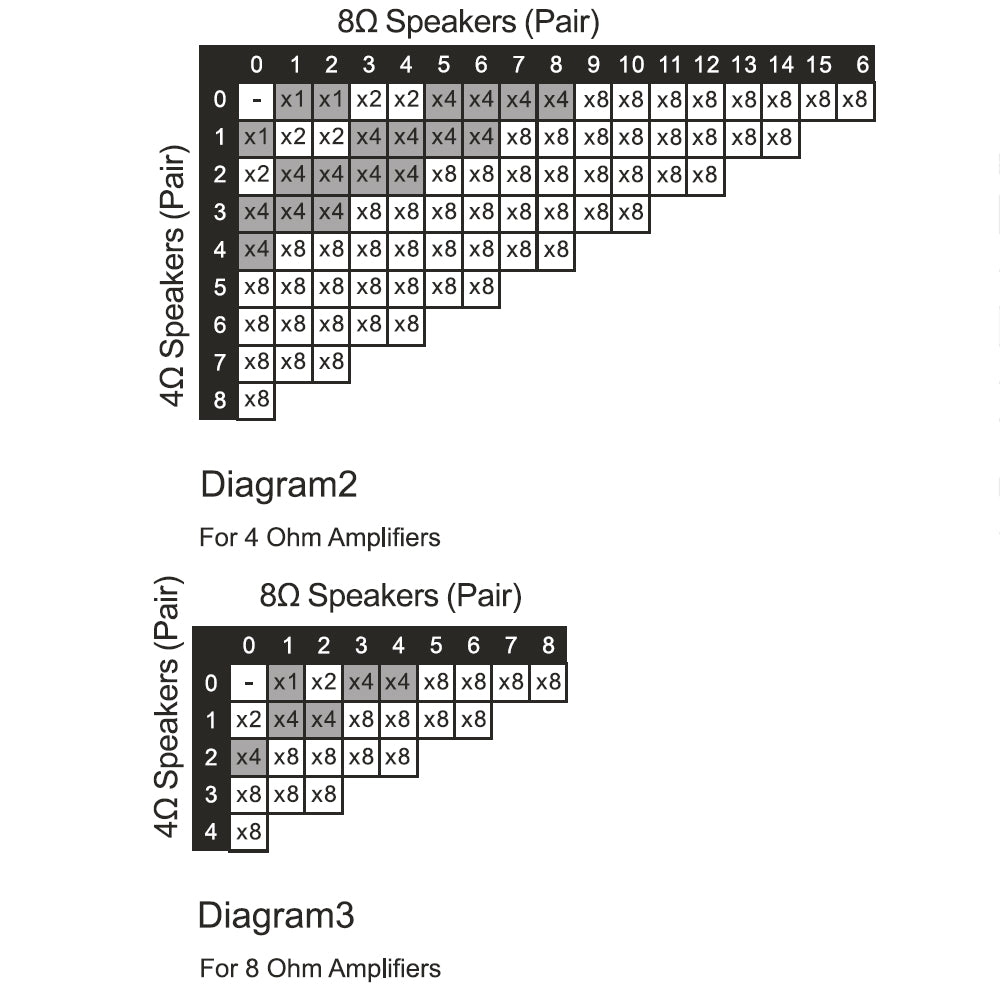

| Input Impedance | Configured to 1x, 2x, 4x, or 8x |
| Impedance Matching | 4ohm, 8ohm |
| Switch | Slide Switch |
| Plate Size | Single Gang |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.96 lbs [0.44 kg] |
| Product Dimensions | 114mm x 70mm x 96mm |
| Contents | |

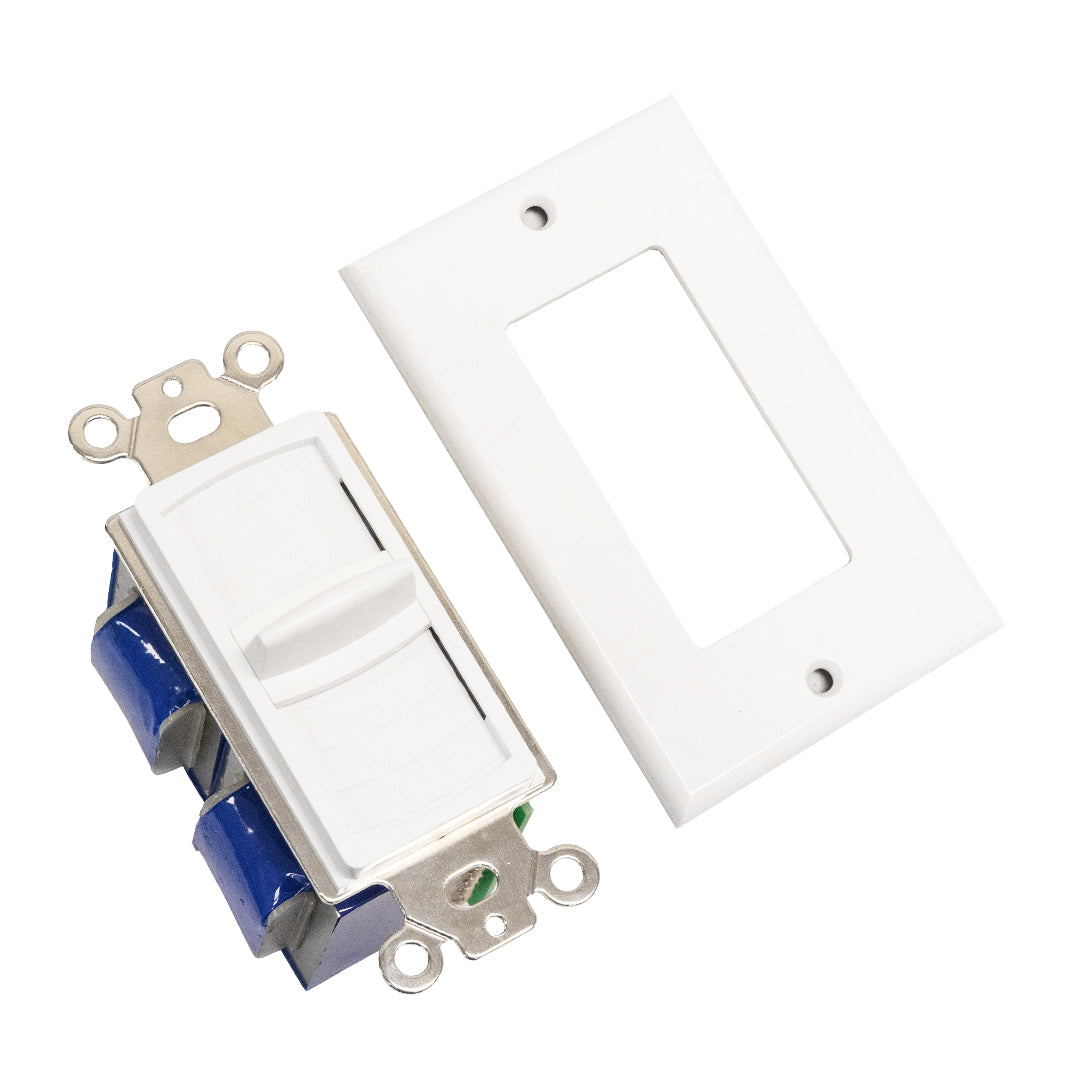

| Included in Package | 1 - Wall Plates Decora Cover |
| 1 - Volume Control | |
| 2 - Pairs of Screws | |
Spec Sheets
Product Weights
| SKU | Weight | |
| WPK-VL2S-100W | 0.96 lb |
