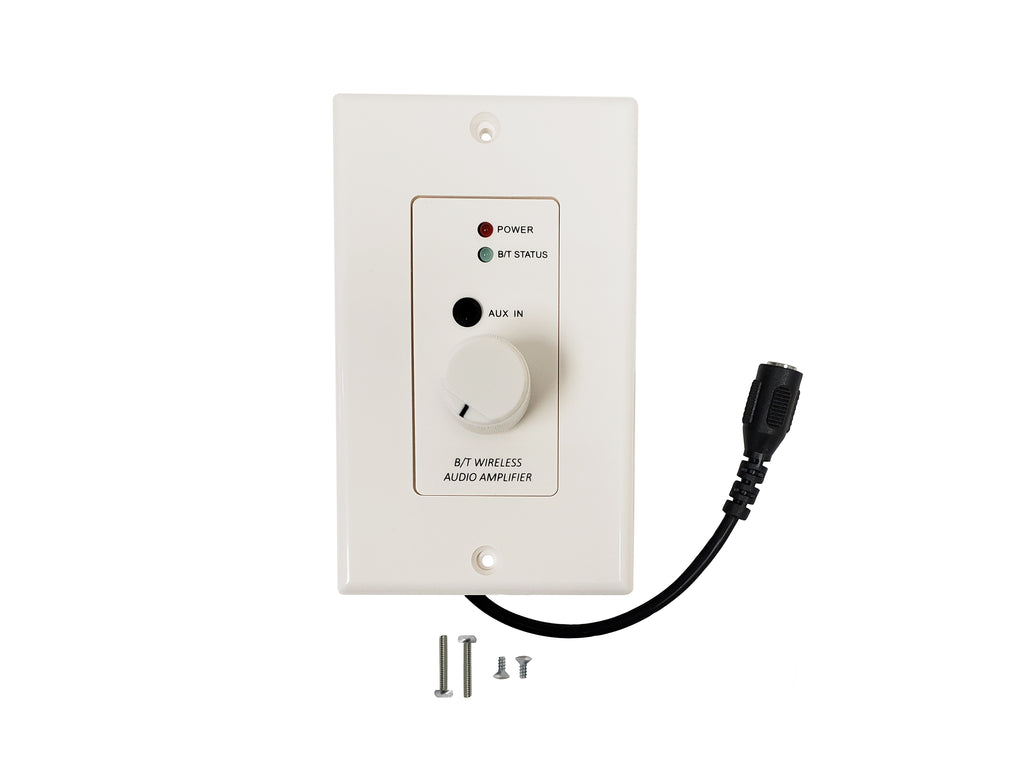

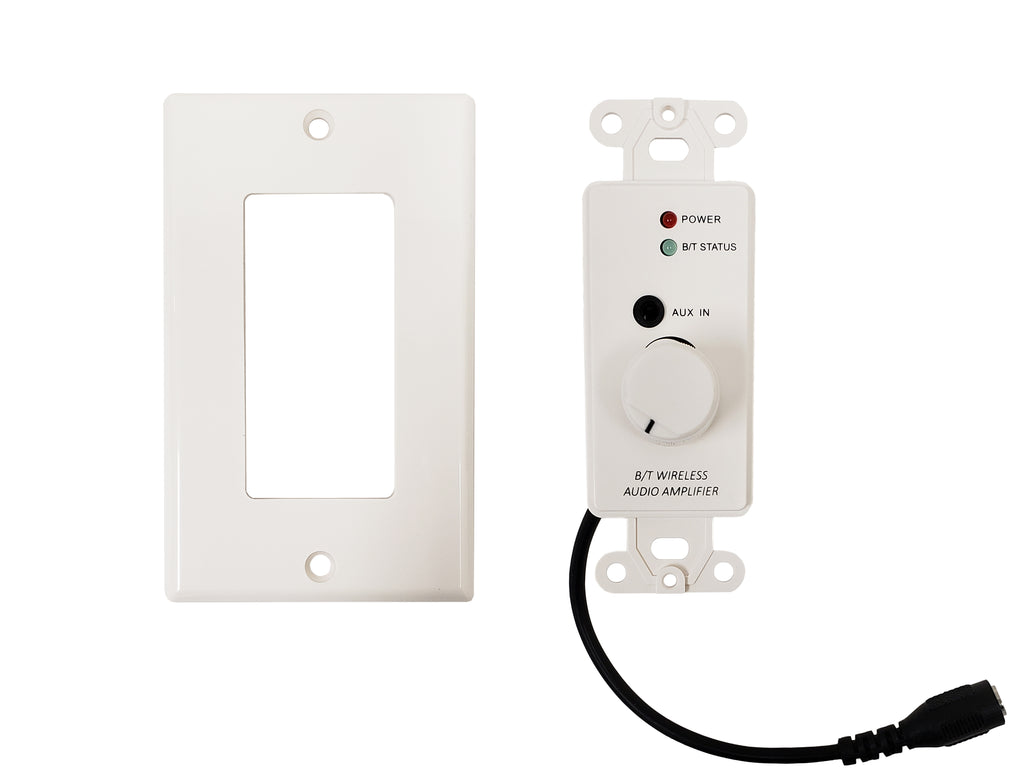

This wall plate kit consists of a Decora wall plate, amplifier and power supply. It is typically used to connect to a pair of in-wall/in-ceiling/wall-mounted speakers and control them via Bluetooth or plugging directly into them using a 3.5mm cable. They are typically used in small spaces such as bedrooms, bathrooms, garages or backyards.
| Physical Characteristics |
|---|
| Color |
White |
| Material |
ABS |
| Plate Size |
Single Gang |
| 3.5mm Cable Length |
6.5 Inches |
| Connector(s) |
|---|
| Audio Inputs |
Bluetooth Receiver or Stereo Audio Line Level
|
| Performance |
|---|
| Power Source |
24 VDC |
| Power Amplifier Type |
Stereo Class-D |
| Output Power |
24W (rms) per channel (@ RL=4 ohm) |
| Total Harmonic Distortion + Noise |
THD+N: 0.1% (@ RL=4 ohm, f = 1 kHz) |
| Minimum Load Resistance |
4 ohm |
| Audio Priority |
B/T > Aux In |
| Bluetooth Version |
B/T v4.2 compliant with apt-X |
| Bluetooth Receive Distance |
50 meters (open space) |
| Supports |
3 min link-lost time function
B/T automatically switches to pairing state if reconnecting fails
Speaker protection circuit |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.50 lbs [0.22 kg] |
| Product Dimensions |
4.5 L, 2.75 W, 1.85 D inches [11.5 L, 7 W, 4.7 D cm] |
| Contents |
|---|
| Included in Package |
1 - Wall Plate Kit |
|
1 - Pair of Screws |
