Description

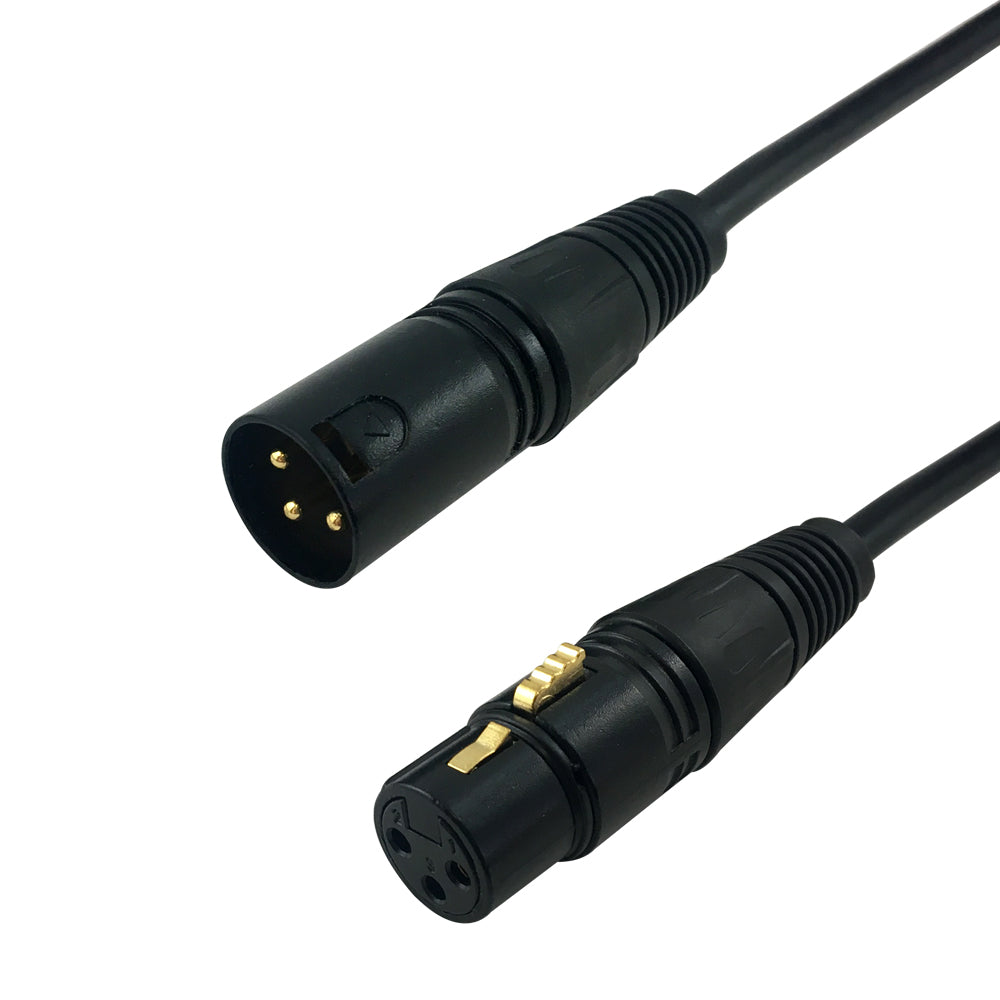

This stereo audio cable has a XLR male connection on one end and a XLR female connection on the other end. It is typically used to connect audio devices such as powered speakers to mixers or as a microphone cable.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 6.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 95% Copper Spiral |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | XLR Male |
| Connector B | XLR Female |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.07 lbs | 0.14 lbs | 0.28 lbs | 0.47 lbs | 0.71 lbs | 1.18 lbs | 1.65 lbs | 2.35 lbs | 3.53 lbs | 4.70 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| PAU-105-01.5 | 1.5ft | 0.07 lb |
| PAU-105-03 | 3ft | 0.15 lb |
| PAU-105-06 | 6ft | 0.21 lb |
| PAU-105-10 | 10ft | 0.33 lb |
| PAU-105-15 | 15ft | 0.5 lb |
| PAU-105-25 | 25ft | 0.77 lb |
| PAU-105-35 | 35ft | 1.1 lb |
| PAU-105-50 | 50ft | 1.55 lb |
| PAU-105-75 | 75ft | 2.26 lb |
| PAU-105-100 | 100ft | 3.0 lb |
