Overview

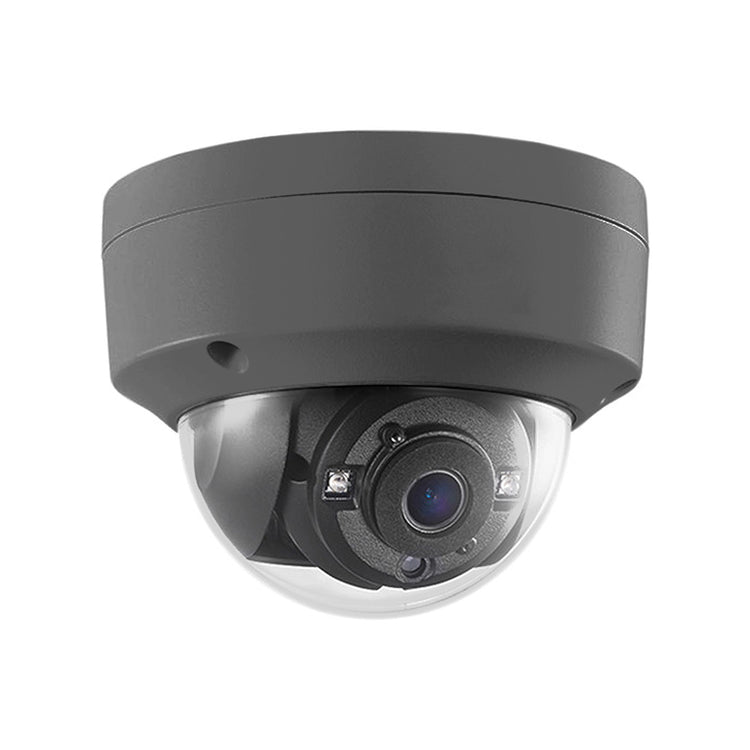

This 2MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 106° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080p resolution
- Ultra-Low Light
- EXIR 2.0 up to 100 ft (30 m) IR Range
- Smart IR
- Multiprotocol output: TVI/AHD/CVI/CVBS
- IP67 outdoor rated
- OSD menu
- 120dB True WDR, 3D DNR
- 12 VDC
Application
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
Specifications
| Camera | |
|---|---|
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | NTSC |
| Frame Rate | 1080p@30fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | Color: 0.005 lux @ (f/1.2, AGC on), 0 lux with IR |
| Shutter Time | 1/30 s to 1/50,000s |
| Lens | 2.8mm |
| Horizontal Field of View |
106° |
| Day & Night | IR cut filter |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0° to 340°, tilt: 0° to 75°, rotate: 0° to 360°
|
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) |
>120 dB |
| Menu | |
| AGC | Low/middle/high |
| WDR | Yes |
| Day and Night Mode | Smart/color/BW(Black and White) |
| Image Mode | Standard/high-sat |
| 3D DNR |
Level 1 to 9 |
| Backlight Compensation | Yes |
| Language | English |
| Functions | Brightness, sharpness, 3D DNR, mirror, smart IR |
| Interface | |

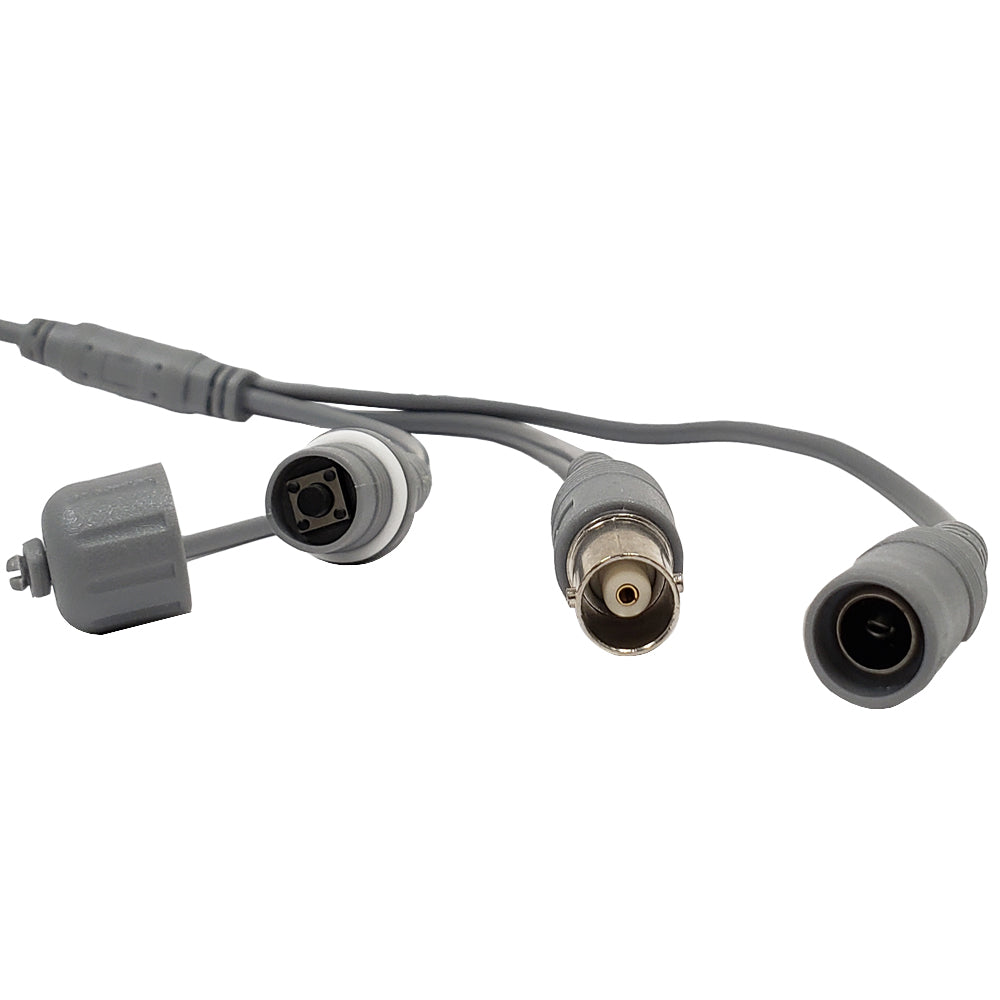

| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 20% |
| Power Consumption | Max. 4.6 W |
| Ingress Protection | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 100 ft (30 m) |
| Dimensions | Φ111 × 82.4(Φ4.37” × 3.24”) |
| Weight | Approximately 1.07 lbs (487 g) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Mounts
| CA-B2100-WH | Wall Mounting Bracket with Junction Box for Turret Cameras - White |
| CA-DS-1273ZJ-130-TRL-WH | Wall Mounting Bracket for Turret Cameras - White |
| CA-DS-1280ZJ-DM8-WH | Junction Box Mounting Bracket for Turret Cameras - White |
| CA-DS-1280ZJ-DM8-GY | Junction Box Mounting Bracket for Turret Cameras - Grey |
| CA-DS-1272ZJ-110-TRS-WH | Wall Mounting Bracket for Turret Camera - White |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| CA-AC334-OD-2WH | White | 3.53 lb |
| CA-AC334-OD-2GY | Grey | 3.53 lb |
