Overview

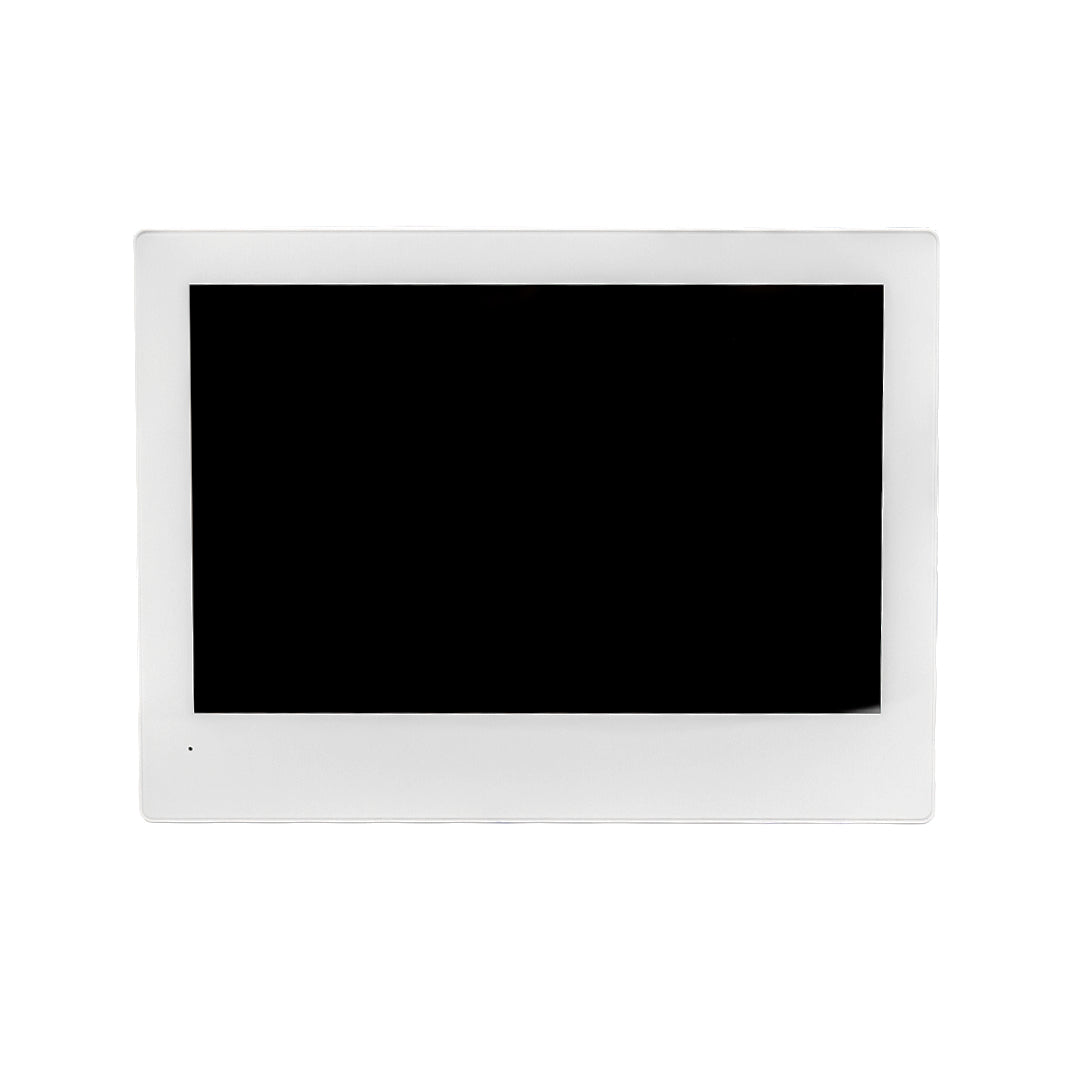

This video intercom indoor station featuring an 8" vibrant display with a resolution of 1280x800 with motion detection. It boasts Wi-Fi 802.11b/g/n connectivity and POE IEEE 802.3af power supply. With Linux OS, 128MB Flash, 512MB RAM, and support for Micro SD up to 128GB, this device ensures efficient performance. Enjoy clear audio with built-in omnidirectional microphones and loudspeakers with noise suppression and echo cancellation. Ideal for surveillance, it supports 1080P video capture and H.265 compression.
Features:
- HD screen 1280*800
- IP Video Intercom System
- Quad video recording
- Support 8 panels or cameras view
- Human detection
- Powerful smart mobile APP talk & unlock
- Support ONVIF IP cameras
- Monitoring of video door bell or CCTV from mobile APP
- Push notifications
- Support max.128GB SD Card & flash max.100pcs picture
- Lock control / Calendar / Alarm clock / No disturb
- Simple DVR motion detection
- Wi-Fi 802.11b/g/n
- POE IEEE 802.3af / AC100-240V 50/60Hz / DC15V/0.8A (Optional)
Specifications
| Physical Characteristics | |
|---|---|
| Color | White |
| Dimensions |
200 x 149 x 23.5mm |
| Display screen |
8″ colorful screen |
| Display Resolution |
1280x800 |
| Operating System |
Linux operation system |
| Operation Method |
Touch screen |
| Flash |
128MB |
| RAM | 512MB |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Standard | G.711U |
| Audio Compression Rate | 64Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Network Protocol | TCP/IP, RTSP, SIP |
| Built-in WiFi | 2.4G 802.11 b/g/n |
| Micro SD Card | Max to 128GB, SD 2.0 or lower version |
| Power Supply | POE IEEE 802.3af / AC100-240V 50/60Hz / DC15V/0.8A |
| Power Consumption | 8W(Max), 3W(Standby) |
| Ringbell | Normally Open (MAX AC/DC36V 4A) |
| Support Pixels | Mainstream: Max 5MP 25FPS camera Substream: Max 1MP 30FPS camera |
| Video Compression Standard | H.265 (default), H264 |
| Working Temperature | -10℃ ~ 50℃ |
| Working Humidity | 10% ~ 90% |
| Approvals | |
| CE | Yes |
| EAC | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
1.30 lbs [0.58kg] |
Compatible Products
| SAC-WDC100-WH | Video Doorbell Wireless Chime - 100dB - 433Mhz - WHITE |
| SAC-2VD100-BK | 2MP Video Doorbell - Ethernet/WiFi - 2-Way Talk - IR - IP65 |
Spec Sheets
Downloads
Tuya Smart iOS App
Compatible with iPhone, iPad and Apple Watch.
Product Weights
| SKU | Weight | |
| SAC-8SC100-WH | 1.3 lb |
