Description

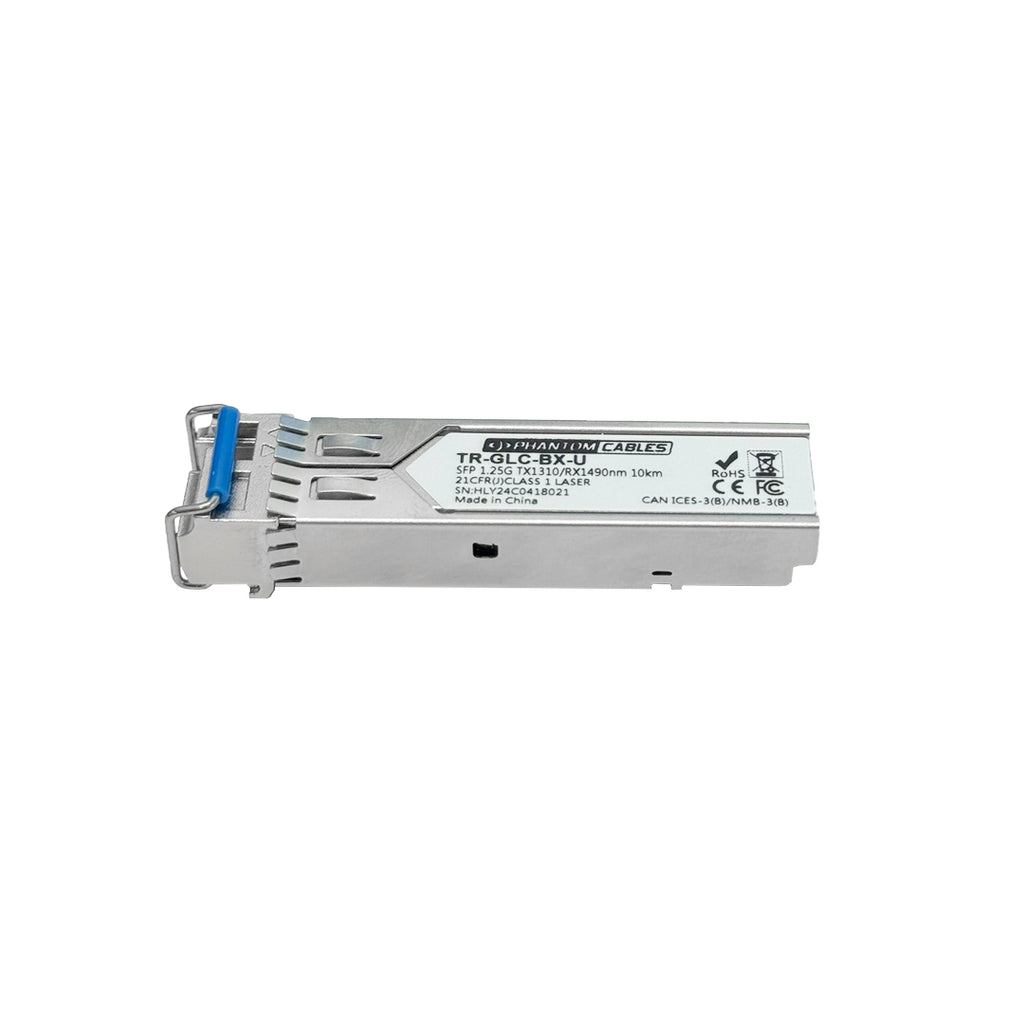

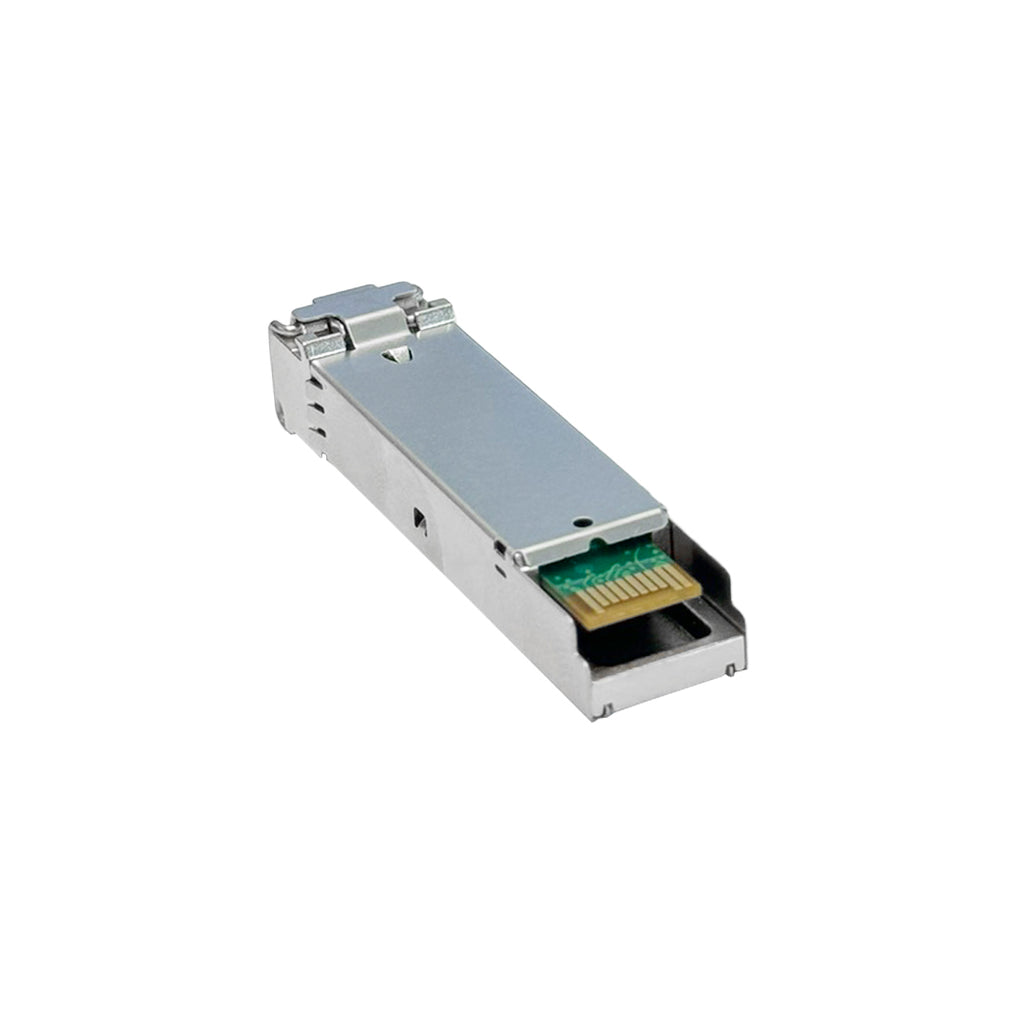

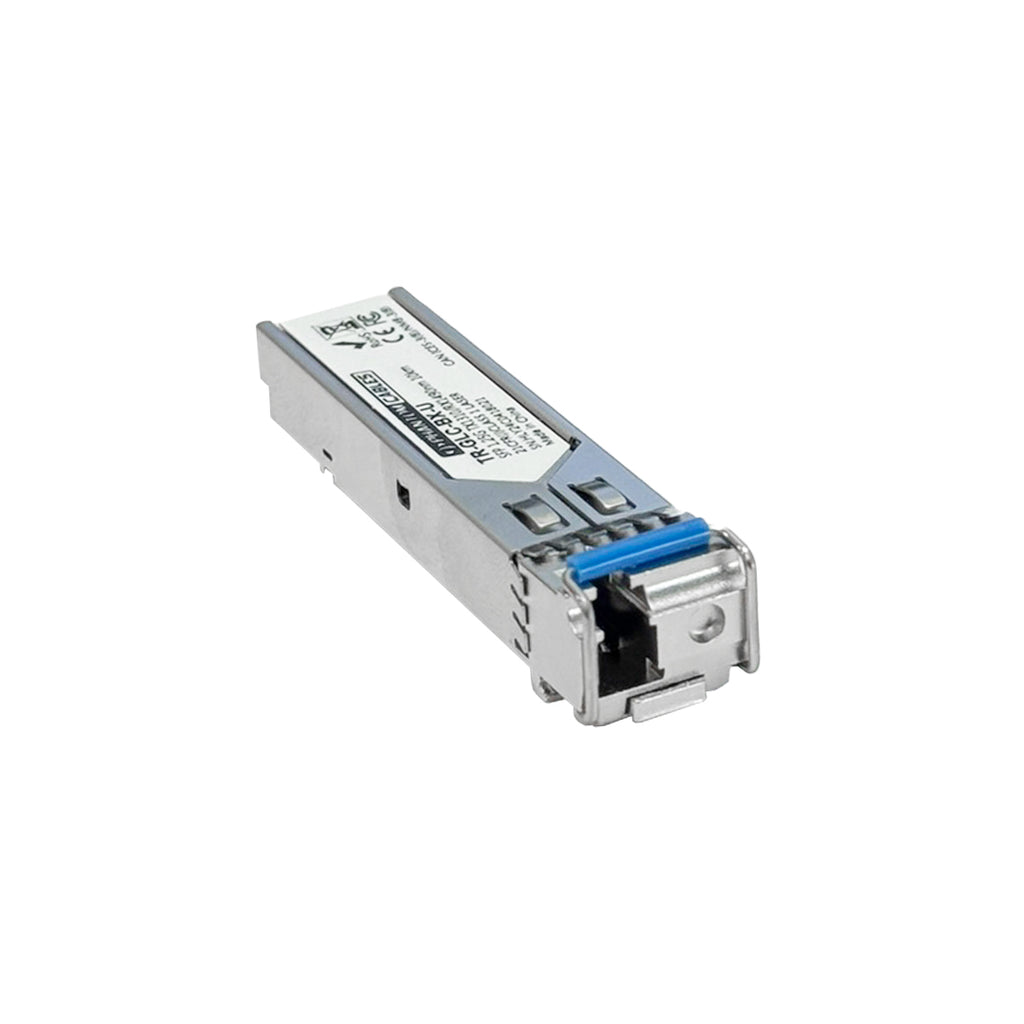

This is a bidirectional Enhanced Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over a simplex singlemode fiber cable. It is used in network devices with an SFP slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Features:
- Dual data-rate of 1.25Gbps/1.063Gbps operation
-
Two types：
A:1310nm FP Laser transmitter,1490nm PIN receiver
B:1490nm DFB Laser transmitter,1310nm PIN receiver
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- Compatible with SONET OC-24-LR-1
- +3.3V single power supply
Applications:
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Specifications
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Simplex | |
| Performance | ||
| Media Supported | 1000BASE-BX-U Singlemode Fiber | |
| Maximum Transmission Distance |
10km |
|
| Wave Length |
TX: 1310nm RX: 1490nm |
|
| DDM Support | Yes | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-GLC-BX-U | 0.02 lb |
