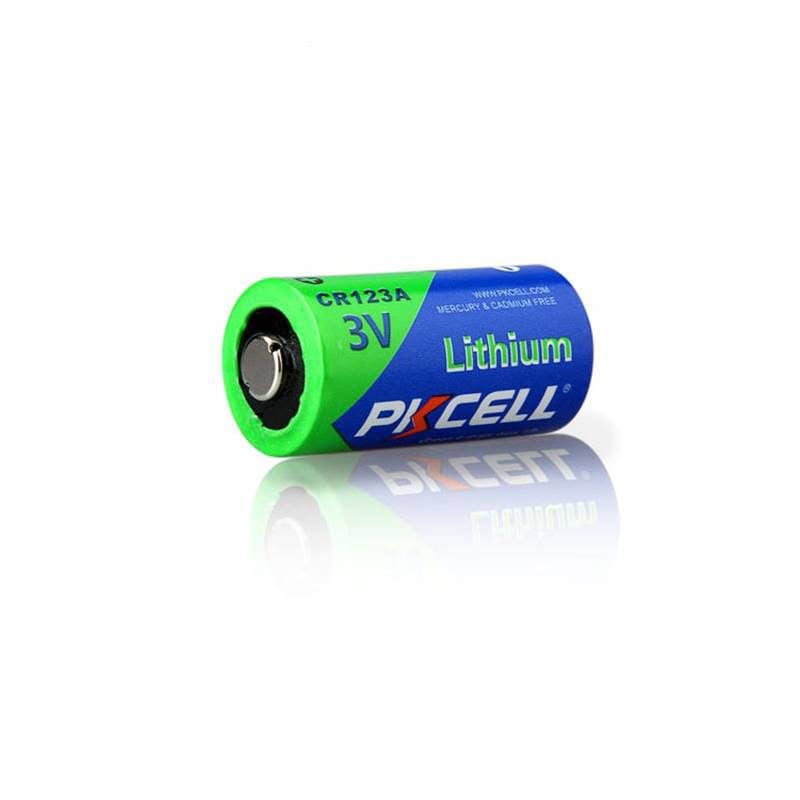

These 3V CR123A lithium manganese dioxide (Li-MnO₂) batteries offer high energy density and long-lasting performance, making them ideal for a wide range of applications. Designed with a metallic lithium cathode and a solid manganese dioxide anode, these batteries utilize a non-corrosive, non-toxic organic electrolyte for safe and efficient operation.
Features:
- High energy density
- High open circuit voltage
- Wide range of operating temperature
- Stable operating voltage and current
- Long operating time
-
Low self-discharge rate (less than 1% per year at 25ºC)
Application:
-
Memory backup: CMOS memory, RTC (real time clock) and computer backup
-
AMR utility meters: Electricity meter, gas meter and water meter
-
Wireless alarm sensors: Smoke alarm systems, temperature monitors
-
Remote monitor systems: GPS, sea buoys, lifejacket lights, life craft lights, cargo-locating systems
-
Automotive and electronics: Automotive security systems, tire-pressure monitoring systems
-
Electronics toll tags: Toll gates
-
Military electronics: Radio communication, night vision equipment, tracking and positioning systems
Physical Characteristics |
Type |
Cylindrical Primary Lithium (Energy) |
Chemical System |
Lithium Manganese Dioxide (Li-MnO₂) |
Standard Capacity Current |
1400mAH/1500mAh |
Continuous Discharge Current |
10mA to 2.0V at 20 ± 3°C |
Nominal Voltage |
3.0V |
Max Constant Current |
1500mA |
Max Pulse Current |
3000mA |
Operating Temperature |
-40°C to 85°C |
Typical Shelf life |
<1% per year at 25°C |
Approval/Certification |
IEC, SNI, BSCI, UL, ISO |
Yes |
Packaging Information |
Package Quantity |

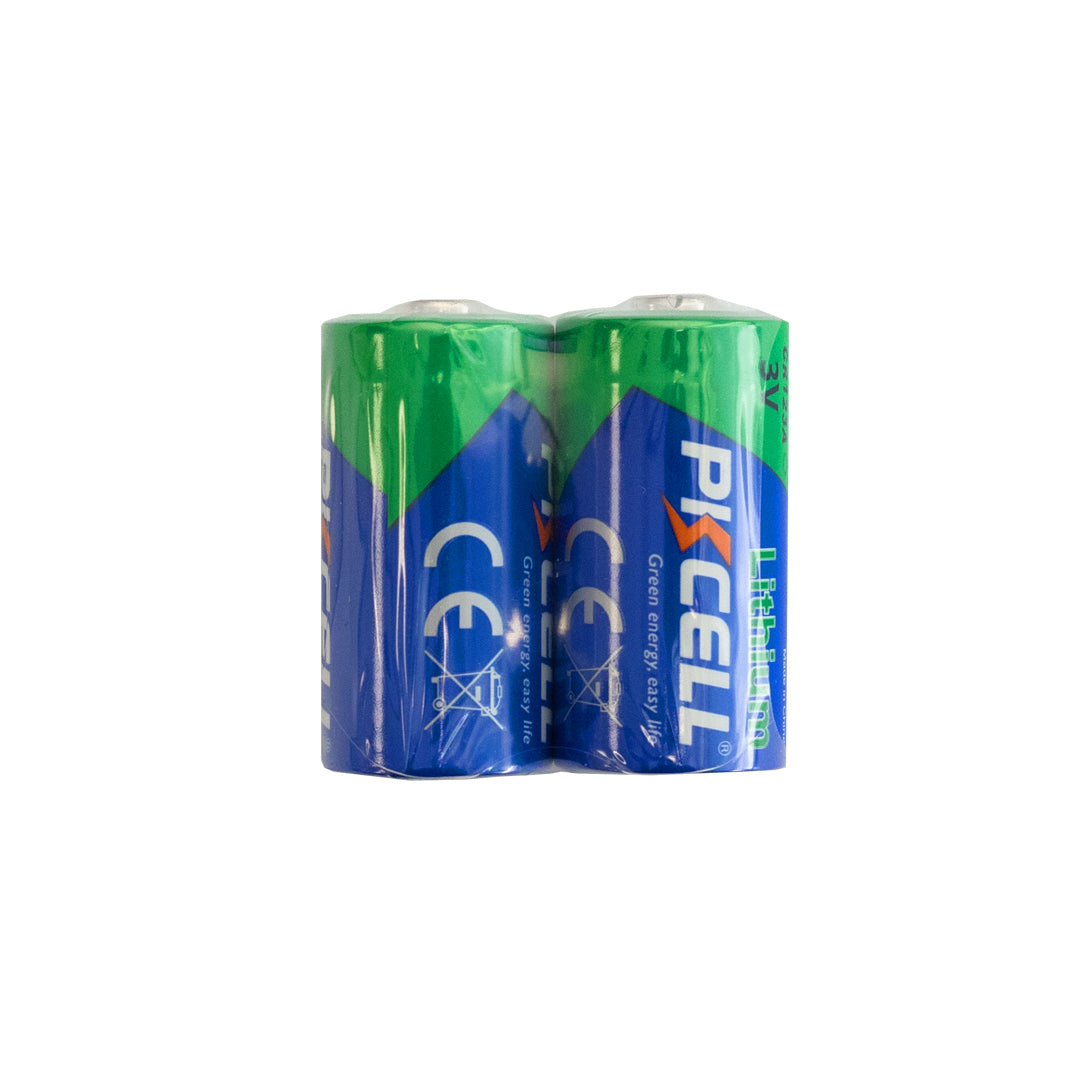

1 pack of 2 batteries |
Product Weight |
0.079 lbs |
