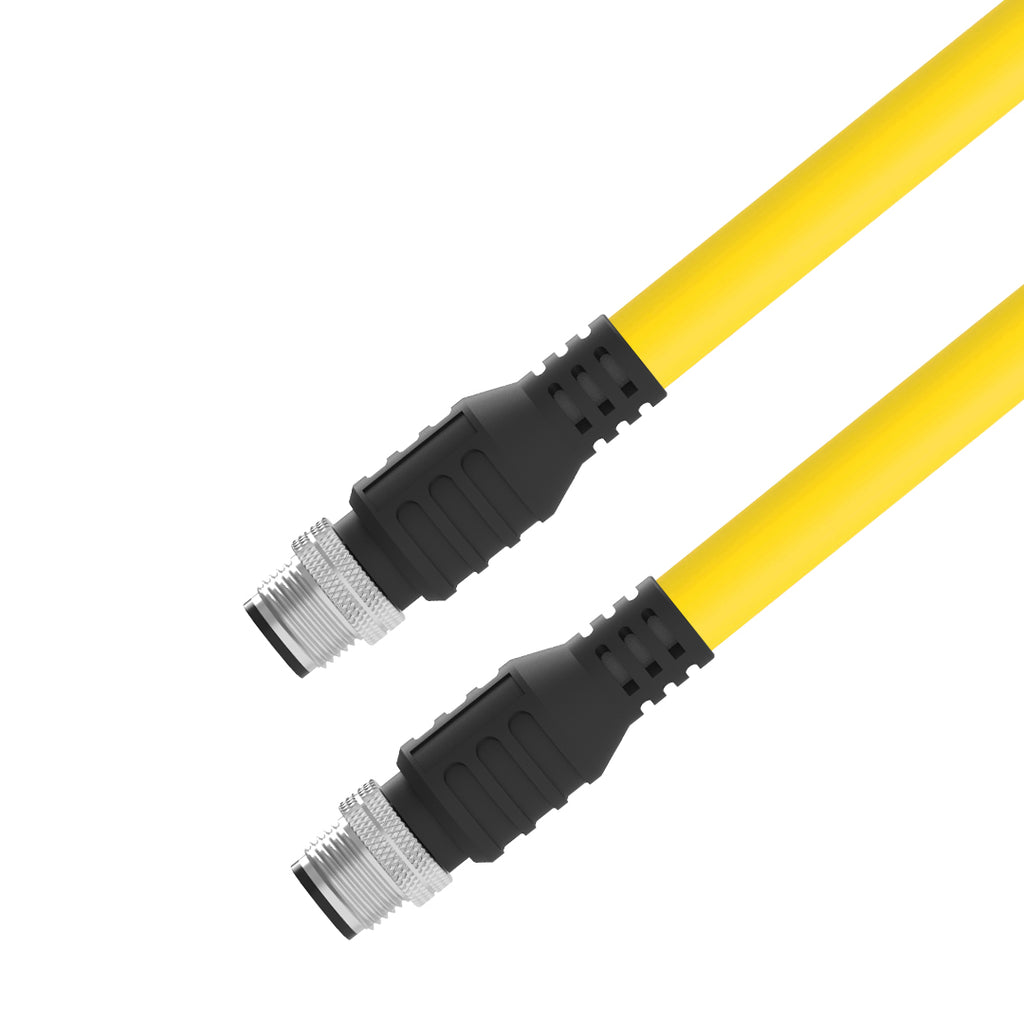

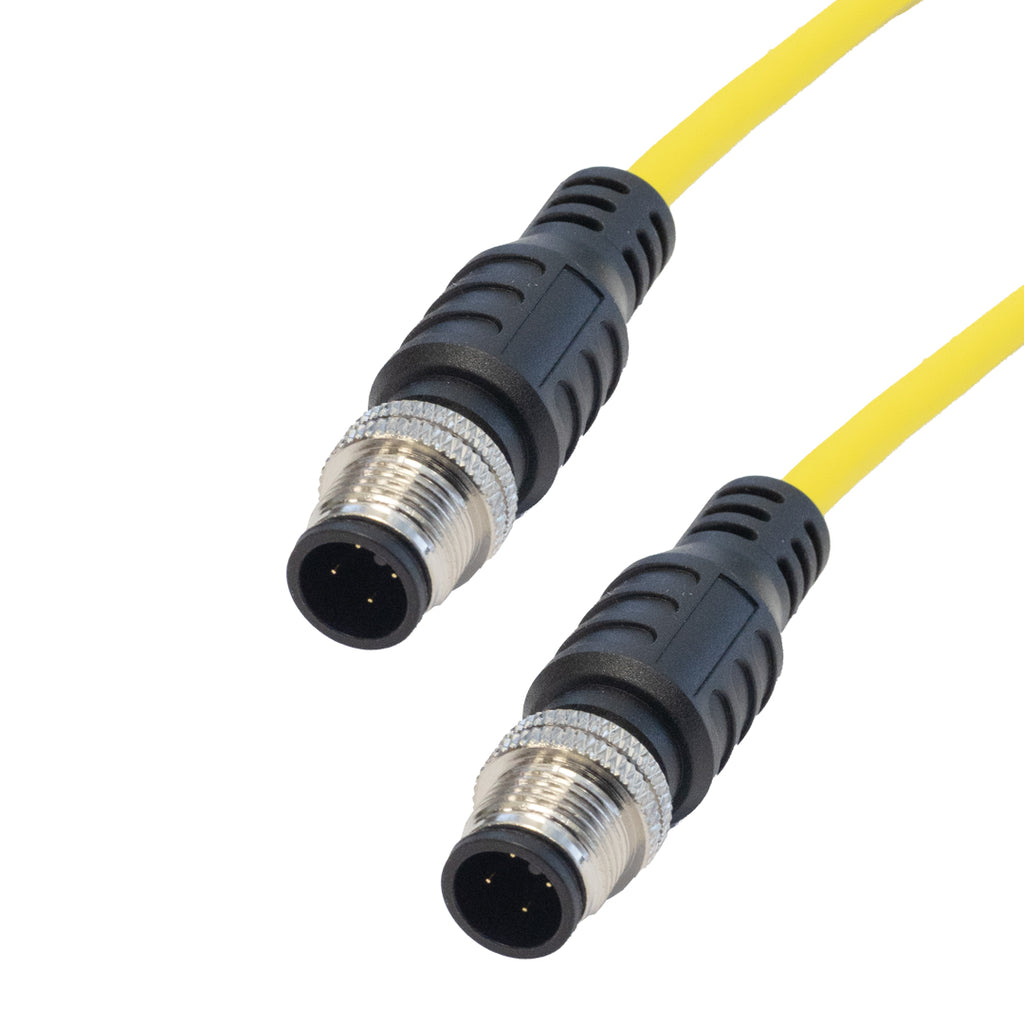

M12 4-pin A-Code Male to Male 75% Braid PUR Jacket Drag Chain Cable - Yellow

Overview

This M12 4-pin A-Code cable is designed for industrial automation.  It is suitable for use in drag chain application or systems with constant movement.  It is typically used to interconnect process controls with sensors, actuators, other input output modules.

Application:

Physical Characteristics
Color	Yellow
Cable Diameter	4.8±0.2mm
Wire Gauge	22AWG
Shielding	75% Tinned Copper Braided Shield
Conductor Structure	42 x 0.10mm
Sheath Material	PUR
Wire Cross Section	18.09mm2
Temperature Range (Mobile)	-25℃ to 70℃
Temperature (Fixed)	-25℃ to 80℃
Temperature Range (Cable: Fixed)	-40℃ to 80℃
Dragchain Capable	5 million times
Cable: Torsion Capable	2 million times
Bending Radius (Mobile)	min. 15 x OD
Bending Radius (Fixed)	min. 8 x OD
Operating Voltage	max. 60 VDC
Nominal Voltage	300 V
Contact Resistance	max. 30 mohm
Operating Current per Contact	max. 4A
Chemical Resistance	No
Flame Resistance	UL94
Oil Resistance	ASTM 1 oil, Mineral oils, limited to hydraulic oils
Acid and Alkali Resistance	No
Pollution Degree	3
Connector(s)	Connector A	Connector B
Connection	M12	M12
Angle Cable Outlet	0 Degree	0 Degree
Gender	Male	Male
Coding	A	A

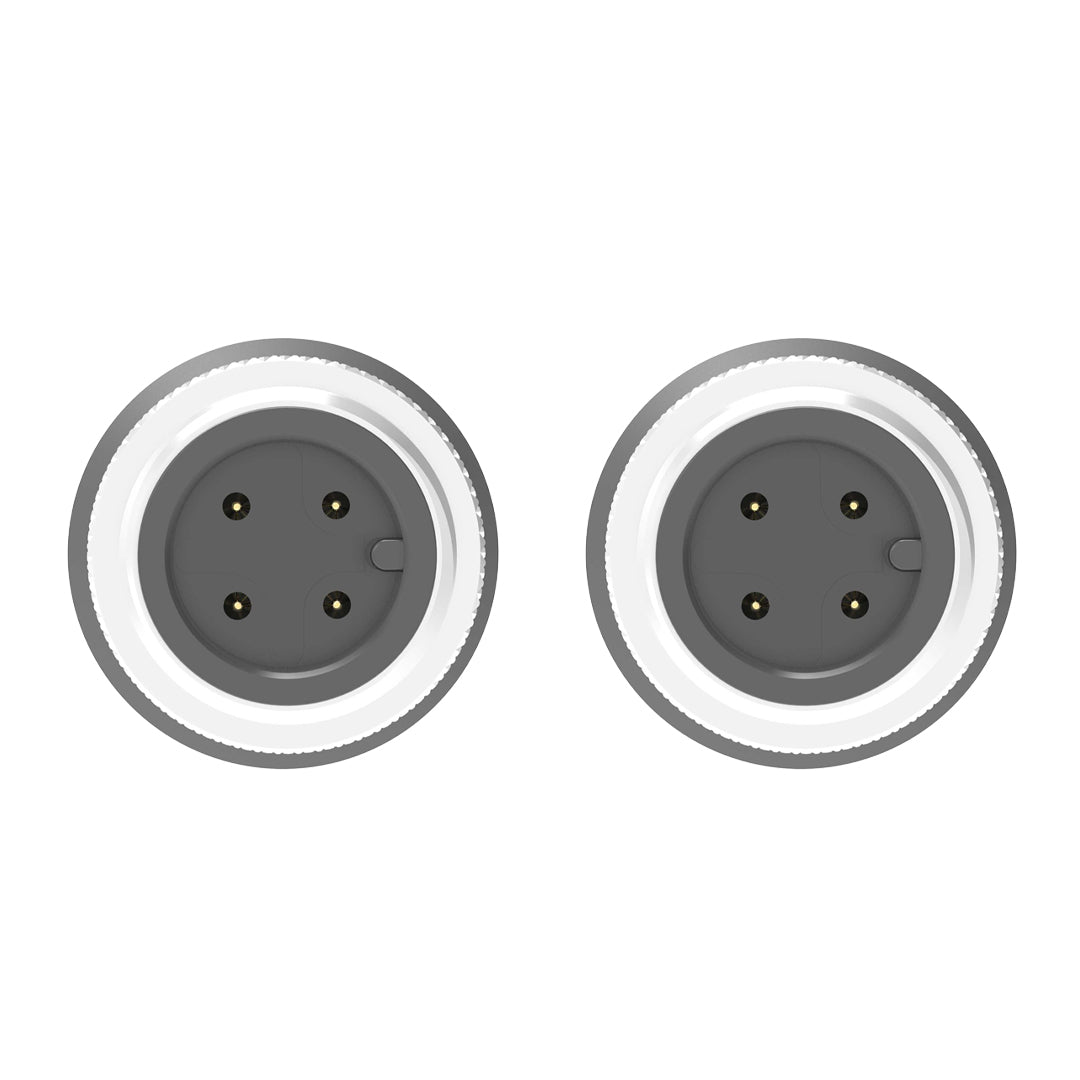

No. of Poles	4	4
Width Across Flats	SW13	SW13
Tightening Torque	0.6 Nm	0.6 Nm
Knurled Nut Material	Zinc-pressure die casting, Surface Ni	Zinc-pressure die casting, Surface Ni
Degree of Protection	IP66K, IP67	IP66K, IP67
Approvals/Environmental
CE, c(UL)us	Yes
RoHS	Yes
Silicon-Free	Yes - Cable
