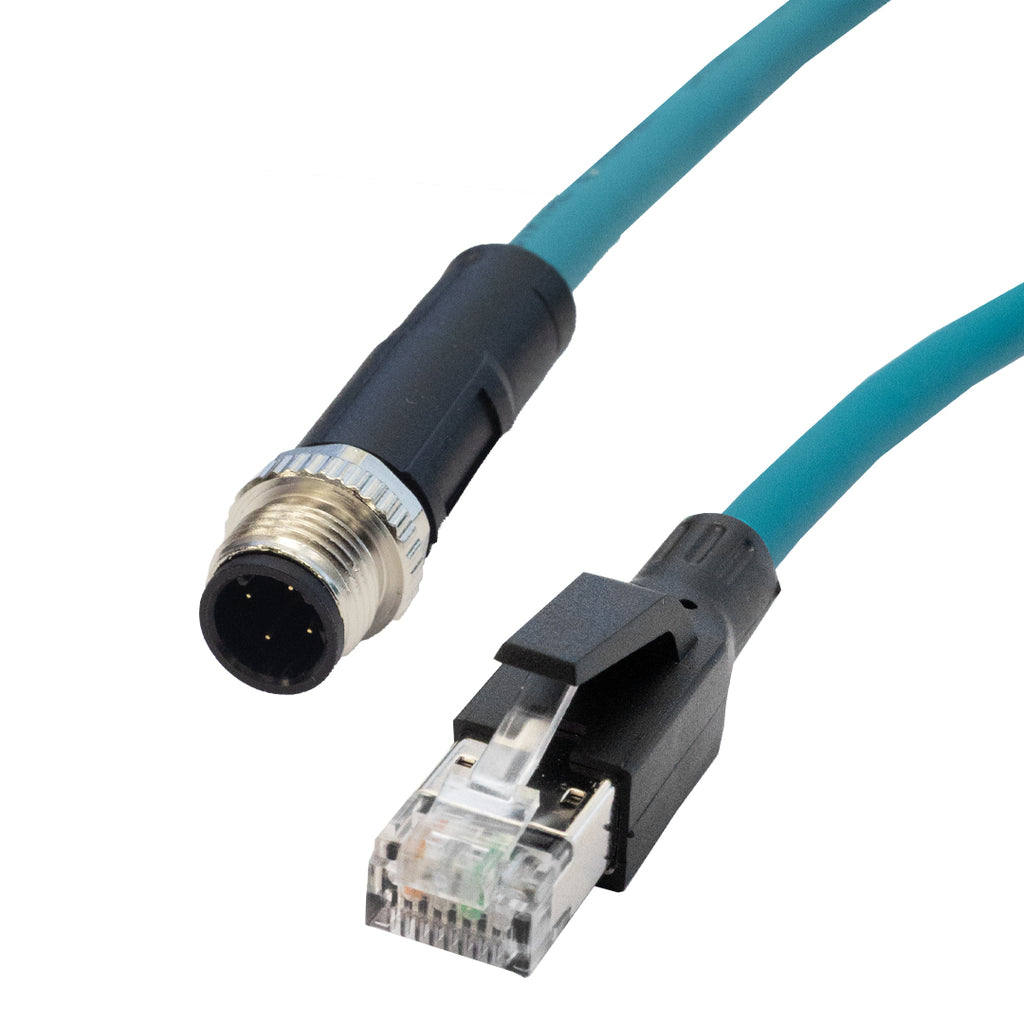

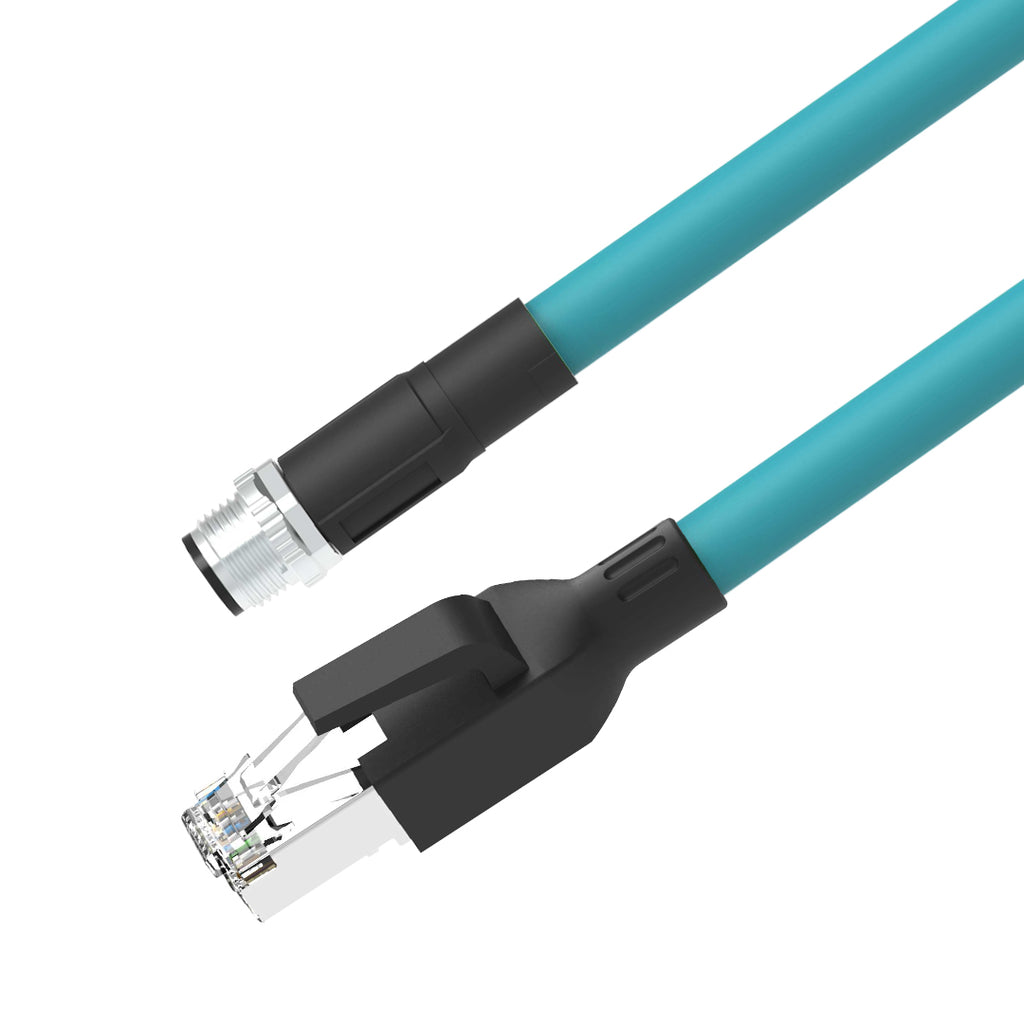

M12 4-pin D-Code Male to RJ45 Male CAT5E SF/UTP PUR Jacket Drag Chain Cable - TEAL

Overview

This M12 4-pin D-Code cable is designed for industrial automation with 100Mbps network protocols such as Ethernet/IP, EtherCAT, PROFINET, etc.  It is suitable for use in drag chain application or systems with constant movement.  It is typically used to interconnect process controls, robotics and automation systems.

Application:

Specifications:

Physical Characteristics
Color	Teal
Cable Diameter	6.5±0.2mm
Wire Gauge	24AWG
Shielding	SF/UTP (100% Overall Foil Shield & 75% Tinned Copper Braid)
Conductor Structure	19 x 0.12mm
Sheath Material	PUR
Wire Cross Section	33.2mm2
Temperature Range (Mobile)	-25℃ to 70℃
Temperature (Fixed)	-25℃ to 80℃
Temperature Range (Cable: Fixed)	-40℃ to 80℃
Dragchain Capable	5 million times
Cable: Torsion Capable	2 million times
Bending Radius (Mobile)	min. 15 x OD
Bending Radius (Fixed)	min. 8 x OD
Operating Voltage	max. 60 VDC
Nominal Voltage	300 V
Contact Resistance	max. 30 mohm
Operating Current per Contact	max. 4A
Chemical Resistance	No
Flame Resistance	UL94
Oil Resistance	ASTM 1 oil, Mineral oils, limited to hydraulic oils
Acid and Alkali Resistance	No
Pollution Degree	3

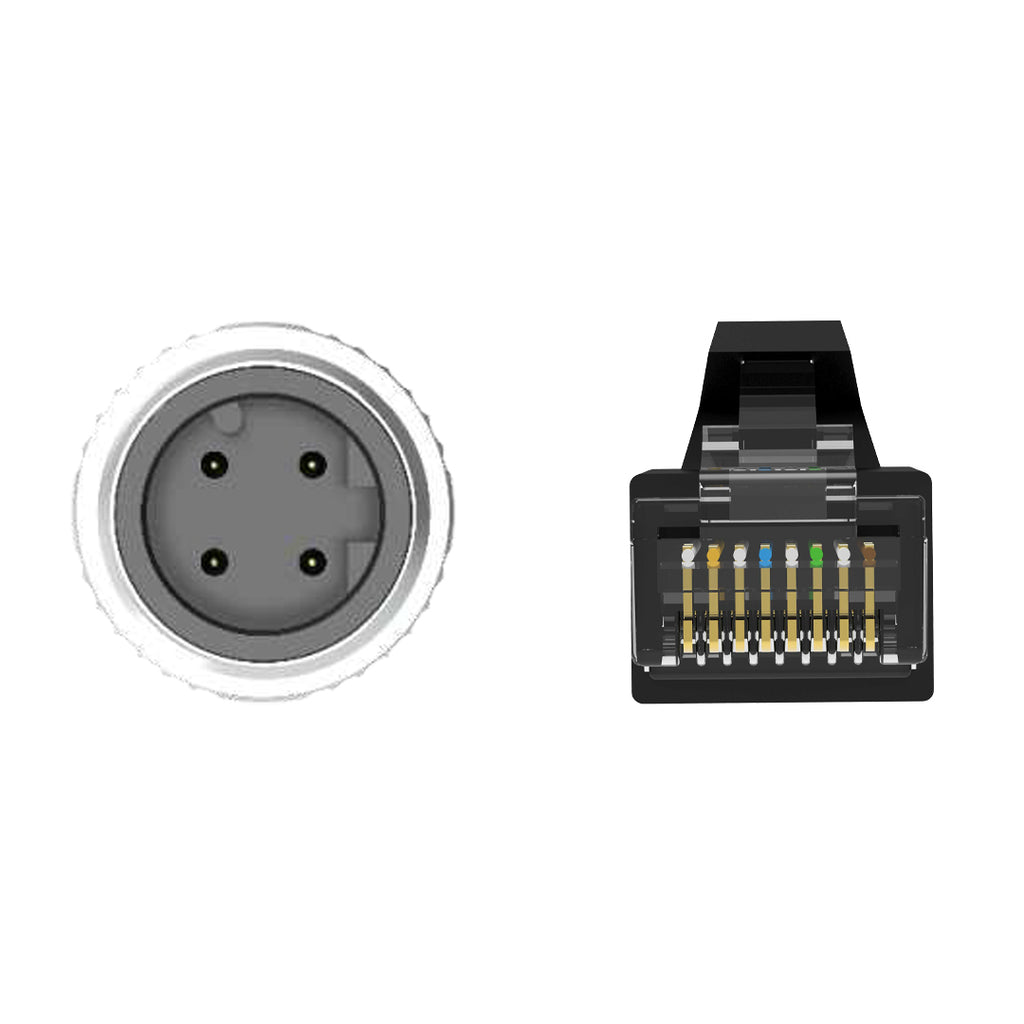

Connector(s)	Connector A	Connector B
Connection	M12	RJ45
Angle Cable Outlet	0 Degree	0 Degree
Gender	Male	Male
Coding	D	N/A
No. of Poles	4	8P4C
Width Across Flats	SW13	-
Tightening Torque	0.6 Nm	-
Knurled Nut Material	Zinc-pressure die casting, Surface Ni	-
Degree of Protection	IP66K, IP67	IP20
Approvals/Environmental
CE, c(UL)us	Yes
RoHS	Yes
Silicon-free	Yes - Cable
