Description

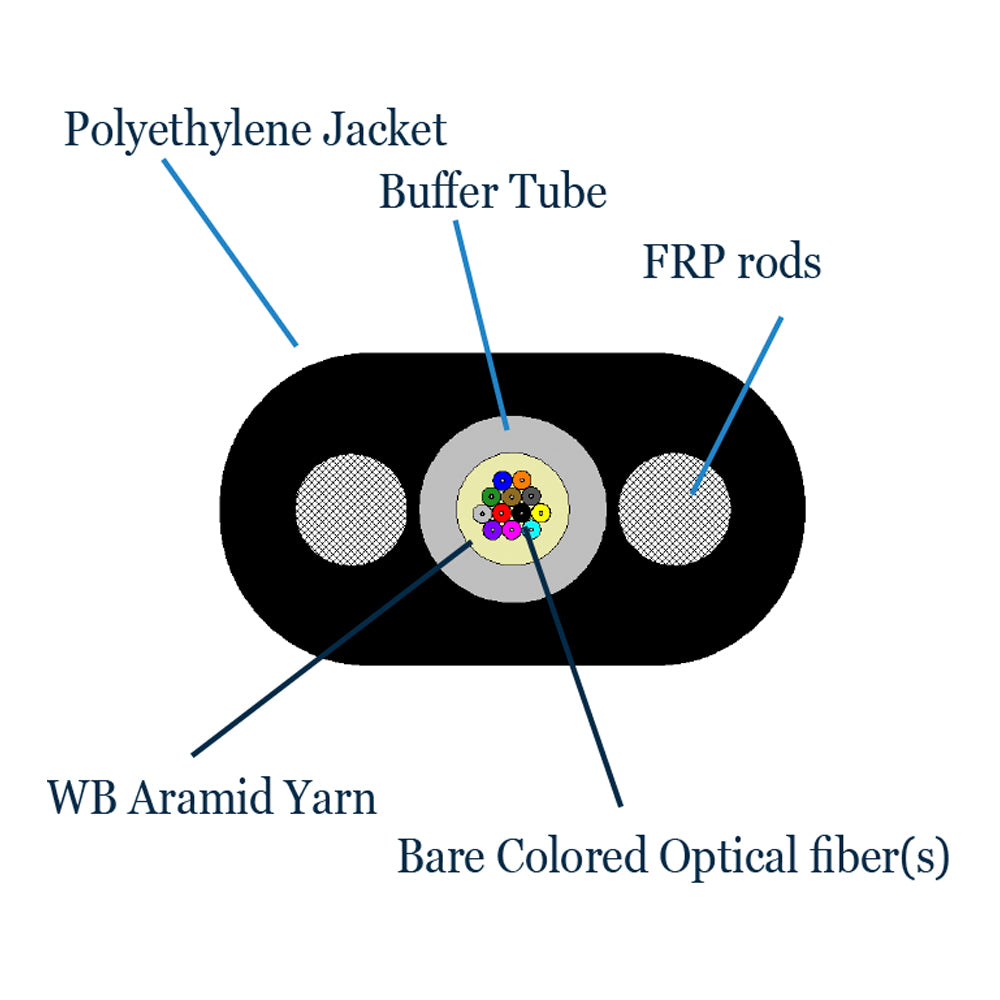

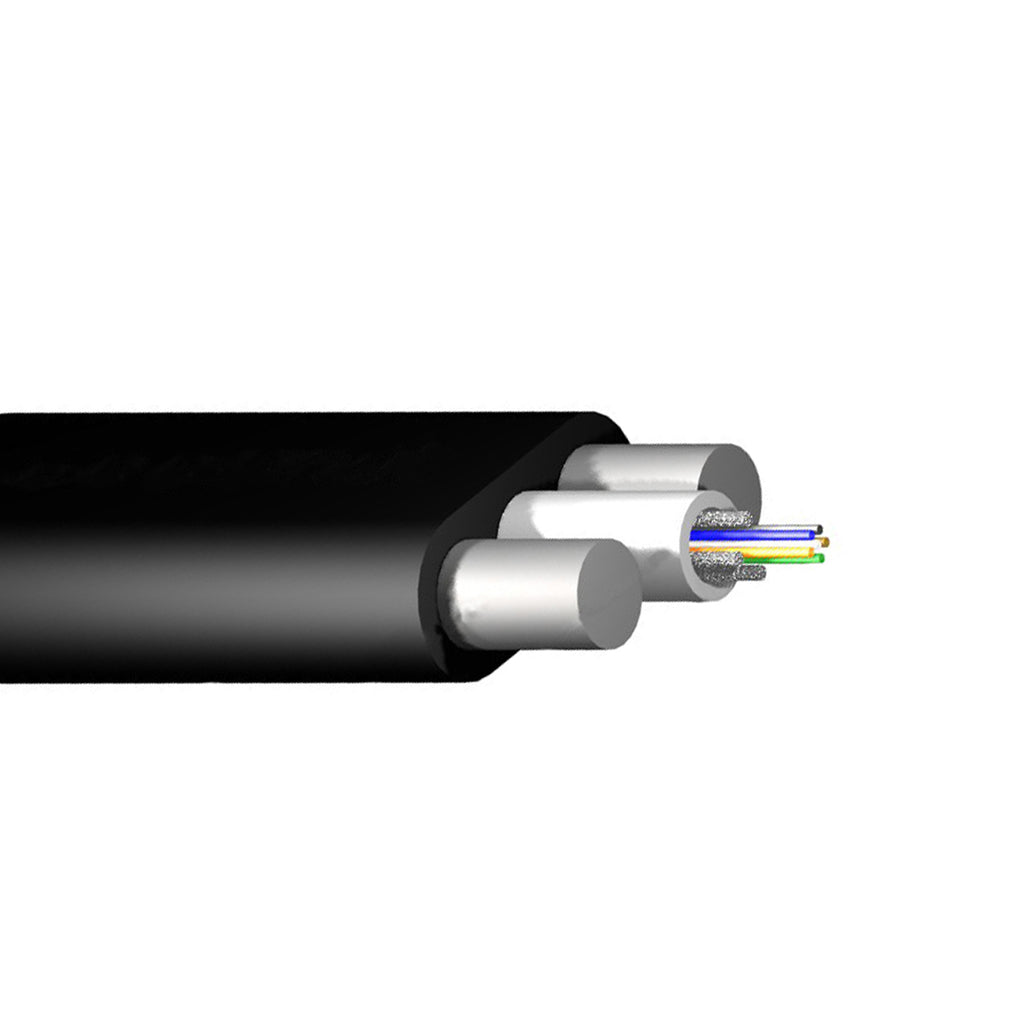

This bulk OS2 singlemode fiber cable is outside plant drop cable with a UV resistant polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self/supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 Singlemode 9 Micron Outdoor Dielectric Dry Flat Drop Cable |
| Core Size | 9/125 |
| Fiber Count | 6-Strand |
| Outer Jacket Material | UV Resistant Polyethylene |
| Dielectric Strength Member | Fiberglass Reinforced Plastic (FRP) Diameter: 1.5mm x 2 |
| Central Tube | Polybutylene Terephthalate (PBT) Diameter: 2.5mm |
| Nominal Width/Thickness | 8.0/4.5mm |
| Bend Radius | 16cm |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Pull strength (operational) | 300lbs |
| Pull strength (installation) | 1000lbs |
| Maximum unsupported span | 124ft with 1% sag in heavy load zone |
| Performance | |
| Attenuation (Maximum) | 0.4dB/km @1550nm |
| Numerical Aperture | 0.14 |
| Mode-Field Diameter[1310/1550nm] | 9.2/10.4um |
| Certification(s) | |
| EU |
Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | South Korea |
